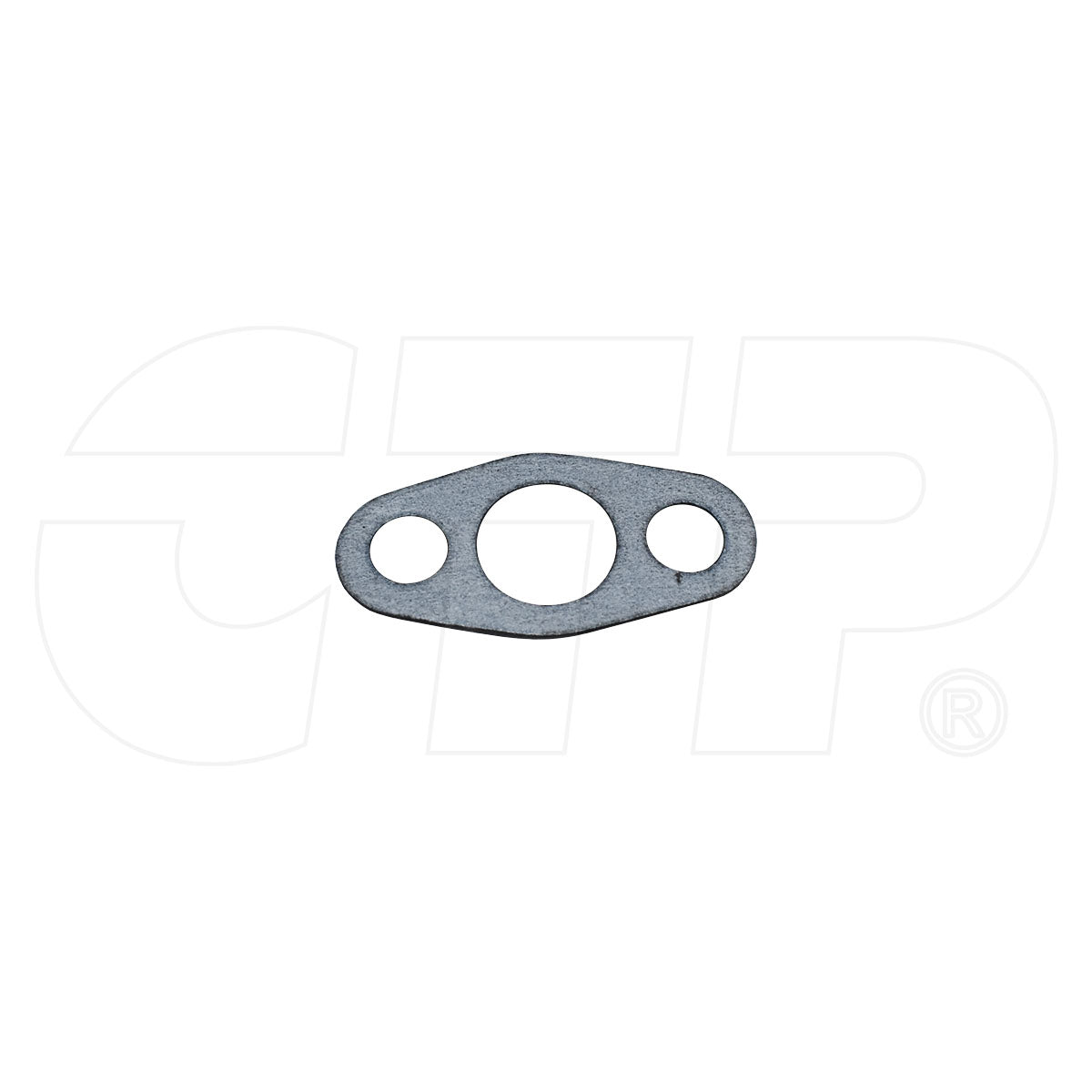

1S6595 Gasket Fits Caterpillar Models

One New Aftermarket Replacement Turbocharger Oil Supply Gasket for Caterpillar (Cat) Engines and Equipment

This turbocharger oil supply gasket (also called a turbo oil line gasket or gasket-oil supply) seals the connection between the oil feed line and the turbocharger housing on a wide range of Caterpillar (Cat) diesel engines. Precision-cut to OEM dimensions (approximately 66 mm x 28 mm), it provides a heat-resistant, leak-proof seal to maintain proper turbo oil pressure and prevent contamination during high-temperature operation.

Specifications

• Dimensions: approximately 66 mm x 28 mm
• Thickness: approximately 0.1 mm
• Weight: approximately 0.01 lb

Compatible Models

Caterpillar Engines: 3208, 3304, 3306, 3306B, 3306C, 3406, 3406B, 3406C, 3406E, 3176B, 3176C, 3196, C10, C12, C13

Caterpillar Motor Graders: 12E, 12G, 12H, 12H NA, 120G, 130G, 140B, 140G, 143H, 14G, 160H, 16G, 16H NA, 24H, 24M

Caterpillar Wheel Loaders: 928F, 930, 930T, 936, 936E, 938F, 938G, 950B, 950E, 950F II, 966C, 966D, 966E, 966H, 970F, 972H, 980, 980B, 980C, 988, 988B, 992, 992B

Caterpillar Excavators: 215, 225, 235, 245, 330, 330 FM L, 330 L, 330B LN, 350L

Caterpillar Articulated Trucks: D25C, D25D, D30C, D30D, D35C, D250B, D300B, D300E, D350C

Caterpillar Off-Highway Trucks: 769, 769B, 769C, 771C, 773, 773B, 775B

Caterpillar Crawler Loaders: 955H, 955K, 955L, 973, 977H, 977K

Caterpillar Scrapers: 613G, 615, 615C, 621E, 621F, 621G, 623E, 623F, 627E, 627EPP, 627F, 631D, 633D, 637, 637D, 637DPP, 637E, 639D, 657G

Caterpillar Compactors/Landfill: 816F, 826C, 826G, 836, 836G, 836H

Caterpillar Pipe Layers: 561C, 571F, 572F

Caterpillar Cold Planers: PM-465, PR-1000, PR-1000C

Caterpillar Challengers: 65C, 65D

Caterpillar Other: 1673C, 1674, 1676, 1693

Replaces Part Number(s):

1S6595, 1S-6595

Aftermarket Interchange Numbers

7H3270, 3801559, FP-1S6595, FP1S6595, M-1S6595, M1S6595 (Interstate-McBee), CA1S6595

New aftermarket replacement part - not remanufactured, not used.
