1P4576 Flange-Half Fits Caterpillar Models
1P4576 Flange-Half Fits Caterpillar Models
Couldn't load pickup availability

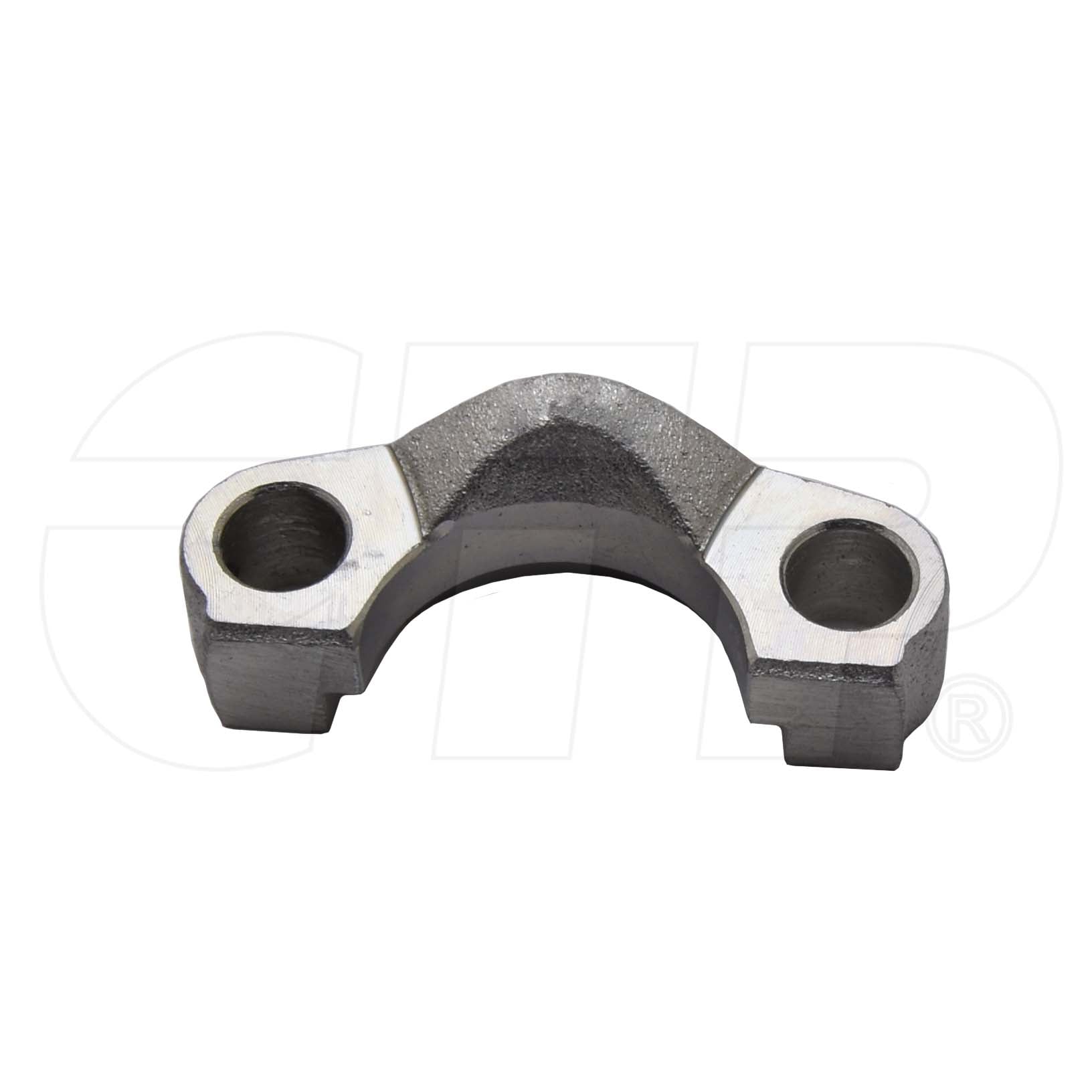

One New Aftermarket Replacement Flange-Half for Caterpillar (Cat) Construction Equipment
This hydraulic split flange half (hose-to-pump) is a 4-bolt Caterpillar-style hydraulic flange clamp used to connect fluid-carrying hoses and tubes to pumps and other hydraulic system components. Caterpillar-style 4-bolt flanges feature a uniform 0.560-inch flange head thickness across all sizes, a dimension that differs from SAE Code 61 and Code 62 flanges -- these flange styles should not be interchanged. This part is sold individually as a single half; two halves are required to complete one flange clamp assembly.
Specifications
- Counter Bore Diameter: 38.89 mm
- Style: 4-Bolt Split Flange (Caterpillar Style)
- Function: Hose-to-pump hydraulic connection
Compatible Models
Caterpillar (Cat): D250E, D250E II, D300E, D300E II, D400E II, PR-1000, PR-1000C, PR-450C, 816F, 816F II, and other Caterpillar equipment using 38.89mm counter bore diameter 4-bolt hydraulic flanges. Confirm part number against your machine serial number before ordering.
Replaces Part Number(s):
1P4576, 1P-4576
Aftermarket Interchange Numbers
2K0190
New aftermarket replacement part - not remanufactured, not used.
