1A9919 Cap Screw Fits Caterpillar Models
1A9919 Cap Screw Fits Caterpillar Models
Couldn't load pickup availability

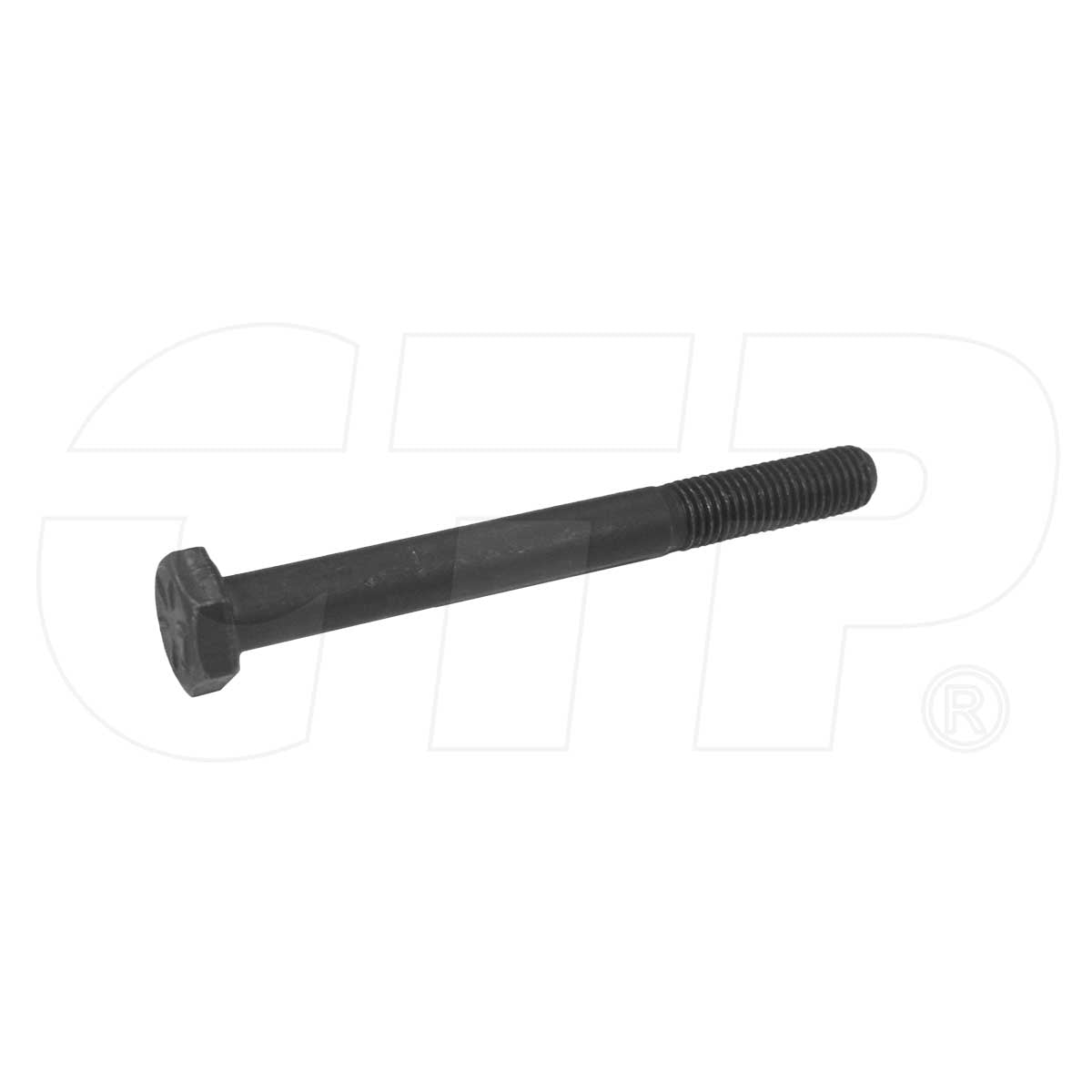

One New Aftermarket Replacement Cap Screw for Caterpillar (Cat) Equipment
This aftermarket replacement cap screw is a 1/4''-28 x 2-1/2'' hex head bolt used across a range of Caterpillar (Cat) engines, tractors, and trucks. It features right-hand threading, a zinc phosphate and oil coating for corrosion resistance, and is rated to SAE J429 Grade 8 (150 ksi) for dependable clamping strength in heavy-duty applications.
Specifications
- Bolt Type: Hex Head
- Thread Size: 1/4''-28 UNF (fine thread, right-hand)
- Bolt Length: 2.5 in (63.5 mm)
- Grip Length: 1.5 in (38.1 mm)
- Material: Alloy Zinc / Carbon Steel
- Coating: Zinc Phosphate + Oil
- Grade: SAE J429 Grade 8 (150 ksi)
- Locking Feature: None
Compatible Models
Caterpillar Track-Type Tractor: D10
Caterpillar Truck: 777
Caterpillar Ripper: 10
Caterpillar Truck Engines: 1674, 1676
Caterpillar Marine Engines: D315, D346, D348, D349, D379, D379A, D379B, D398, D398A, D398B, D399
Caterpillar Industrial Engines: D346, D348, D349, D379, D379B, D398, D398B, D399
Caterpillar Vehicular Engines: D346, D348, D349
Replaces Part Number(s):
1A9919, 1A-9919
New aftermarket replacement part - not remanufactured, not used.
