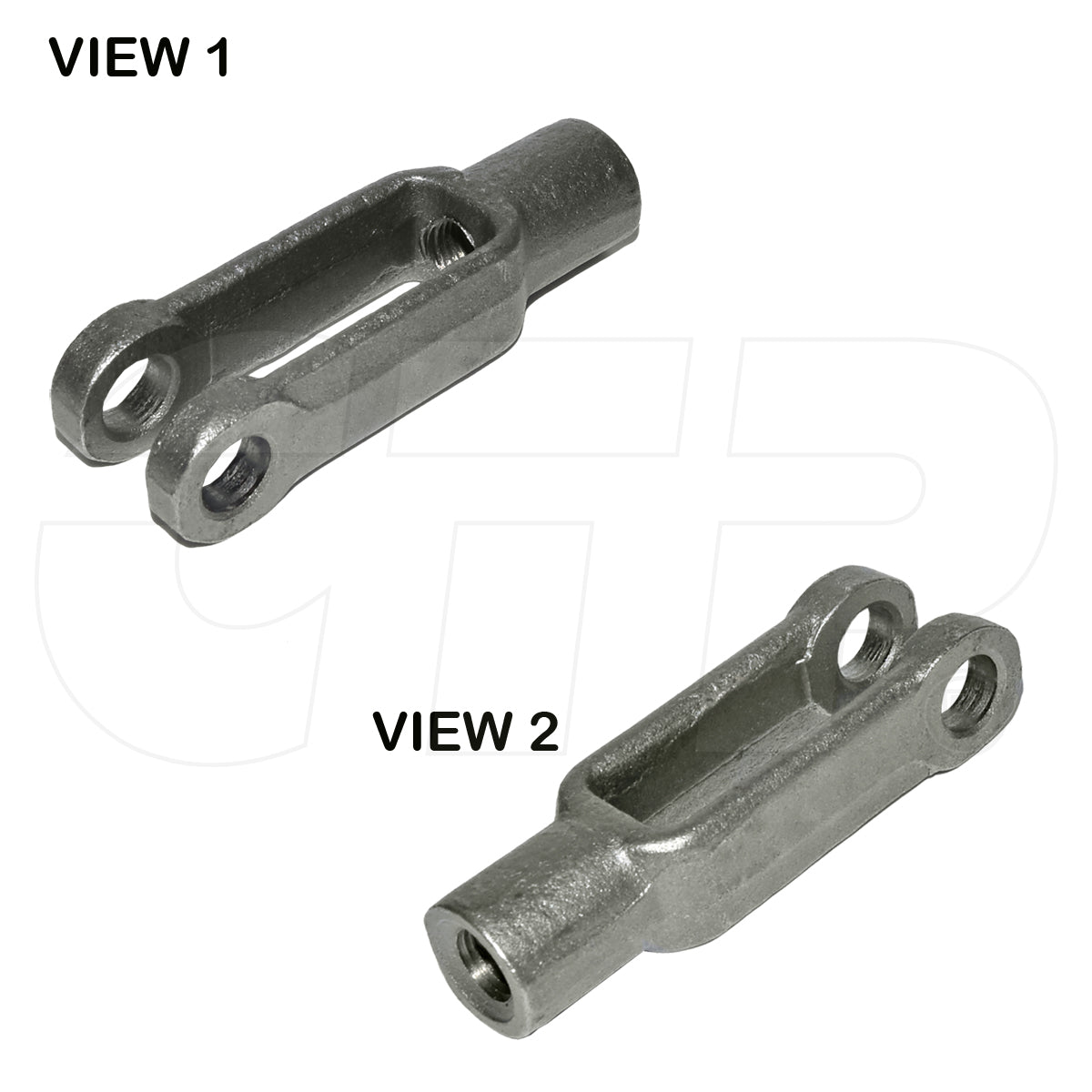

One New Aftermarket Replacement End Yoke (Yoke-Type Rod End) for Caterpillar (Cat) Equipment
This aftermarket replacement end yoke -- also referenced as an end-adjustment rod or yoke-type rod end -- is a straight, internally threaded yoke rod end used in adjustment linkages and control rod assemblies across a wide range of Caterpillar (Cat) construction, excavation, paving, logging, and power generation equipment. Replaces Caterpillar OEM part number 1A9252 (also formatted as 1A-9252).
Specifications
- Thread Size: 3/8-24 UNF
- Thread Type: Straight, Internal
- Hole Diameter: 9.52 mm
- Length to Centerline of Hole: 63.5 mm
- Thread Length: 22.22 mm
- External Yoke Width: 22.22 mm
- Internal Yoke Width: 11.11 mm
- Weight: 0.15 lbs
- Material: Alloy Steel
Compatible Models
Caterpillar Motor Graders: 12E, 14E, 16
Caterpillar Hydraulic Controls: 163, 173B, 191
Caterpillar Excavators: 235, 235C, 235D, 245, 245B, 5230, 5230B
Caterpillar Pipelayers / Pipe Layers: 561B, 561C, 561D, 561H, 571G, 572G, 583H, 583K, 589
Caterpillar Track Skidders: 508, 517, 527, D4HTSK II, D4HTSK III, D5HTSK II
Caterpillar Track Loaders: 941, 943, 951B, 953, 953B, 953C, 955C, 955H, 955K, 955L, 963, 963B, 973, 977D, 977H, 977K, 977L, 983, 983B
Caterpillar Track-Type Tractors (Dozers): D4D, D4E, D4E SR, D4H, D4H XL, D5, D5B, D5E, D5H, D5H XL, D6C, D6D, D6E, D6E SR, D6F SR, D6G, D6G SR, D6G2 LGP, D6G2 XL, D6H, D6H II, D6H XL, D6H XR, D6R, D6R STD, D7F, D7G, D7G2, D7H, D7R, D8H, D8K, D8L, D8N, D8R, D9E, D9G, D9H, D9N, D9R, D10N, D11N
Caterpillar Challengers: 65, 65C, 75, 75C, 85C
Caterpillar Compact Wheel Loaders: 910
Caterpillar Gen Set / Generator Set Engines: 3508, 3508B, 3508C, 3512, 3512B, 3512C, 3516, 3516B, 3516C, G3508, G3508B, G3512, G3512B, G3516, G3516B, G3520B
Caterpillar Industrial / Marine Engines: 3508, 3512, 3516, D320A, D326F, D337F, D343, D346, D348, D353C, D379, D379A, D397D, D398, D399
Replaces Part Number(s):
1A9252, 1A-9252, 1M1341, 2K0400, 0776018, 776018, 077-6018, 1K6556, 104038
Aftermarket Interchange Numbers
CA1A9252
New aftermarket replacement part - not remanufactured, not used.
