Ignition Tune-Up Kit Fits John Deere Replaces 1935038

Ignition Tune-Up Kit Fits John Deere Replaces 1935038

$86.00 CAD
$86.00 CAD
Sale Sold out
Shipping calculated at checkout.

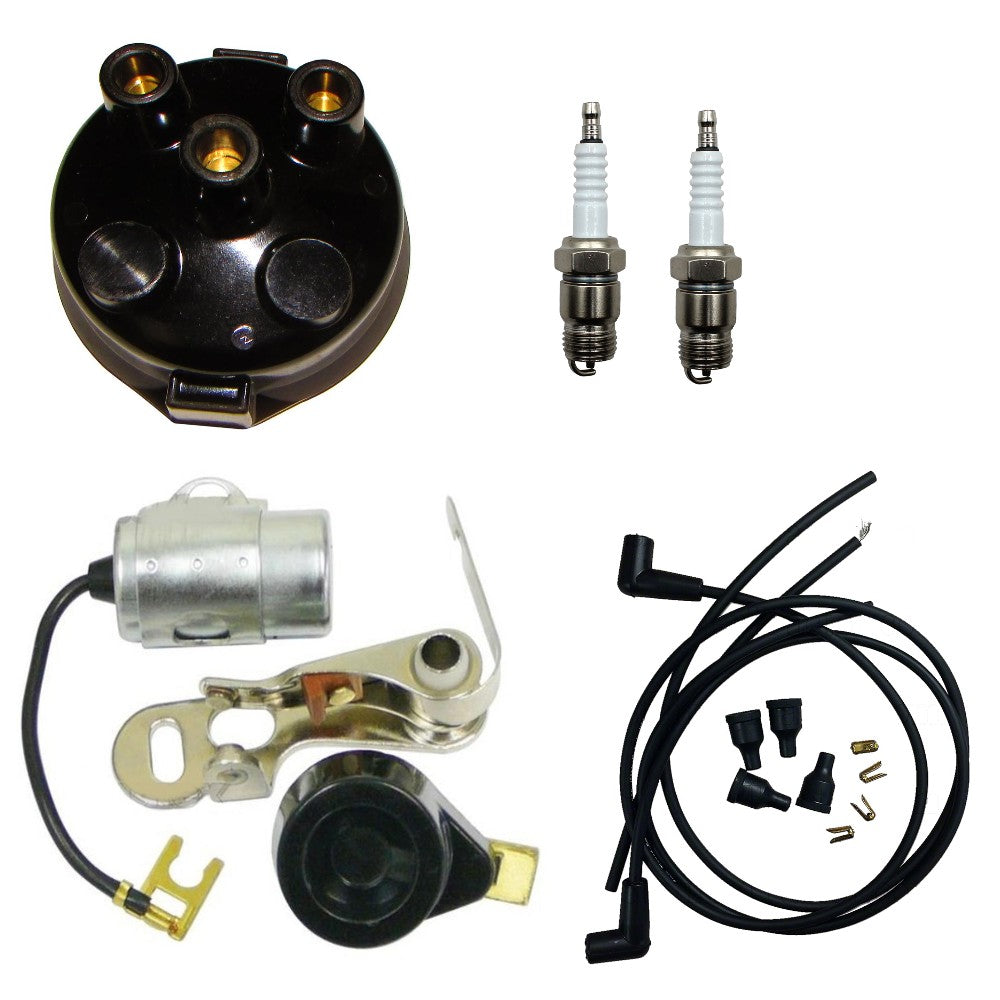

One New Aftermarket Ignition Tune-Up Kit

Tech Info:
 -Kit Contains:
 -(1) Spark Plug Wiring Set
 -90 Degree Boots
 -Wires Are Approximately 32" and 49" Long
 -Copper Core
 -Aluminum Coating to Prevent Corrosion
 -Neoprene Outer Cover
 -Each Spark Plug Wire Has One End Pre-Assembled - Crimp the Other End With a Crimping Tool
 -Coil Wire is the Excess Wire Left Over From the Spark Plug Wire
 -
 -(1) Distributor Cap
 -
 -Replaces Part Number: 1935038
 -
 -(1) Tune-Up Kit
 -Contains:
 -Breaker Points,
 -Condenser, and
 -Rotor.
 -
 -Replaces Part Number(s): ATK1DCR, A-ATK1DCR
 -
 -(2) Spark Plugs
 -Standard Info
 -Thread Size: 18mm
 -7/8" Hex Shoulder
 -Hex Size: 13/16" (20.6mm)
 -Reach: 12mm (.472")
 -Seat Type: Gasket
 -Gap: .028" (0.7mm)
 -Heat Range: 2
 -Terminal Type: Removable Nut
 -Resistor: No
 -Thread Pitch: 1.5mm
 -Center Electrode
 -Type: Standard
 -Material: Nickel
 -Size: 2.5mm
 -Projection: Non-Projected
 -Ground Electrode
 -Type: Standard
 -Material: Nickel
 -
 -Replaces Part Number: TY6075

Made to Fits John Deere:
 Tractor Models: 520, 530, 620, 630, 720, 730
 Replaces Part Number(s): 1935038, ATK1DCR, A-ATK1DCR, TY6075

Models This Part Fits:

620, 730, 720, 530, 520, 630

Additional Information:

Kit Contains: (1) Spark Plug Wiring Set 90 Degree Boots Wires Are Approximately 32" and 49" Long Copper Core Aluminum Coating to Prevent Corrosion Neoprene Outer Cover Each Spark Plug Wire Has One End Pre-Assembled - Crimp the Other End With a Crimping Tool Coil Wire is the Excess Wire Left Over From the Spark Plug Wire (1) Distributor Cap Replaces Part Number: 1935038 (1) Tune-Up Kit Contains: Breaker Points, Condenser, and Rotor. Replaces Part Number(s): ATK1DCR, A-ATK1DCR (2) Spark Plugs Standard Info Thread Size: 18mm 7/8" Hex Shoulder Hex Size: 13/16" (20.6mm) Reach: 12mm (.472") Seat Type: Gasket Gap: .028" (0.7mm) Heat Range: 2 Terminal Type: Removable Nut Resistor: No Thread Pitch: 1.5mm Center Electrode Type: Standard Material: Nickel Size: 2.5mm Projection: Non-Projected Ground Electrode Type: Standard Material: Nickel Replaces Part Number: TY6075

Reference Numbers:

1935038, ATK1DCR, A-ATK1DCR, TY6075

Product Sub Group:

Ignition Components
