Deck Rebuild Kit Fits Husqvarna Replaces 192870 Made with Aramid

Deck Rebuild Kit Fits Husqvarna Replaces 192870 Made with Aramid

$255.00 CAD
$255.00 CAD
Sale Sold out
Shipping calculated at checkout.

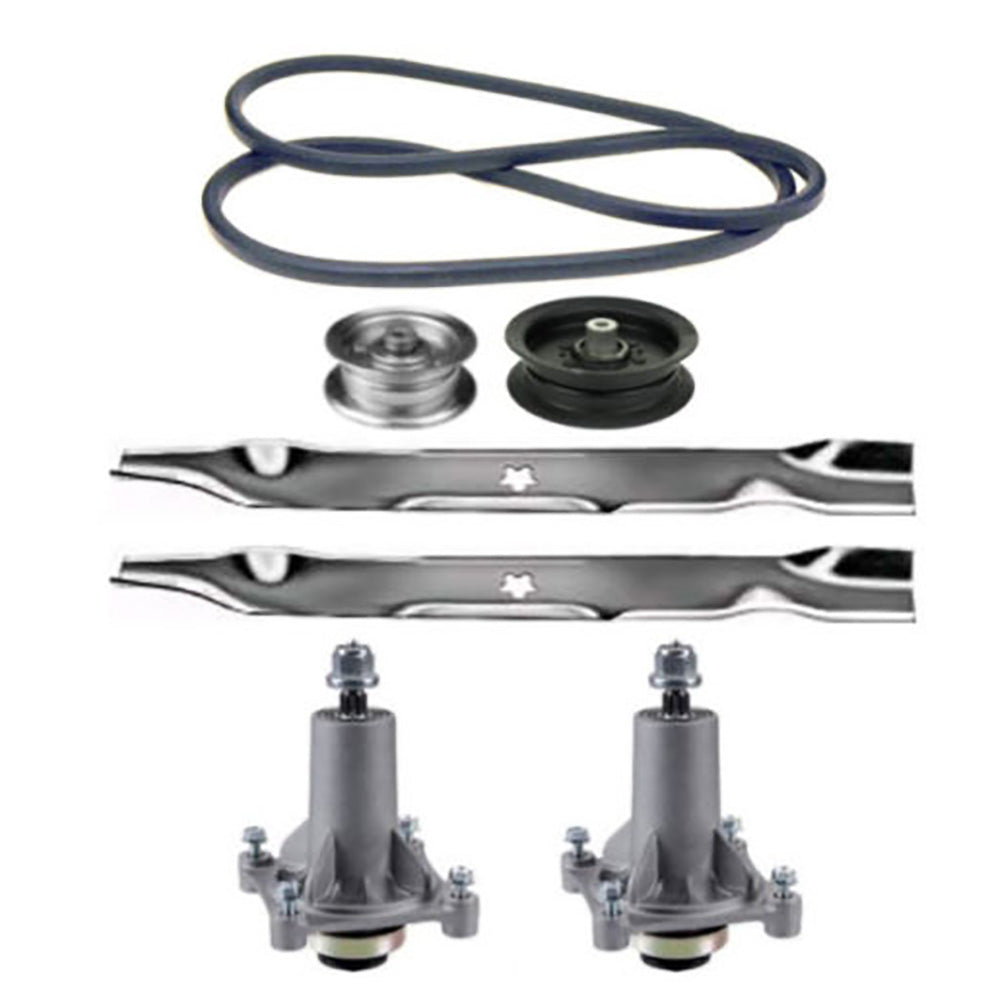

One New Aftermarket Deck Rebuild Kit

Tech Info:
 -Kit Includes:
 -(2) Spindle Assemblies
 -4-Bolt Long Housing
 -5-Point Star Blade Mount
 -Threaded Mounting Holes for Easy Installation
 -Shaft is Splined for Spline-Type Pulleys
 -
 -Includes:
 -Pulley Locknut,
 -Blade Bolt/Washer,
 -Spacer,
 -4 Mounting Bolts
 -
 -Replaces Part Number(s):
 -187292, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 192870, 532187281, 567253301
 -
 -(2) Mulching Lawn Mower Blades
 -Length: 21"
 -Width: 2-1/4"
 -Center Hole: 5 Point Star
 -Thickness: .134"
 -Mulching Blade
 -
 -Replaces Part Number(s):
 -134149, 24676, 422719, 424752, 531005085, 531307223, 532422719, 532424752, 539110460, 91724676, 917532422719, 917532424752, 917539110460, 917777134149, 954636867, 532134149, 594892701, 594893101, 777134149
 -
 -(1) Flat Idler Spindle Pulley
 -Height: 1-7/16"
 -ID: 3/8"
 -OD: 4"
 -Material: Metal
 -Heavy Duty: TRUE
 -
 -Replaces Part Number(s):
 -177968, 193197, 532177968, 532193197
 -
 -(1) Flat Idler Pulley
 -ID: 3/8"
 -OD: 5-3/8"
 -Height: 1-5/8"
 -Painted
 -
 -Replaces Part Number(s):
 -196106, 197379, 532196106
 -
 -(1) Belt
 -1/2" x 101"
 -Wrapped Made With Aramid Cord
 -Replaces Part Numbers: 532197253

Made to Fits Husqvarna:
 Lawn/Garden Tractor Models: 42" Mower Decks
 Replaces Part Number(s): 532197253, 592855001, 196106, 197379, 532196106, 532177968, 532193197, 532134149, 594892701, 594893101, 777134149, 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301

 Models: YT1942, YTH2042

Models This Part Fits:

42" Mower Decks

Additional Information:

Kit Includes: (2) Spindle Assemblies 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes for Easy Installation Shaft is Splined for Spline-Type Pulleys Pulley Locknut Blade Bolt/Washer Spacer 4 Mounting Bolts Replaces Part Number(s): 187292, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 192870, 532187281, 567253301 (2) Mulching Lawn Mower Blades Length: 21" Width: 2-1/4" Center Hole: 5 Point Star Thickness: .134" Mulching Blade Replaces Part Number(s): 134149, 24676, 422719, 424752, 531005085, 531307223, 532422719, 532424752, 539110460, 91724676, 917532422719, 917532424752, 917539110460, 917777134149, 954636867, 532134149, 594892701, 594893101, 777134149 (1) Flat Idler Spindle Pulley Height: 1-7/16" Inner Diameter: 3/8" Outer Diameter: 4" Material: Metal Heavy Duty: TRUE Replaces Part Number(s): 177968, 193197, 532177968, 532193197 (1) Flat Idler Pulley Inner Diameter: 3/8" Outer Diameter: 5-3/8" Height: 1-5/8" Painted Replaces Part Number(s): 196106, 197379, 532196106 (1) Belt 1/2" x 101" Wrapped Aramid Cord Replaces Part Numbers: 532197253

Reference Numbers:

532197253, 592855001, 196106, 197379, 532196106, 532177968, 532193197, 532134149, 594892701, 594893101, 777134149, 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301

Product Sub Group:

Deck Components
