1918304 Sensor Gp-Speed Fits Caterpillar Models

One New Aftermarket Replacement Speed Sensor (Sensor Gp-Speed) for Caterpillar (Cat) Engines and Equipment

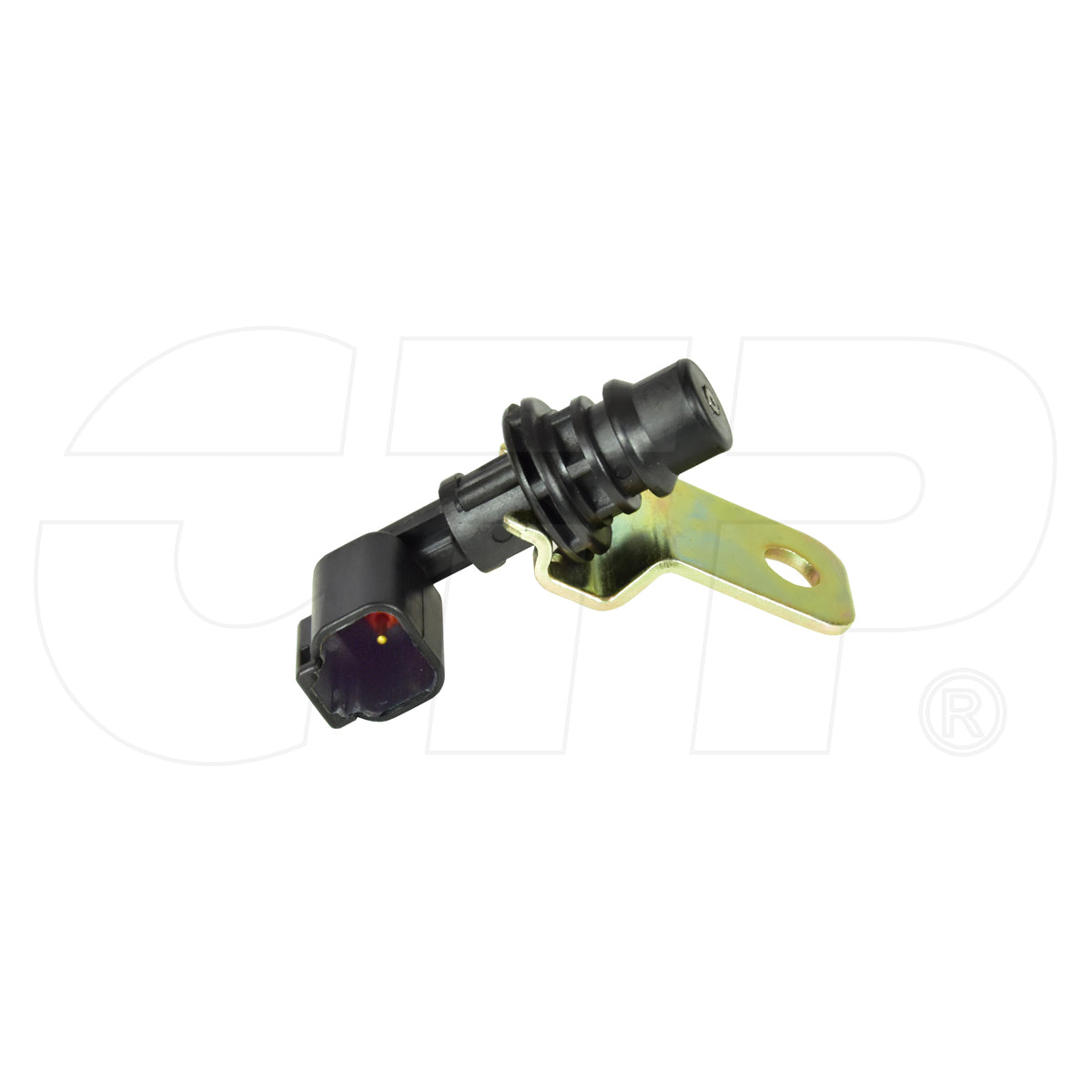

This aftermarket replacement Sensor Gp-Speed (191-8304 / 1918304) is a high variable reluctance speed sensor used to monitor rotational speed and send timing signals to the Engine Control Module (ECM) on a wide range of Caterpillar (Cat) diesel engines and equipment. The 2-pin DT connector design allows for direct plug-and-play installation. This sensor is used in camshaft and crankshaft position sensing applications across Cat C-series engines and many machine platforms.

Specifications

• Sensor Type: High Variable Reluctance Speed Sensor
• Connector: 2-pin DT
• Bore Diameter: 0.73 in.
• Insert Length: 0.89 in.
• Overall Length: 2.57 in.
• Weight: 0.11 lbs.

Compatible Engines

Caterpillar Engines: 3054C, 3054E, 3176C, 3406E, 3508, C4.4, C6.6, C7, C9, C11, C12, C13, C15, C175-16, C175-20, C18, C27

Compatible Models

Caterpillar Motor Graders: 12M, 12M 2, 12M 3, 12M 3 AWD, 14M, 16M, 120K, 120K 2, 120M, 120M 2, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 160K, 160M, 160M 2, 160M 3, 160M 3 AWD

Caterpillar Wheel Loaders: 415, 416, 420, 420E, 420F2, 420XE, 427F2, 428, 428E, 428F, 428F2, 430E, 430F, 432E, 432F2, 434, 434E, 442E, 444E, 444F, 444F2, 450E, 950M, 962M, 980H, 980K, 980L, 980M, 982M

Caterpillar Articulated Trucks: 735, 740, 772G, 793F, 793F XQ, 795F AC, 797, 797B, 797F, 7A

Caterpillar Track-Type Tractors (Dozers): D6R III, D6T, D7R II, D8T, D9T, D10T

Caterpillar Telehandlers: TH220B, TH330B

Caterpillar Pipelayers: 572R II, 583T, 587T

Caterpillar Transmissions: CX28, CX31, CX31-C13I, CX31-C9I, CX31-P600, TA19-M2WD, TA19-M4WD, TA22-M4WD

Caterpillar Petroleum Packages: TH31-C9I, TH31-C9P, TH31-C9T, TH31-E61, TH35-C13I, TH35-C13T, TH35-C15I, TH35-C15T, TH35-E81, CX31-C15I, CX31-C18I

Caterpillar Generator Sets: C175-16

Caterpillar Excavators (via C12/C15 engine fitment): 980, 982

Replaces Part Number(s):

1918304, 191-8304, 191 8304, CA1918304

Aftermarket Interchange Numbers

PAI 350620

New aftermarket replacement part - not remanufactured, not used.
