6 Volt Starter, Bendix Drive & Repair Kit Fits Delco Replaces 1915898-ASSY

6 Volt Starter, Bendix Drive & Repair Kit Fits Delco Replaces 1915898-ASSY

$98.00 CAD
$98.00 CAD
Sale Sold out
Shipping calculated at checkout.

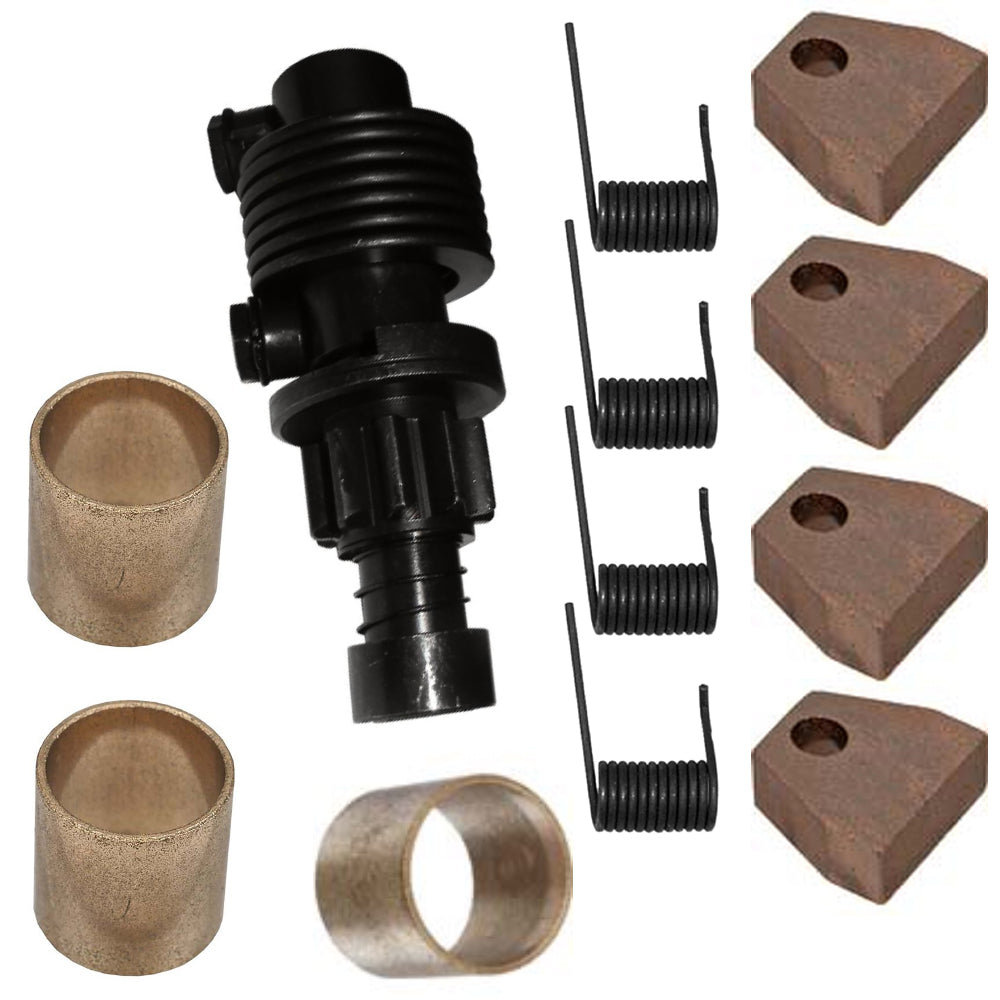

One New Aftermarket 6 Volt Starter, Bendix Drive & Repair Kit

Tech Info:
 -(1) Starter Drive Assembly
 -10 Teeth
 -Counter clockwise rotation (with spring towards your chest) to engage flywheel ring gear
 -Spring style
 -Replaces: 74044454, 77695H, 1107127
 -
 -(4) Starter Brushes
 -Length: 0.63" / 16mm
 -Width: 0.748" / 19mm
 -Height: 0.256" / 6.5mm
 -Replaces: 1906945, 1906966, 1946400, 1946400-A, D757, D760
 -
 -(2) Starter Brushes
 -ID: 0.564" / 14.33mm
 -OD: 0.629" / 15.98mm
 -Width: 0.65" / 16.51mm
 -Replaces: 1938743, 35058, 810620, 9B-9103, D1676, MCX203
 -
 -(1) Starter Bushing
 -Inner Diameter: 0.626" / 15.9mm
 -Outer Diameter: 0.688" / 17.48mm
 -Width: 0.625" / 15.88mm
 -Replaces: 1838670
 -
 -(4) Brush Springs
 -Replaces: 25921, 3000-0105, 69-1713, 811453, 813521, D4950, SDR1500

Made to Fit Delco:
 Replaces Part Number(s): 1915898-ASSY

Models This Part Fits:

F12, Sup, Super A, Super C, Super H

Additional Information:

(1) Starter Drive Assembly 10 Teeth Counter clockwise rotation (with spring towards your chest) to engage flywheel ring gear Spring style Replaces: 74044454, 77695H, 1107127 (4) Starter Brushes Length: 0.63" / 16mm Width: 0.748" / 19mm Height: 0.256" / 6.5mm Replaces: 1906945, 1906966, 1946400, 1946400-A, D757, D760 (2) Starter Brushes ID: 0.564" / 14.33mm OD: 0.629" / 15.98mm Width: 0.65" / 16.51mm Replaces: 1938743, 35058, 810620, 9B-9103, D1676, MCX203 (1) Starter Bushing Inner Diameter: 0.626" / 15.9mm Outer Diameter: 0.688" / 17.48mm Width: 0.625" / 15.88mm Replaces: 1838670 (4) Brush Springs Replaces: 25921, 3000-0105, 69-1713, 811453, 813521, D4950, SDR1500
