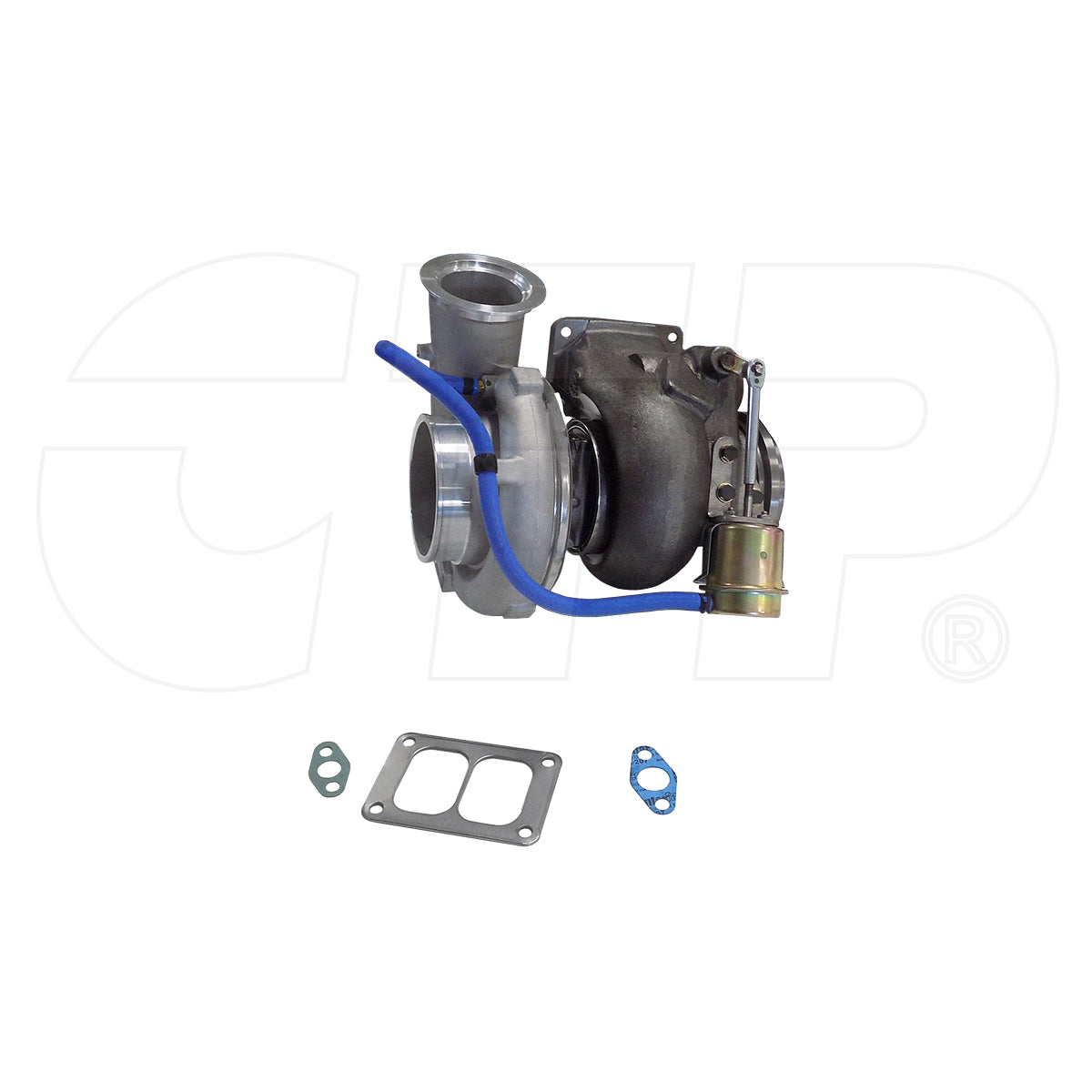

1906210 Turbo Gp-B Fits Caterpillar Models

One New Aftermarket Replacement Turbocharger (Turbo Gp-B) for Caterpillar (Cat) C12 Truck Engines

This aftermarket replacement turbocharger (Turbo Gp-B) is a direct bolt-on replacement for the Garrett GTA4294BS / GT4294S unit originally equipped on Caterpillar C12 diesel truck engines. The turbocharger pressurizes intake air to maintain proper combustion efficiency and engine output. Includes the pneumatic wastegate actuator assembly.

Specifications

• Turbo Model: Garrett GTA4294BS / GT4294S
• Engine: Caterpillar C12 diesel
• Rated Output: 360/430 HP
• Turbine Housing A/R: 1.44
• Compressor Housing Angle: 311.5 degrees
• Turbine Housing Angle: 241.5 degrees
• Bearing Housing: Oil-cooled
• Wastegate Pressure Setting: 1.520-1.590 bar

Compatible Models

Caterpillar (Cat) C12 Truck Engine: Engine serial prefix 2KS (2KS00001-UP), Engine serial prefix 9NS (9NS00001-UP)

Important: This turbocharger fits Caterpillar C12 truck engine applications with engine serial prefixes 2KS and 9NS. Verify your engine serial number before ordering.

Replaces Part Number(s):

1906210, 190-6210, 1906211, 190-6211, 1649490, 164-9490, 1649491, 164-9491, 0R7578, 0R-7578, 0R7292, 0R-7292, 0R7575, 0R-7575, 0R7252, 0R-7252, 0R7174, 0R-7174, 135-5367, 1355367, 145-5184, 1455184, 151-3082, 1513082, 151-5937, 1515937, 190-6205, 1906205, 190-6206, 1906206

Aftermarket Interchange Numbers

Garrett / Honeywell: 716269-5003S, 716269-0001, 716269-0002, 716269-0003, 716269-0004, 471172-0001, 471172-0002, 471172-0003, 471172-0004, 471172-0005, 471172-0006

New aftermarket replacement part - not remanufactured, not used.
