1872505 Fits Delco Starter Armature 6/12 Volt Fits Allis Chalmers IB RC WC WD WD

Name: 1872505 Fits Delco Starter Armature 6/12 Volt Fits Allis Chalmers IB RC WC WD WD
SKU: ELS60-1017_3
Price: 148.0 USD
Availability: InStock

1872505 Fits Delco Starter Armature 6/12 Volt Fits Allis Chalmers IB RC WC WD WD

$148.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

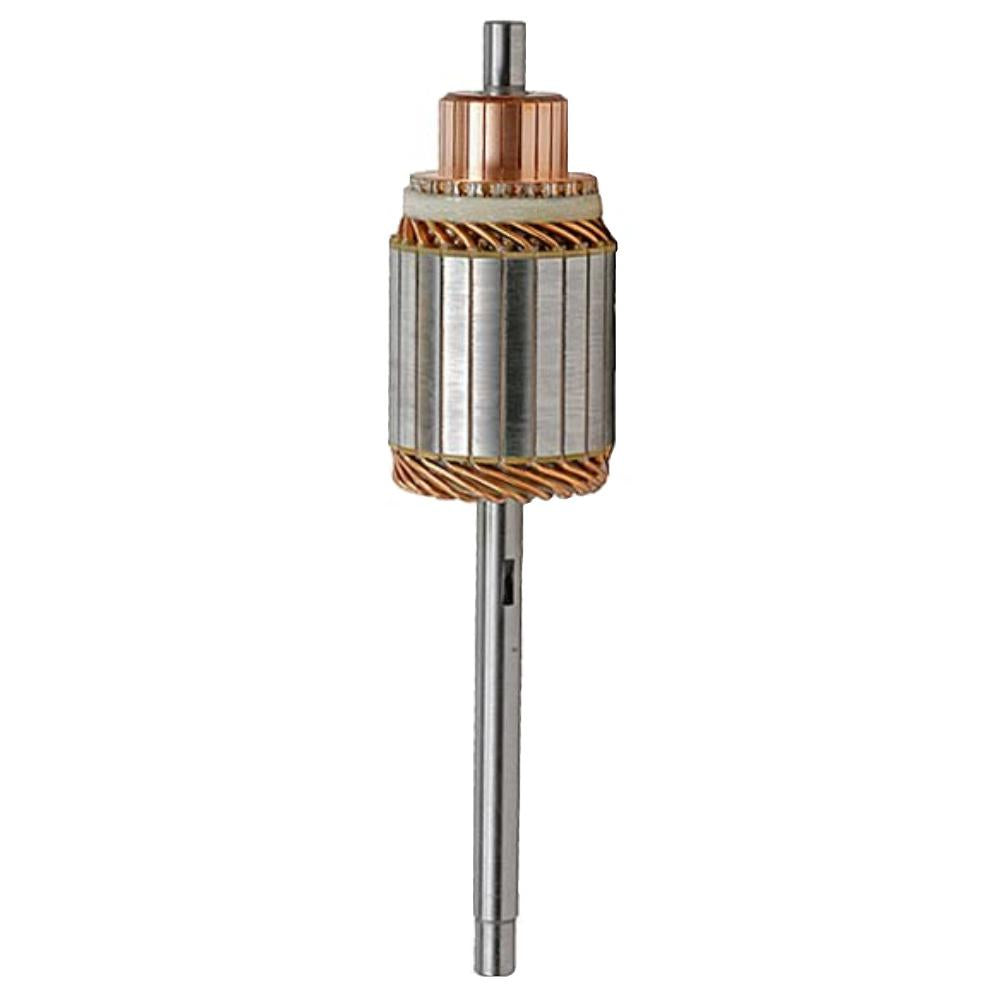

One New Aftermarket Replacement Armature Fits Delco 10MT Starters.

May also Fits Allis Chalmers models: IB, RC, WC, WD, WD45

DETAILS:
Voltage: 6/12
Rotation: CW/CCW
Body OD: 2.937" (74.6mm)
CE OD: 0.563" (14.3mm)
DE OD: 0.563" (14.3mm)
Length: 12.469" (316.7mm)
CE to Bearing/Bushing Stop: 0.827" (21mm)
DE to Bearing/Bushing Stop: 7.165" (182mm)
Number of Comm Bars: 23
Lam Stack Thickness: 2.614" (66.4mm)

-- High Torque
-- Set Screw & Keyway on DE

Replaces Part Numbers: 1872505, 1873354, 2027

Models This Part Fits:

D / DD Series, 40, M70, 440I, 420, MT, B, IB, B15, 430, RC, Jet Star, 206-4A, 206H-4A, D12, 430C, M, MC, 206H-4B, M69, 4 Star Super, ZBE, G-4, 335, WD, 445, ZBN, Super 100, 4000, D7, C, 149, 12, 440, B125, CA, 4 Star, 6000, ZBU, WF, W-226, D14, D8, W-25, WD-45, 165-4A, UNI ZAS, 320, D10, 330, WC

Additional Information:

Voltage: 6/12 Rotation: CW/CCW Body OD: 2.937" (74.6mm) CE OD: 0.563" (14.3mm) DE OD: 0.563" (14.3mm) Length: 12.469" (316.7mm) CE to Bearing/Bushing Stop: 0.827" (21mm) DE to Bearing/Bushing Stop: 7.165" (182mm) Number of Comm Bars: 23 Lam Stack Thickness: 2.614" (66.4mm) High Torque Set Screw & Keyway on DE
