Metallic Clutch Kit w/ Seal Fits Case/International Harvester Replaces 18567D

Metallic Clutch Kit w/ Seal Fits Case/International Harvester Replaces 18567D

$1,288.00 CAD
$1,288.00 CAD
Sale Sold out
Shipping calculated at checkout.

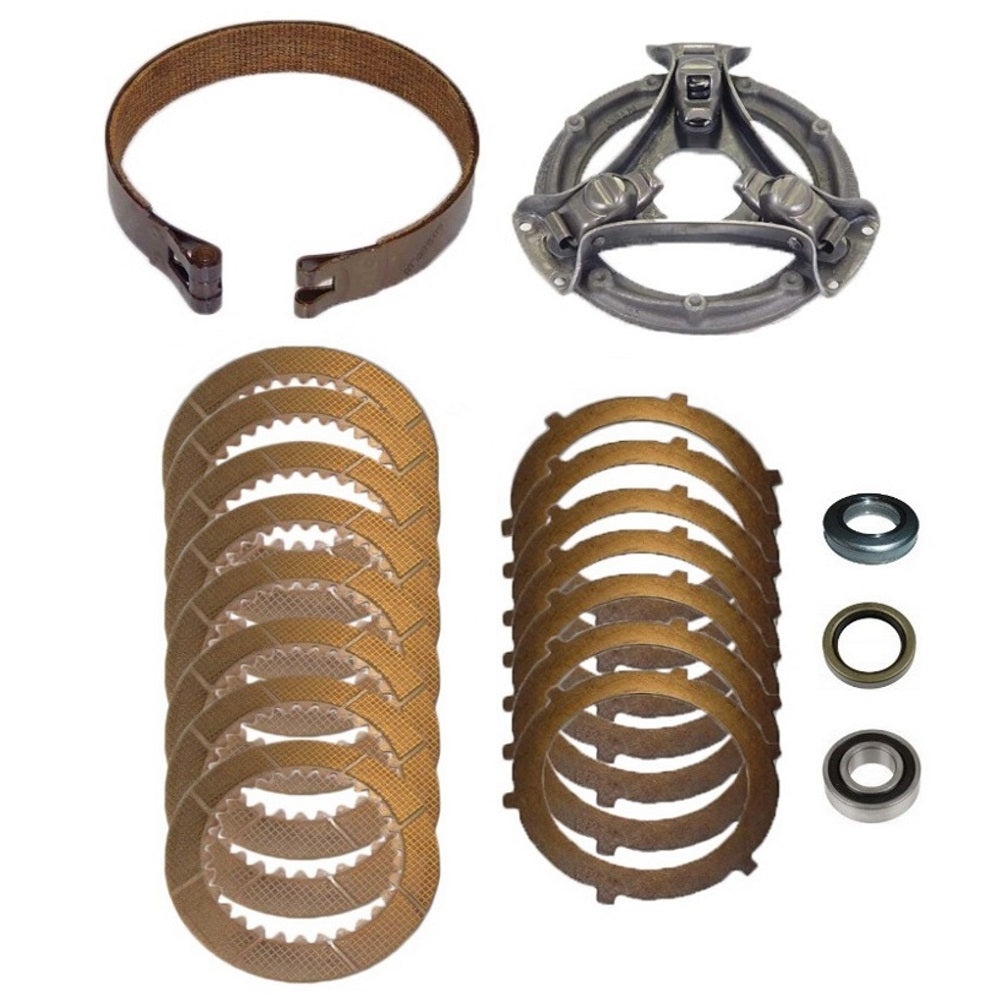

One New Aftermarket Metallic Clutch Kit w/ Seal

Tech Info:
 -(8) Metallic Clutch Discs
 -O.D.: 8.936"
 -I.D.: 5.831"
 -Thickness: .178"
 -Number of teeth: 30
 -Replaces Part Number: AT117553
 -
 -(1) Release Bearing
 -Bearing Type Sealed Roller
 -Grease Non-greaseable
 -I.D.: 2.060"
 -I.D.: Type Round
 -O.D.: 3.560"
 -Width Overall: 0.795"
 -Replaces Part Number: AM3983T
 -
 -(1) Brake Band
 -Width: 2"
 -Replaces Part Number: AT129805
 -
 -(1) 9" Pressure Plate
 -3 Lever
 -Replaces Part Number: AT18886
 -
 -(7) Steel Steering Discs
 -O.D: 9.682"
 -I.D.: 6.882"
 -6 external ears
 -Replaces part Number: T21315
 -
 -(1) Pilot Bearing
 -I.D.: 15mm
 -O.D.: 35mm
 -Width: 0.5”
 -Replaces part Number: 87502
 -
 -(1) Rear Axle Inner Seal
 -I.D.: 2.000”
 -O.D.: 2.876”
 -Width: .468”
 -Replaces Part Number: AM1717T

Made to Fits Case/International Harvester:
 Tractor Models: A, AV, B, C, Super C, H, HV, Super H, Super MDTA, Super MDV-TA, MTA, Super MTA, Super MVTA, W12, W14, Super W6TA, F12, F14, 100, 130, 140, 200, 230, 240, 300, 330, 340, 350, 400, 404, 450, 460, 504, 544, 560, 606, 656, 660, 664, 666, 686
 Replaces Part Number(s): 18567D, 362028R91, 362028R92, 55211D, 55212D

 Crawler Models: T5
 Replaces Part Number(s): 18567D, 362028R91, 362028R92, 55211D, 55212D

Models This Part Fits:

B, C, 450, 544, Super H, Super MDTA, Super MDV-TA, 560, 140, 330, 400, F14, W12, Super MVTA, 686, 340, 300, MTA, F12, 230, 130, 504, 656, Super MTA, AV, 404, 100, 666, Super C, 460, 660, H, HV, Super W6TA, W14, 200, A, T5, 606, 240, 664, 350

Additional Information:

(8) Metallic Clutch Discs Outer Diameter: 8.936" Inner Diameter: 5.831" Thickness: .178" Number of teeth: 30 Replaces Part Number: AT117553 (1) Release Bearing Bearing Type Sealed Roller Grease Non-greaseable Inner Diameter: 2.060" Type: Round Outer Diameter: 3.560" Width Overall: 0.795" Replaces Part Number: AM3983T (1) Brake Band Width: 2" Replaces Part Number: AT129805 (1) 9" Pressure Plate 3 Lever Replaces Part Number: AT18886 (7) Steel Steering Discs Outer Diameter: 9.682" Inner Diameter: 6.882" 6 external ears Replaces part Number: T21315 (1) Pilot Bearing Inner Diameter: 15mm Outer Diameter: 35mm Width: 0.5” Replaces part Number: 87502 (1) Rear Axle Inner Seal Inner Diameter: 2.000” Outer Diameter: 2.876” Width: .468” Replaces Part Number: AM1717T

Reference Numbers:

18567D, 362028R91, 362028R92, 55211D, 55212D
