183795A3 Dipper Cylinder Fits Case 580SL, 580SM
183795A3 Dipper Cylinder Fits Case 580SL, 580SM
Couldn't load pickup availability
One New Aftermarket Replacement Dipper Cylinder Fits Case (Fits Case IH) Backhoe Loaders

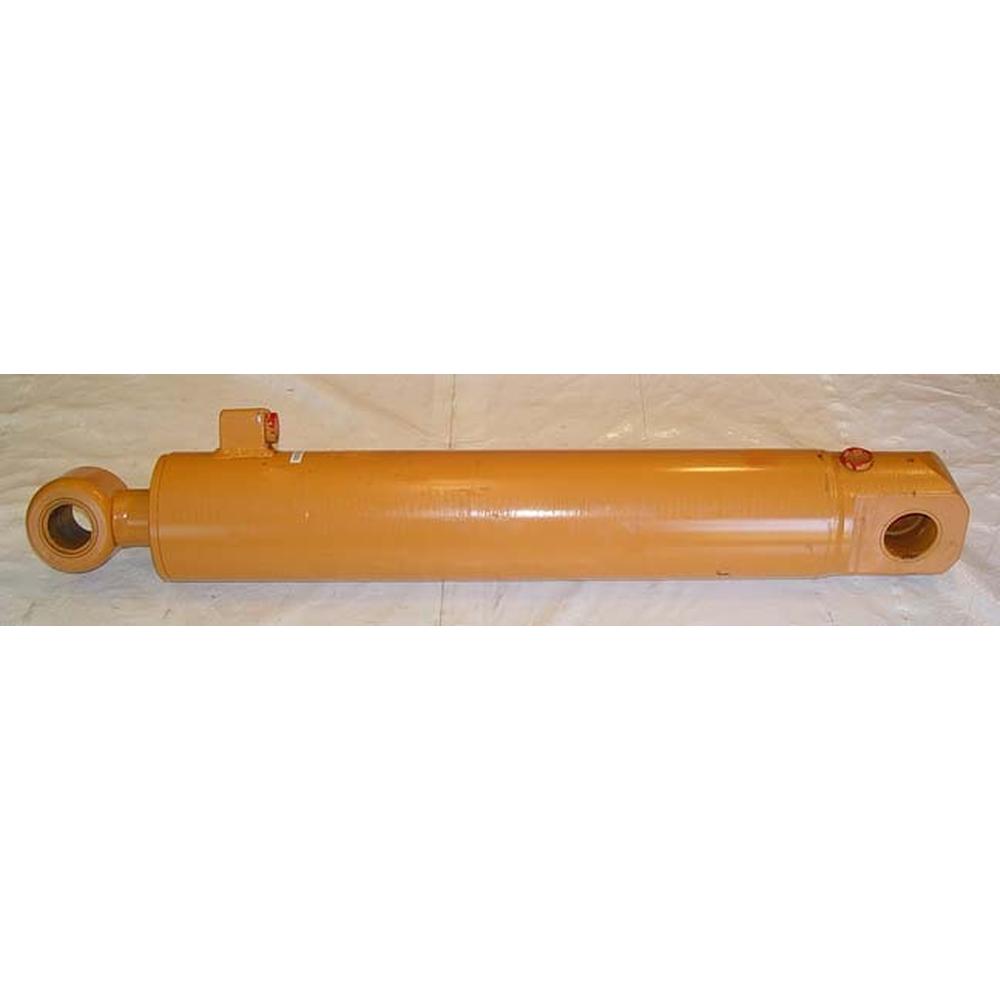

This aftermarket replacement dipper cylinder (also called a stick or arm cylinder) controls the extension and retraction of the dipper stick on Fits Case 580 Super L and 580 Super M backhoe loaders. It is a hydraulic cylinder assembly mounted in the backhoe attachment and is critical to digging reach and crowd force. This part replaces OEM part number 183795A3 and is also interchangeable with earlier Fits Case OEM numbers in the 183795A series.
Specifications
- Bore: 5.00 in.
- Rod Diameter: 2.50 in.
- Stroke: 23.00 in.
- Base End Mount Type: Drilled Thru Lug
- Rod End Mount Type: Cross-Tube
Compatible Models
Fits Case 580 Super L / 580SL Series: 580SL, 580SL Series 2 (580 Super L)
Fits Case 580 Super M / 580SM Series: 580SM, 580SM Series 2, 580SM Series 3, 580SM+ Series 2, 580SM+ Series 3
Replaces Part Number(s):
183795A3
Aftermarket Interchange Numbers
Also interchangeable with Fits Case OEM numbers: 126151A1, 126152A1, 126152A2, 183795A1, 183795A2, 183795A4
New aftermarket replacement part - not remanufactured, not used.
