Metallic Clutch Kit w/ Seal Fits Massey Harris Replaces 18171A

Metallic Clutch Kit w/ Seal Fits Massey Harris Replaces 18171A

$1,288.00 CAD
$1,288.00 CAD
Sale Sold out
Shipping calculated at checkout.

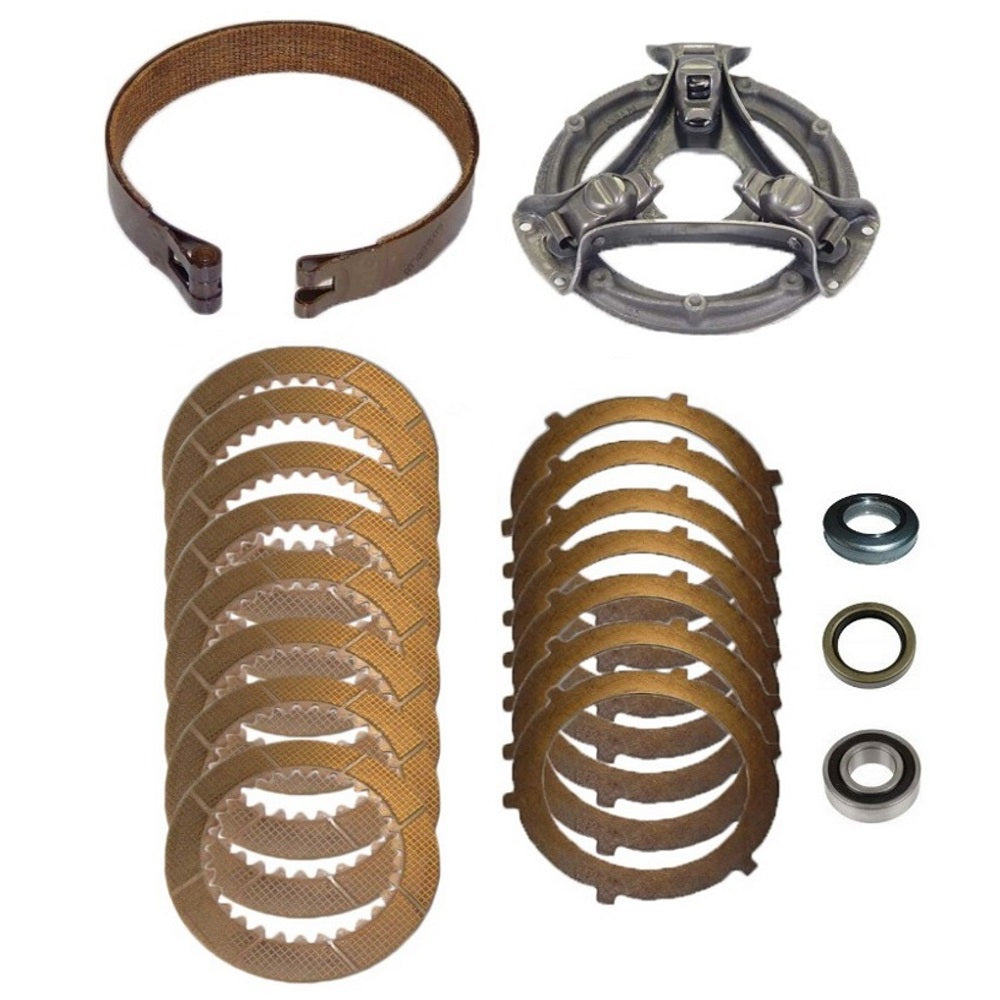

One New Aftermarket Metallic Clutch Kit w/ Seal

Tech Info:
 -(8) Metallic Clutch Discs
 -O.D.: 8.936"
 -I.D.: 5.831"
 -Thickness: .178"
 -Number of teeth: 30
 -Replaces Part Number: AT117553
 -
 -(1) Release Bearing
 -Bearing Type Sealed Roller
 -Grease Non-greaseable
 -I.D.: 2.060"
 -I.D.: Type Round
 -O.D.: 3.560"
 -Width Overall: 0.795"
 -Replaces Part Number: AM3983T
 -
 -(1) Brake Band
 -Width: 2"
 -Replaces Part Number: AT129805
 -
 -(1) 9" Pressure Plate
 -3 Lever
 -Replaces Part Number: AT18886
 -
 -(7) Steel Steering Discs
 -O.D: 9.682"
 -I.D.: 6.882"
 -6 external ears
 -Replaces part Number: T21315
 -
 -(1) Pilot Bearing
 -I.D.: 15mm
 -O.D.: 35mm
 -Width: 0.5”
 -Replaces part Number: 87502
 -
 -(1) Rear Axle Inner Seal
 -I.D.: 2.000”
 -O.D.: 2.876”
 -Width: .468”
 -Replaces Part Number: AM1717T

Made to Fits Massey Harris:
 Tractor Models: 44, 44 Special, 44-6, 55, 101 Sr, 102 Sr, 333, 444, 555
 Replaces Part Number(s): 195207M1, 18171A

Models This Part Fits:

44 Special, 44, 101 Sr, 55, 102 Sr, 44-6, 444, 555, 333

Additional Information:

(8) Metallic Clutch Discs Outer Diameter: 8.936" Inner Diameter: 5.831" Thickness: .178" Number of teeth: 30 Replaces Part Number: AT117553 (1) Release Bearing Bearing Type Sealed Roller Grease Non-greaseable Inner Diameter: 2.060" Type: Round Outer Diameter: 3.560" Width Overall: 0.795" Replaces Part Number: AM3983T (1) Brake Band Width: 2" Replaces Part Number: AT129805 (1) 9" Pressure Plate 3 Lever Replaces Part Number: AT18886 (7) Steel Steering Discs Outer Diameter: 9.682" Inner Diameter: 6.882" 6 external ears Replaces part Number: T21315 (1) Pilot Bearing Inner Diameter: 15mm Outer Diameter: 35mm Width: 0.5” Replaces part Number: 87502 (1) Rear Axle Inner Seal Inner Diameter: 2.000” Outer Diameter: 2.876” Width: .468” Replaces Part Number: AM1717T

Reference Numbers:

195207M1, 18171A
