48" Deck Rebuild Kit Fits Husqvarna Replaces 174356

48" Deck Rebuild Kit Fits Husqvarna Replaces 174356

$251.00 CAD
$251.00 CAD
Sale Sold out
Shipping calculated at checkout.

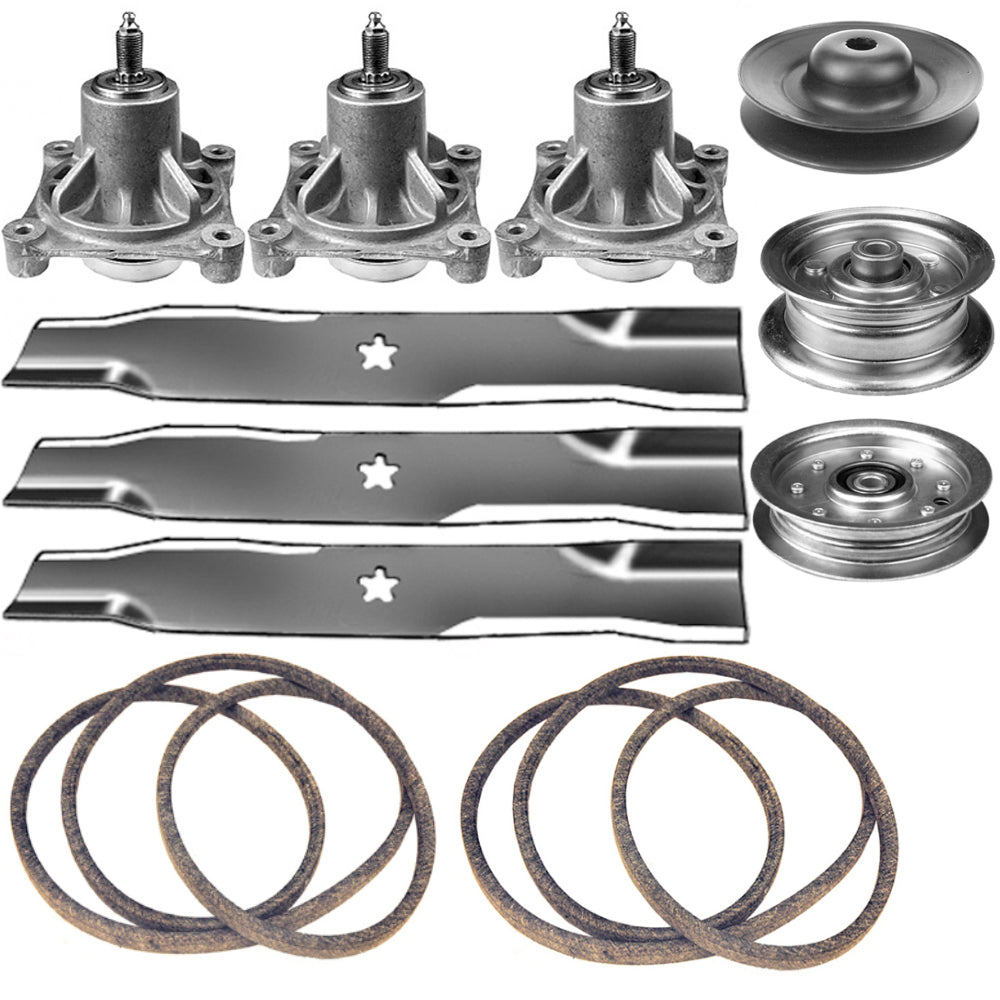

One New Aftermarket 48" Deck Rebuild Kit

Tech Info:
 -Kit Includes:
 -
 -(3) Spindle Assembly
 -Height 5 9/16"
 -4-bolt short housing.
 -5 point star center hole
 -Fits models with a 48" decks
 -Grease fitting on threaded end
 -Includes shaft, bearings and dust cap
 -**No threads in housing, use self-tapping screws***
 -Replaces Part Numbers: 174356,532174356,532174358
 -
 -(3) 16-5/8" Mower Blade with 5PT
 -Needs (3) Blades for 48" cut.
 -Length: 16-5/8"
 -Center Hole: 5 pt. star
 -Width: 2-1/2"
 -Thickness: 0.203"
 -Replaces Part Numbers: 173921,917532173921,954633781,B1EP1040
 -
 -(1) Splined Deck Pulley
 -ID 5/8"
 -OD 4-7/8"
 -Replaces Part Numbers: 532193198,539107620
 -
 -(1) Flat Idler Deck Pulley
 -Height: 1-7/16"
 -ID: 3/8"
 -OD: 4"
 -Material: Metal
 -Heavy Duty: TRUE
 -Replaces Part Numbers: 177968,193197,532177968,LAO78-0004
 -
 -(1) Flat Idler Pulley
 -Height: 1"
 -ID: 3/8"
 -OD: 4 1/2"
 -Material: Metal
 -Heavy Duty: TRUE
 -Replaces Part Numbers: 532 17 58-20,532175820
 -
 -(1) Mower Deck Belt
 -5/8" x 89"
 -Thickness: 0.394"
 -Wrapped Polyester Cord
 -Replaces Part Numbers: 532180808
 -
 -(1) Belt
 -5/8" x 90"
 -Thickness: 0.424"
 -Wrapped Polyester Cord
 -Replaces Part Numbers: 174368

Made to Fit Husqvarna:
 Replaces Part Number(s): 174356, 532174356, 532174358, 532192656, 539107515, 587125201

Additional Information:

(3) Spindle Assemblys Height: 5 9/16" 4-bolt short housing. 5 point star center hole Fits models with a 48" decks Grease fitting on threaded end Includes shaft, bearings and dust cap **No threads in housing, use self-tapping screws*** Replaces Part Numbers: 174356,532174356,532174358 (3) 16-5/8" Mower Blade with 5PT Needs (3) Blades for 48" cut Length: 16-5/8" Center Hole: 5 pt. star Width: 2-1/2" Thickness: 0.203" Replaces Part Numbers: 173921,917532173921,954633781,B1EP1040 (1) Splined Deck Pulley Inner Diameter: 5/8" Outer Diameter: 4-7/8" Replaces Part Numbers: 532193198,539107620 (1) Flat Idler Deck Pulley Height: 1-7/16" Inner Diameter: 3/8" Outer Diameter: 4" Material: Metal Heavy Duty: TRUE Replaces Part Numbers: 177968,193197,532177968,LAO78-0004 (1) Flat Idler Pulley Height: 1" Inner Diameter: 3/8" Outer Diameter: 4 1/2" Material: Metal Heavy Duty: TRUE Replaces Part Numbers: 532 17 58-20,532175820 (1) Mower Deck Belt 5/8" x 89" Thickness: 0.394" Wrapped Polyester Cord Replaces Part Numbers: 532180808 (1) Belt 5/8" x 90" Thickness: 0.424" Wrapped Polyester Cord Replaces Part Numbers: 174368

Reference Numbers:

174356, 532174356, 532174358, 532192656, 539107515, 587125201

Product Sub Group:

Deck Components
