1719387 Gear-Ring Fits Caterpillar Models
1719387 Gear-Ring Fits Caterpillar Models
Regular price
$384.00 CAD
Regular price
Sale price
$384.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

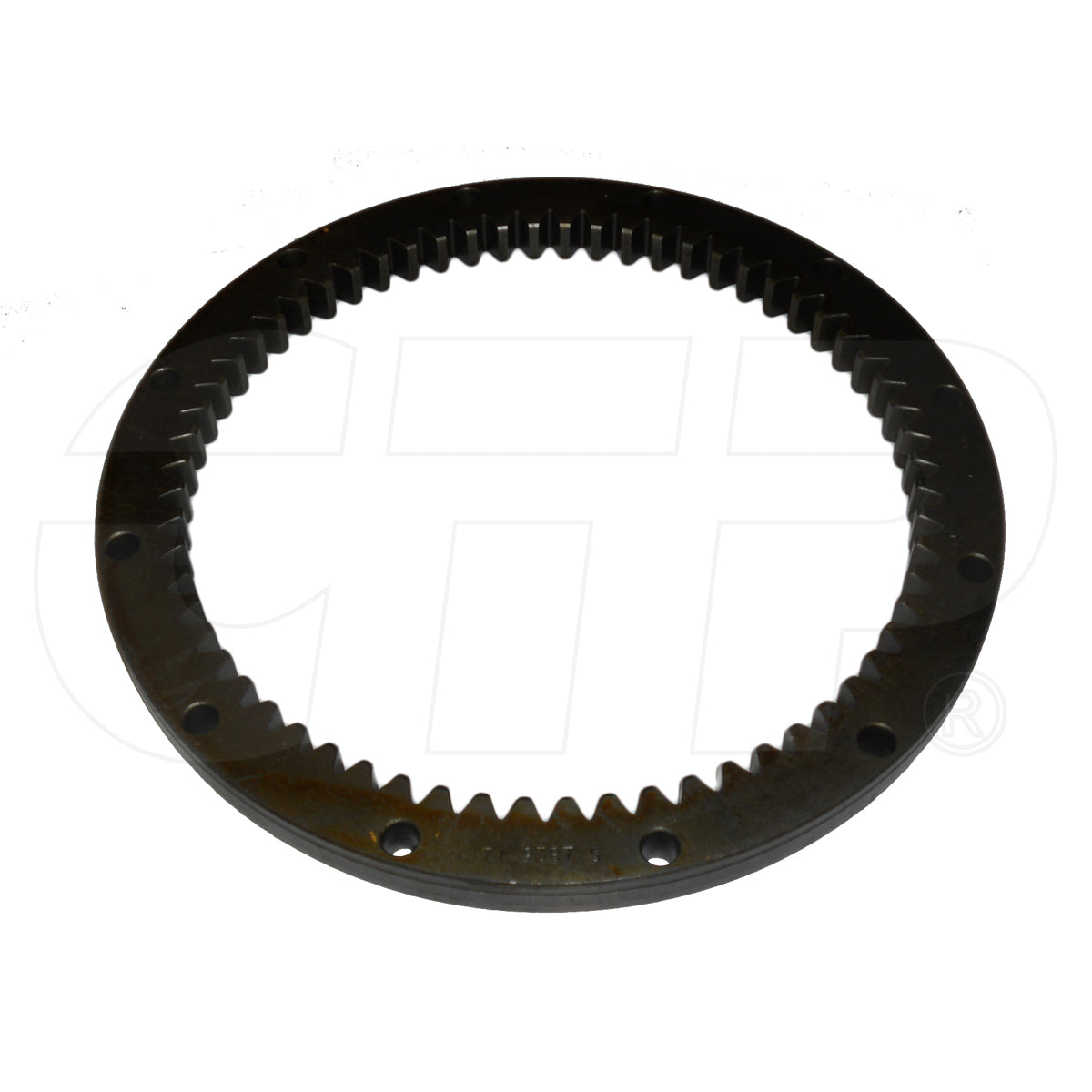

One New Aftermarket Replacement Ring Gear for Caterpillar (Cat) Excavators
This steel ring gear (Caterpillar part number 171-9387) is a final drive component used in Caterpillar medium and large hydraulic excavators. It fits within the final drive gearbox assembly, transferring power from the travel motor to the undercarriage for machine propulsion.
Specifications
- Material: Steel
- Number of Teeth: 64
- Outer Diameter: 12.399 in (314.94 mm)
- Inner Diameter: 10.037 in
- Height: 0.787 in
- Weight: approx. 7-8 lbs
Compatible Models
Caterpillar Excavators: 320C, 320C FM, 320D, 320D FM, 320D FM RR, 322C, 323D LN, 323D SA, 323E L, 325C, 325C FM, 325D, 325D L, 325D MH, 329D, 329D L, 329D LN, 329E, 329E L, 329E LN, 330F, 330F L, 538 Forest Machine
Replaces Part Number(s):
1719387, 171-9387
New aftermarket replacement part - not remanufactured, not used.
