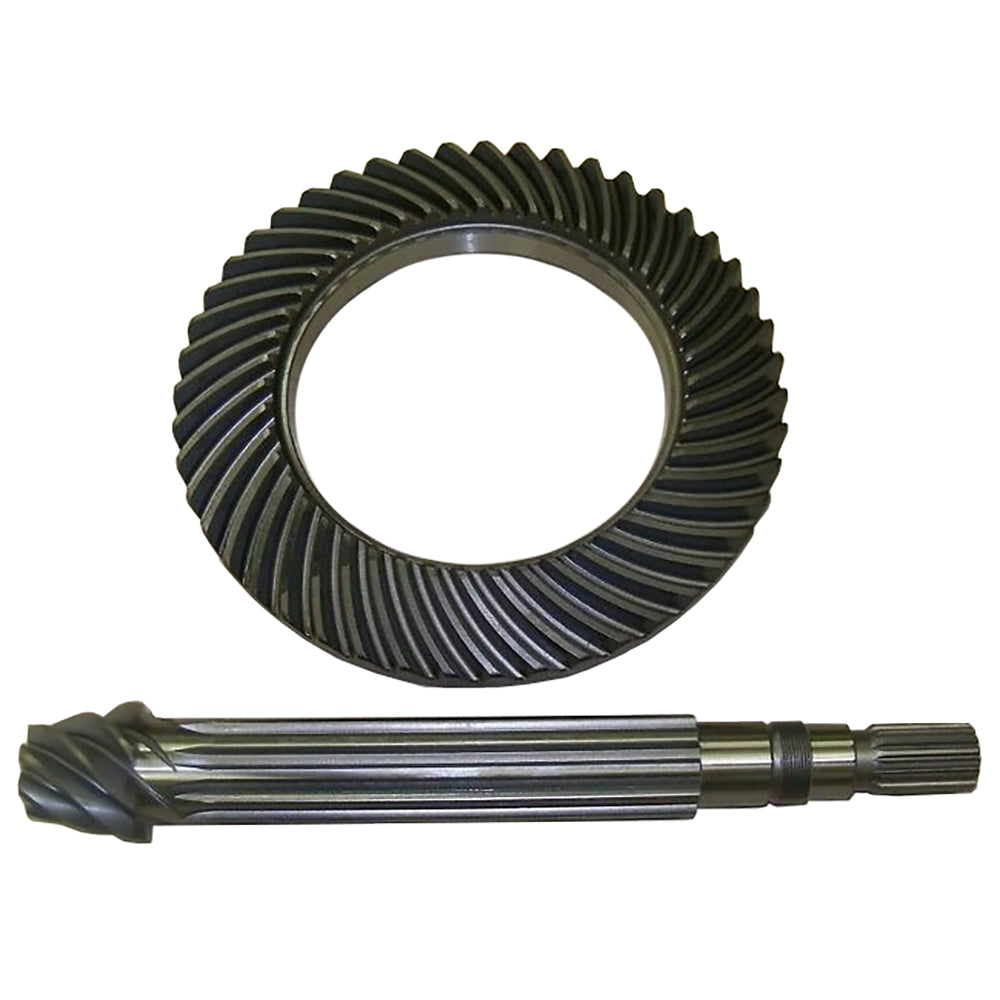

A168883 - Ring Gear and Pinion Fits Case Models

Name: A168883 - Ring Gear and Pinion Fits Case Models
SKU: 1705-2505-ATL
Price: 426.0 USD
Availability: InStock

A168883 - Ring Gear and Pinion Fits Case Models

$426.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket - Ring Gear and Pinion

Fits Case Models: 480D Indust/Const, 480E Indust/Const, 480F Indust/Const, 480LL Indust/Const, 580K Indust/Const, 580SD Indust/Const, 580SE Indust/Const, 584D Indust/Const, 584E Indust/Const, 585D Indust/Const, 585E Indust/Const, 586D Indust/Const, 586E Indust/Const

Replaces Part Number(s): A168883

Models This Part Fits:

480F, 585E, 586E, 584D, 480E LL, 480E, 480F LL, 580SE, 586D, 480LL, 584E, 580K, 585D, 580E, 480D

Additional Information:

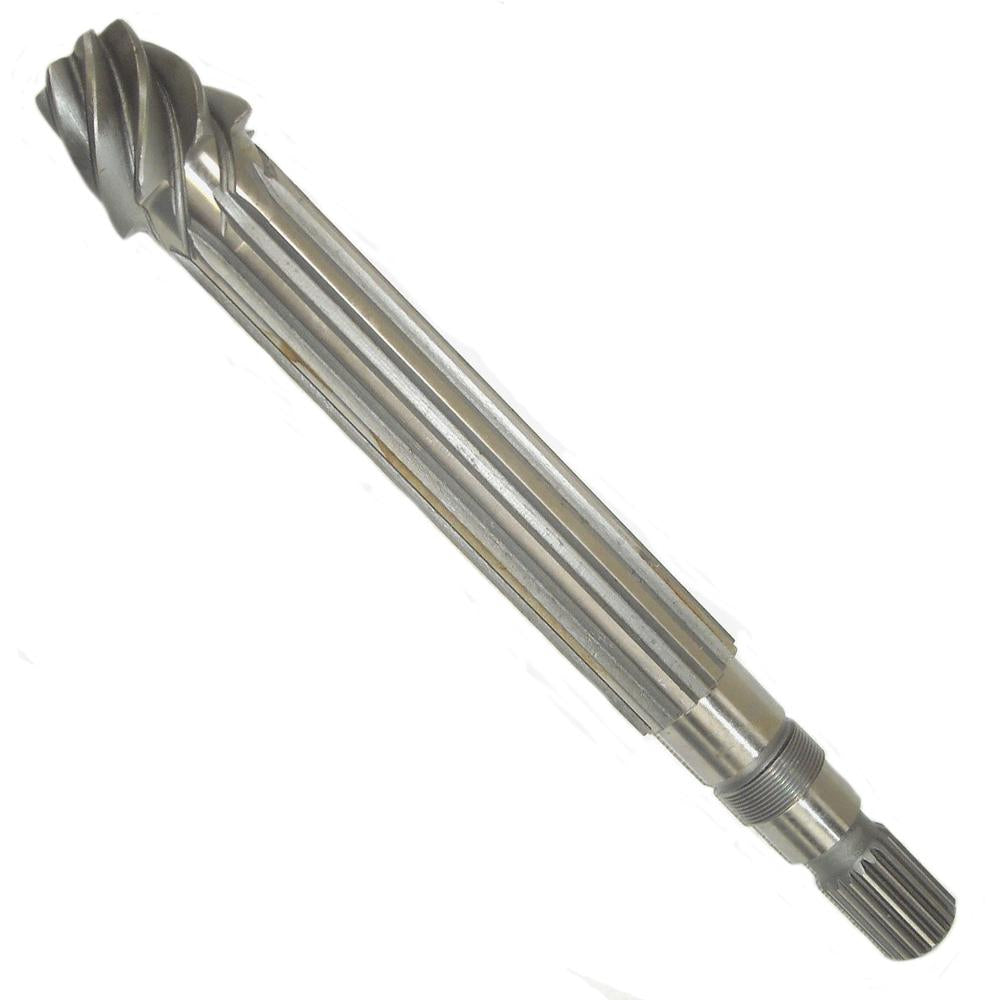

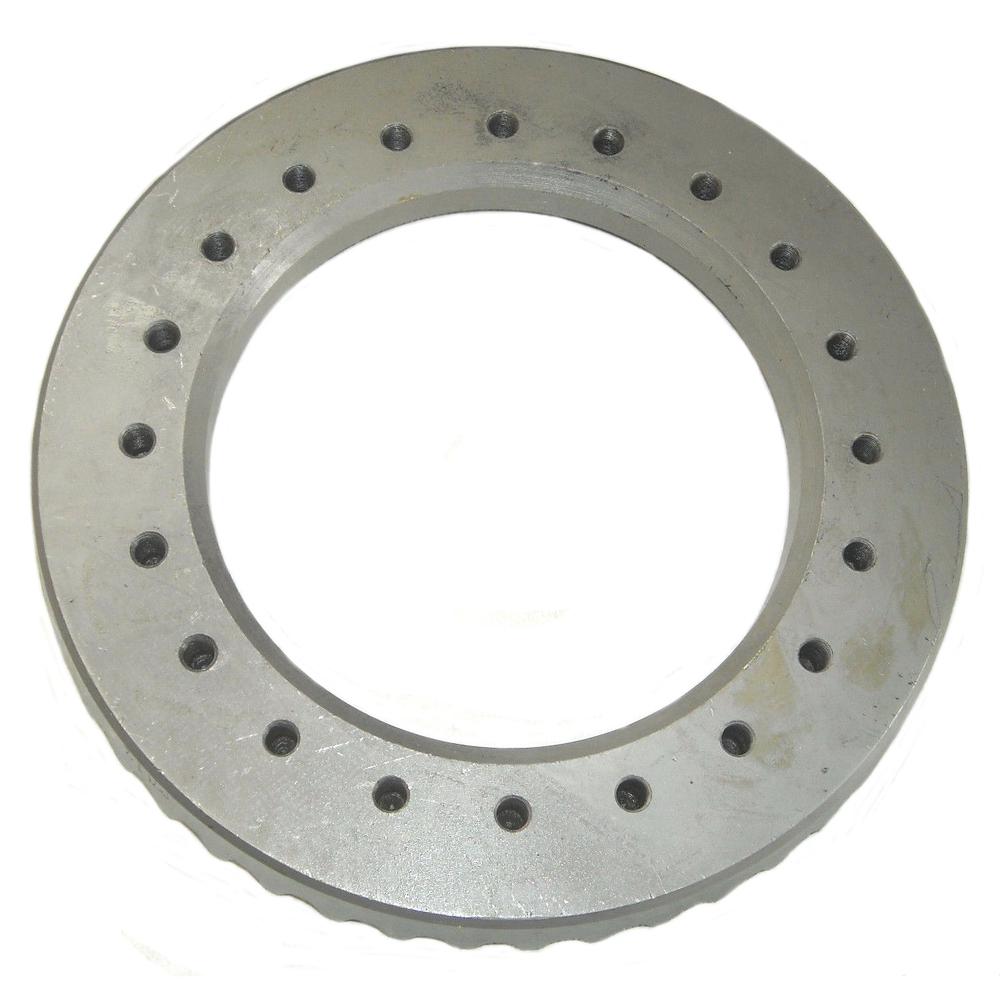

Ring Gear - 47 Teeth, 20 Bolt Holes (threaded holes in back side) No Flange Pinion Shaft - 7 Teeth (ring gear end) 17 Splines (other end) has threads in between splines 10 Splines (in middle of shaft)
