1695590 Gear-Sun Fits Caterpillar Models
1695590 Gear-Sun Fits Caterpillar Models
Couldn't load pickup availability

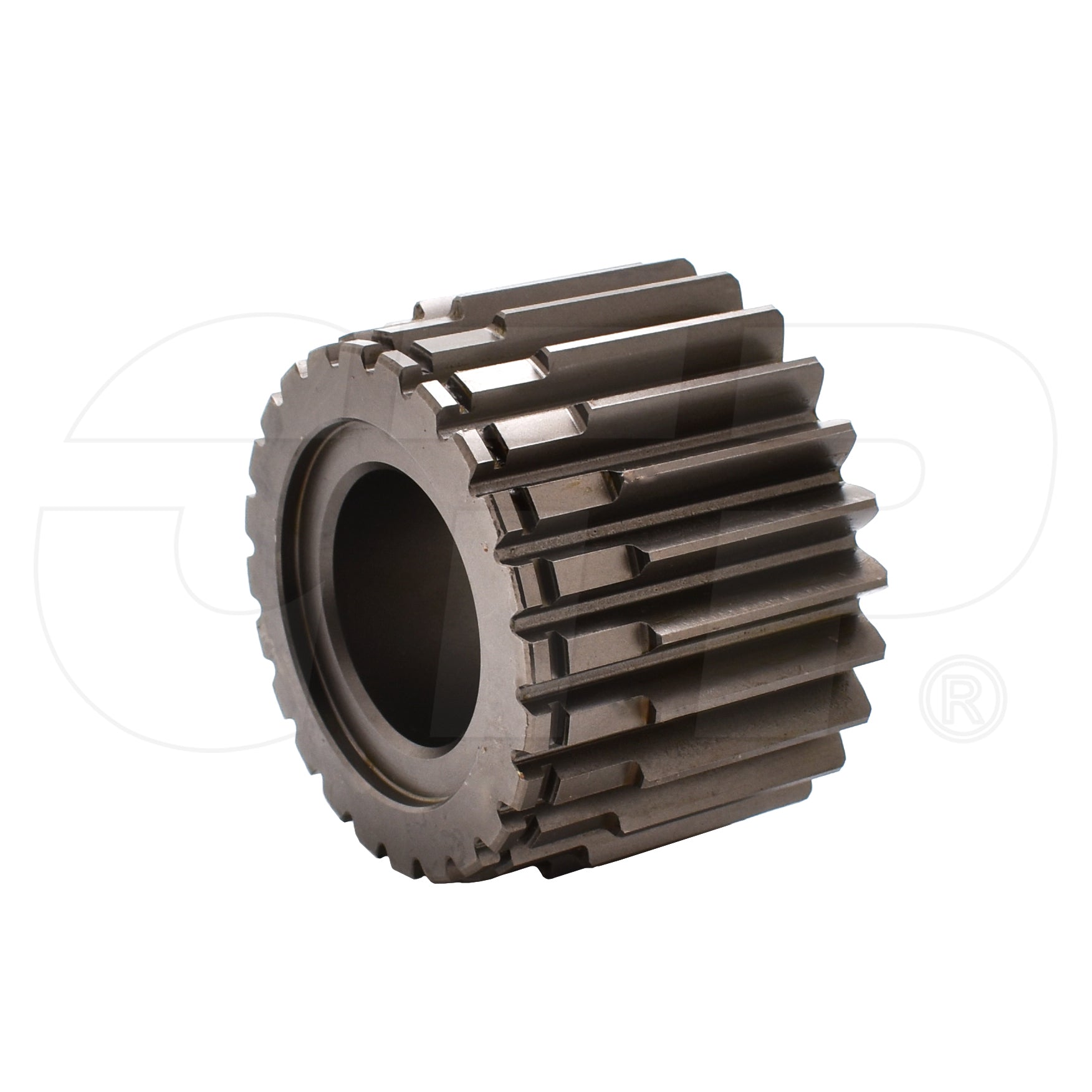

One New Aftermarket Replacement Final Drive Sun Gear for Caterpillar (Cat) Excavators
This sun gear is a critical component of the planetary gear set within the final drive assembly on Caterpillar hydraulic excavators. The sun gear works in conjunction with planet gears and the ring gear to transmit power from the travel motor to the undercarriage, driving the machine's track. Replaces Caterpillar (Cat) OEM part number 1695590 (also formatted as 169-5590).
Specifications
- Weight: approximately 11.66 lbs
- Type: External involute spur sun gear
- Material: Hardened steel
- Application: Final drive planetary gear set
Compatible Models
Caterpillar Excavators: 320C, 320C FM, 320D, 320D FM, 320D FM RR, 322C, 322C FM, 323D LN, 323D SA, 323E L, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 325C, 325C FM, 325D, 325D L, 325D MH, 326D L, 326D2, 326D2 L, 326F LN, 326FL, 329D, 329D L, 329D LN, 329D2, 329D2 L, 329E, 329EL, 329ELN, 329F L, 329F LN, 330D2 L, 330FL, 323D S, 323E LN, 323E SA, 320D2 FM
Caterpillar Engines (machine application): 3066, 3126, 3126B, C6, C6.4, C7
Replaces Part Number(s):
1695590, 169-5590
New aftermarket replacement part - not remanufactured, not used.
