168-0015 H-Link Fits CAT E110B, E120B, 311, 311B, 311C, 312, 312B
168-0015 H-Link Fits CAT E110B, E120B, 311, 311B, 311C, 312, 312B
Regular price
$2,251.00 CAD
Regular price
Sale price
$2,251.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

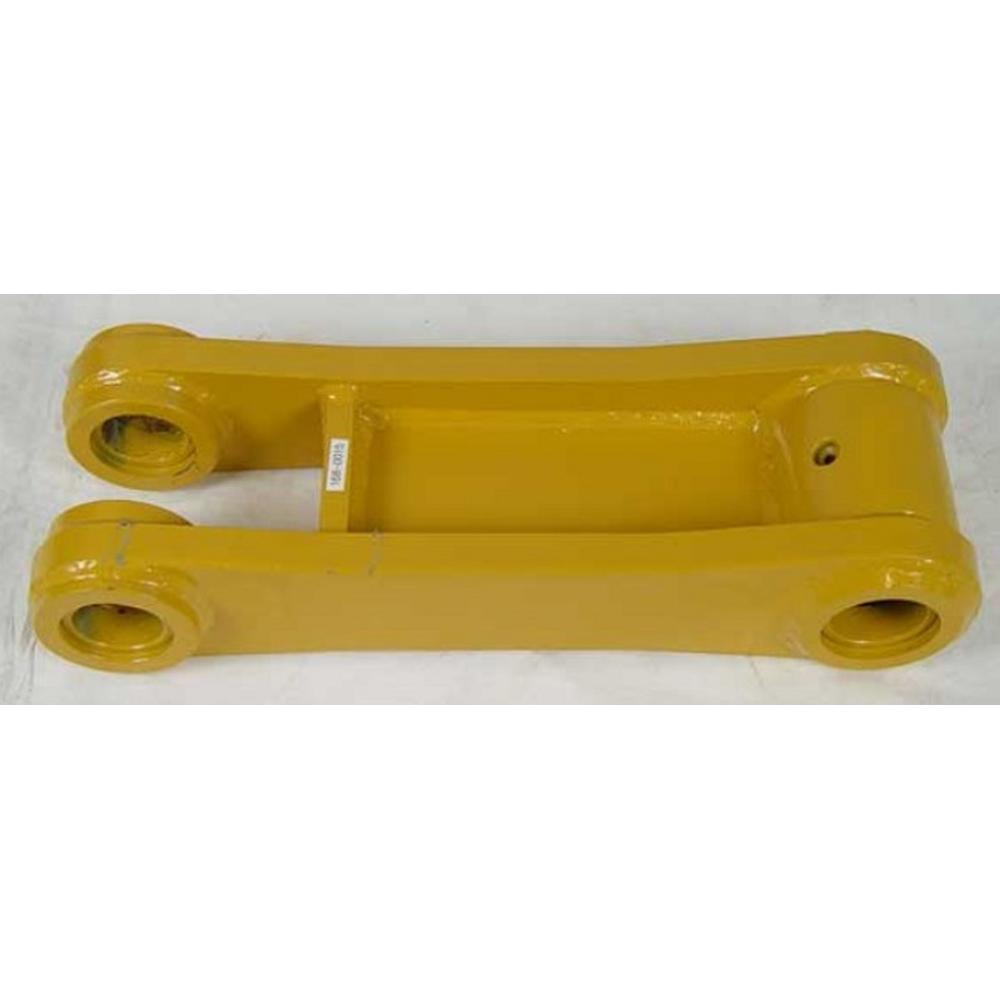

One New Aftermarket Replacement Bucket H-Link for Caterpillar (Cat) Excavators
This aftermarket replacement Bucket H-Link connects the stick (dipper arm) to the bucket linkage in the boom assembly on Caterpillar (Cat) compact and mid-size excavators. The H-Link is a critical front-end attachment component subject to high-impact and side-load forces during digging cycles. This part includes pre-installed bushings and is a direct replacement for Caterpillar OEM part number 168-0015.
Specifications
- Pin Hole Center-to-Center: 20-1/4" (514 mm)
- Ear Width: 8-5/8" (219 mm)
- ID at Cylinder End: 2.36" (60 mm)
- ID at Bucket End: 2.56" (65 mm)
- Weight: Approx. 120 lbs (54.4 kg)
- Includes pre-installed bushings
Compatible Models
Caterpillar Excavators - E-Series: E110B, E120B
Caterpillar Excavators - 311/312/314 Series: 311, 311B, 311C, 312, 312B, 312C, 312CL, 314C CR, 314C LCR
Replaces Part Number(s):
168-0015, 1680015
New aftermarket replacement part - not remanufactured, not used.
