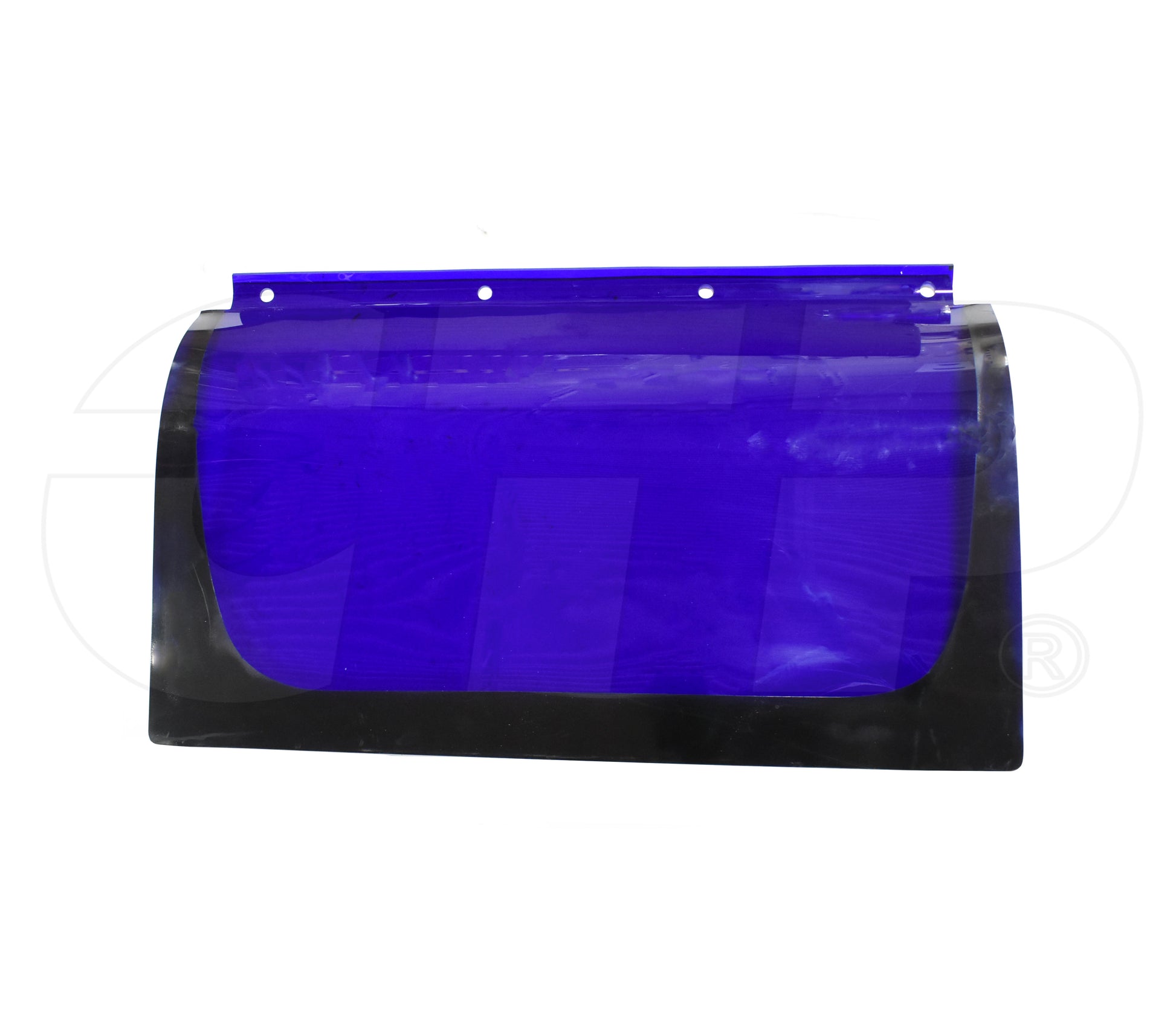

1674067 Glass-Top Fits Caterpillar Models

One New Aftermarket Replacement Top Safety Glass for Caterpillar (Cat) Excavators and Wheeled Excavators

This aftermarket replacement cab roof glass panel fits the top opening of the operator cab on a wide range of Caterpillar (Cat) C- and D-series excavators, wheeled excavators, mobile hydraulic power units, and front shovels. The glass provides operator visibility from above, protects against weather, and conforms to Federal Standards for automotive safety glazing materials.

Specifications

• Overall Length: 860 mm (33.86 in)
• Overall Width: 510 mm (20.08 in)
• Thickness: 6 mm (0.24 in)
• Light green tinted polycarbonate plastic safety glass
• Conforms to Federal Standards for automotive safety glazing materials

Compatible Models

Caterpillar Excavator: 312C, 312D, 315C, 315D L, 318C, 319C, 319D, 320C, 322C, 323D L, 323D LN, 324D, 324D LN, 325C, 325D, 325D L, 329D L, 330C, 330C L, 330D, 330D L, 330D LN, 330D MH, 336D L, 336D LN, 345C, 345C L, 345D, 345D L, 365C, 365C L, 365C L MH, 374D L, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L

Caterpillar Wheeled Excavator: M313C, M313D, M315C, M315D, M316C, M316D, M318C, M318C MH, M318D, M318D MH, M322C, M322D, M322D MH, M325C MH, M325D L MH, M325D MH, M330D

Caterpillar Front Shovel: 385C

Caterpillar Mobile Hydraulic Power Unit: 323D LN, 324D LN, 325C, 325D, 330C, 330D, 345C L, 365C L, 385C

Replaces Part Number(s):

1674067, 167-4067

Aftermarket Interchange Numbers

CA1674067

New aftermarket replacement part - not remanufactured, not used.
