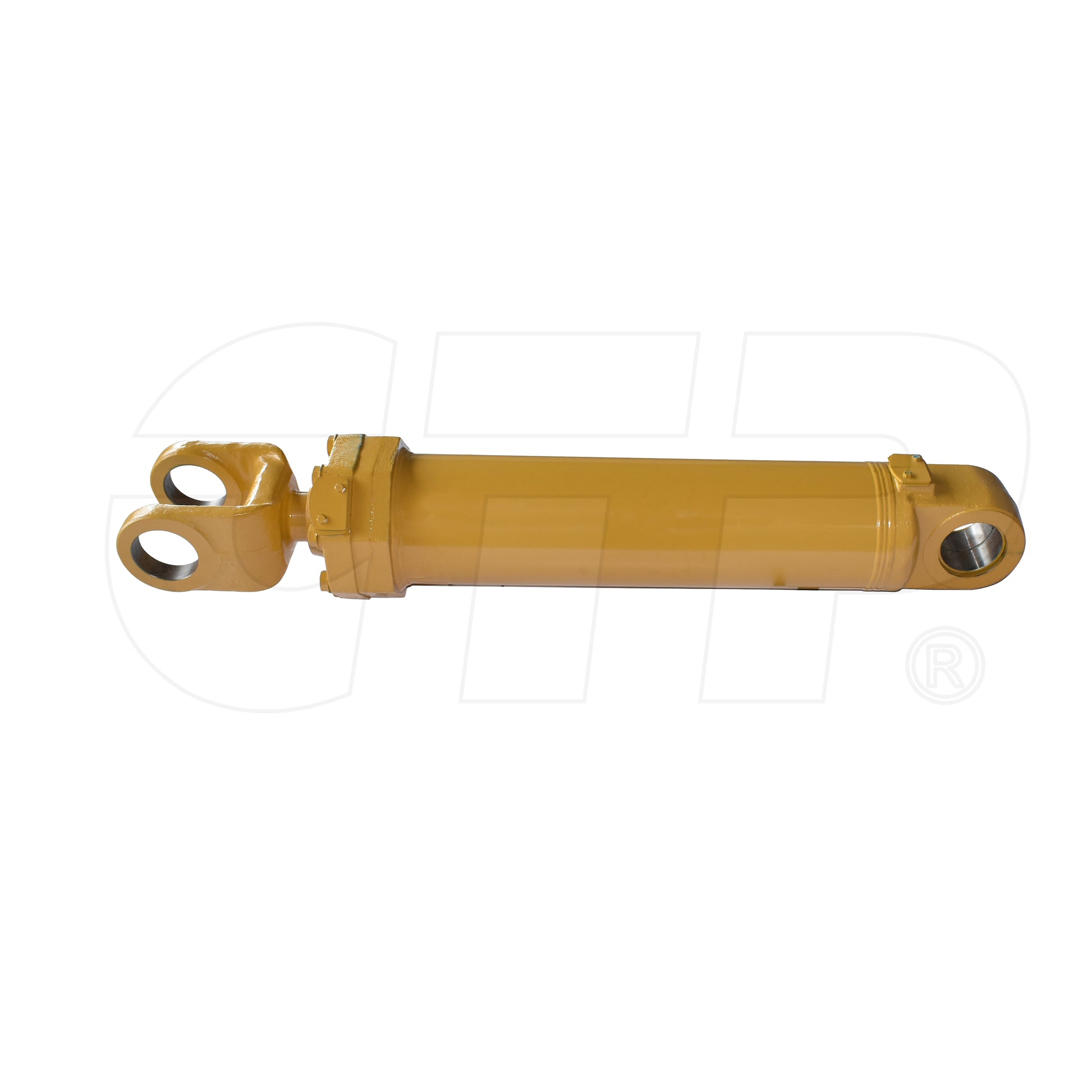

One New Aftermarket Replacement Hydraulic Lift Cylinder (RH) for Caterpillar (Cat) R1600 Series Load Haul Dump Underground Loaders
This aftermarket replacement hydraulic lift cylinder group (Cylinder Gp-Lift) is the right-hand (RH) lift cylinder for Caterpillar R1600-series underground Load Haul Dump (LHD) mining loaders. It is part of the right-hand lift cylinder and seal assembly (1620330) in the hydraulic system and provides the lifting force for the loader bucket. This is a complete cylinder group with bolted head design.
Specifications
- Bore Diameter: 190.5 mm (7.5 in)
- Stroke: 749.5 mm (29.5 in)
- Closed Length: 1389.5 mm
- Rod Diameter: 88.9 mm (3.5 in)
- Pin Size - Cap End: 107.95 mm
- Pin Size - Rod Eye: 107.95 mm
- Head Type: Bolted
- Weight: approx. 542 lbs (245 kg)
- Side: Right-Hand (RH)
Serial Number Applicability
Caterpillar R1600: Serial numbers 9EW00001-Up and 9XP00001-Up. Verify serial number compatibility before ordering.
Compatible Models
Caterpillar (Cat) R1600 Series Load Haul Dump (LHD): R1600, R1600G, R1600H
Replaces Part Number(s):
1586586, 158-6586
New aftermarket replacement part - not remanufactured, not used.
