1543274C1 Cylinder Seal Kit 2 in Rod 3-1/2 in Bore Case 580B 580C 580D
1543274C1 Cylinder Seal Kit 2 in Rod 3-1/2 in Bore Case 580B 580C 580D
Couldn't load pickup availability

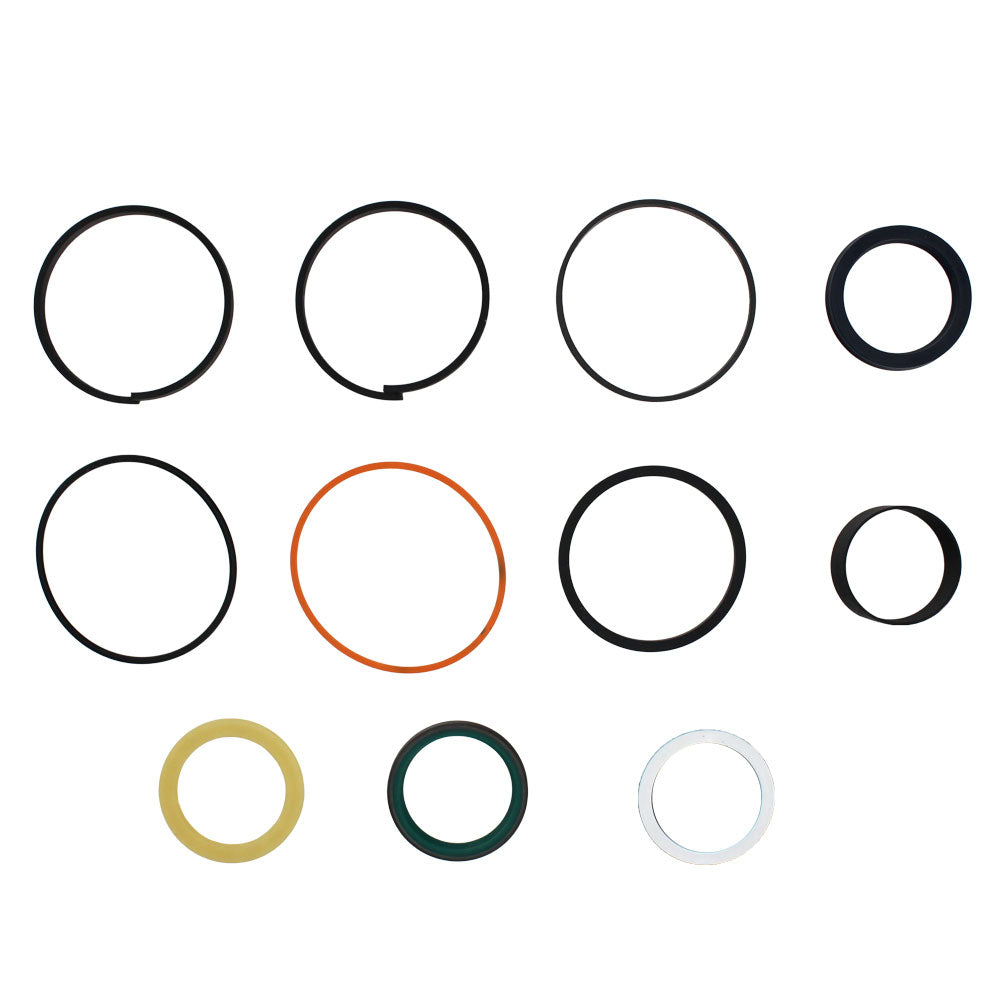

Hydraulic cylinder seal kit for a 2 in rod running in a 3-1/2 in bore. Eleven pieces in the bag, ten of which go into any one cylinder, with a spare flat buffer to cover the other configuration.
Specifications
- Rod diameter: 2 in
- Bore diameter: 3-1/2 in
- Rod seal: U-seal with buffer
- Piston seal: piston seal, one piece piston
- Wiper: press-in
- Pieces: 11, of which 10 are used per application
Cross reference
- 1543274C1
- G101288
- G109453
- G105546
Cylinder numbers
G101210, G101211, G103457 and G104844
Applications
Fits Case backhoe loaders 480B, 480C, 480D, 480D LL, 480E, 480E LL, 480F and 480F LL on the backhoe dipper cylinder, 580B with the Model 35 backhoe, 580C, 580D, 580 Super D, 580F and 580G on the backhoe bucket cylinder, and 680C, 680E, 680G, 680H, 680K and 680L on the loader lift.
Fits Case crawler dozers and loaders 450, 450B, 450C and 550, and the 850E and 855E on the loader bucket and clam cylinders.
Check that your piston is one piece before ordering, because a two piece piston takes a different kit. Measure the rod and the bore rather than going by the machine, since one machine carries several cylinder sizes.
Aftermarket replacement part. Not manufactured by, sponsored by or affiliated with any equipment maker named here. All makes, models and numbers are listed for reference only.
