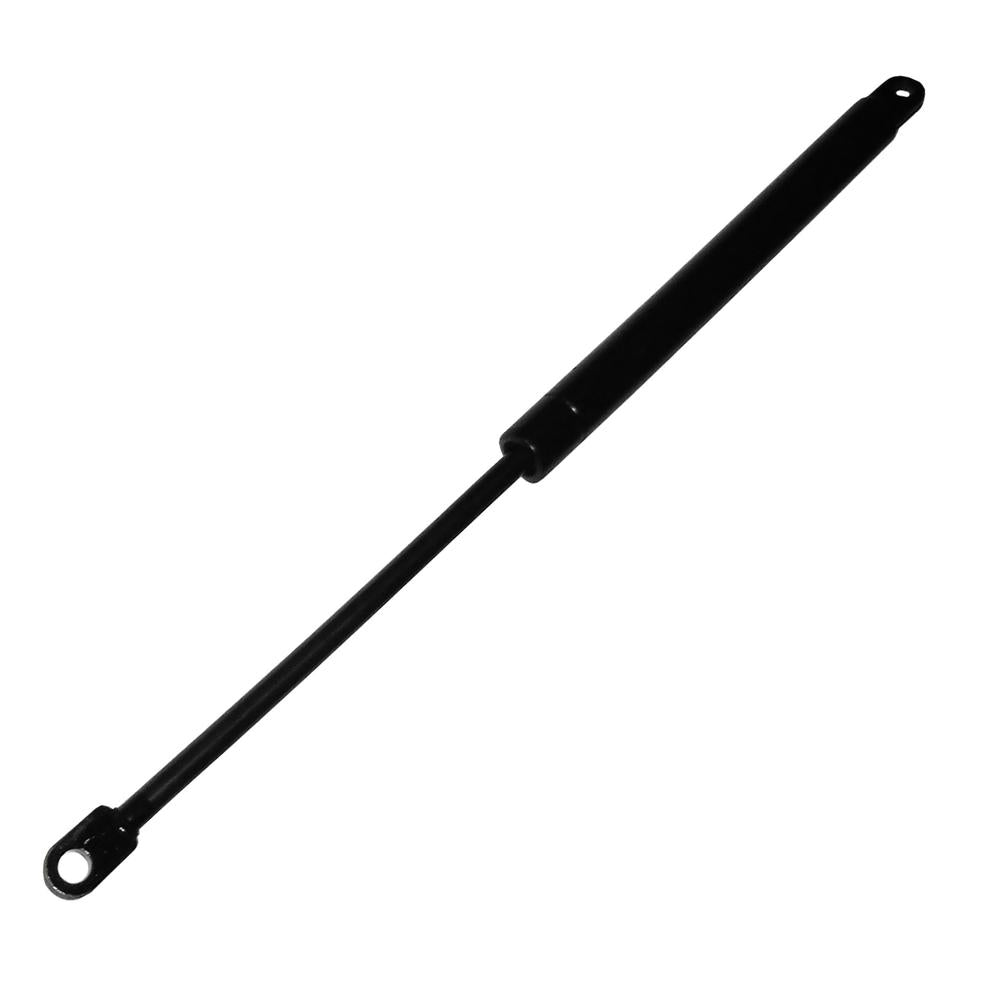

1531490C1 Gas Strut Hood Fits Case IH 5130 5140 5230 5240 5250 Tractors

Name: 1531490C1 Gas Strut Hood Fits Case IH 5130 5140 5230 5240 5250 Tractors
SKU: 1531490C1
Price: 35.0 USD
Availability: InStock

1531490C1 Gas Strut Hood Fits Case IH 5130 5140 5230 5240 5250 Tractors

$35.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Gas Strut (Hood) Fits Case IH (Fits Case/International Harvester) Maxxum Series Tractors

This aftermarket replacement hood gas strut (gas spring) supports the hood on Fits Case IH Maxxum series tractors, holding it open during engine service and inspection. The strut mounts with metal eyelet fittings at both ends and delivers consistent pneumatic force to keep the hood raised safely.

Specifications

Total Length: 400mm (15.75 in.)
Stroke: 162mm (6.38 in.)
Force: 330 N
Cylinder Outer Diameter: 18mm
Ram Diameter: 8mm
End Fitting A: Metal eyelet, 8mm diameter, 5mm wide
End Fitting B: Metal eyelet, 8mm diameter, 5mm wide

Compatible Models

Fits Case IH Maxxum Series: 5130, 5140, 5150, 5230, 5240, 5250

Note: Model 5120 is listed in catalog data but has not been confirmed by independent sources for this specific part number -- verify compatibility before ordering for a 5120.

Replaces Part Number(s):

1531490C1, T103183, AS161764AP

Aftermarket Interchange Numbers

Hy-Capacity HA1531490

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

5120, 5230, 5130, 5140, 5150, 5240, 5250

Additional Information:

Total length: 400mm, Stroke: 162mm, Pressure N: 330(N), End Fittings A: A4 Eyelet (Metal) 8mm diam, 5mm wide, End Fittings B: A4 Eyelet (Metal) 8mm diam, 5mm wide, Cylinder Outer Ø: 18mm, Ram Ø: 8mm.
