15101 Universal Fit Tapered Bearing Cone
15101 Universal Fit Tapered Bearing Cone
Couldn't load pickup availability

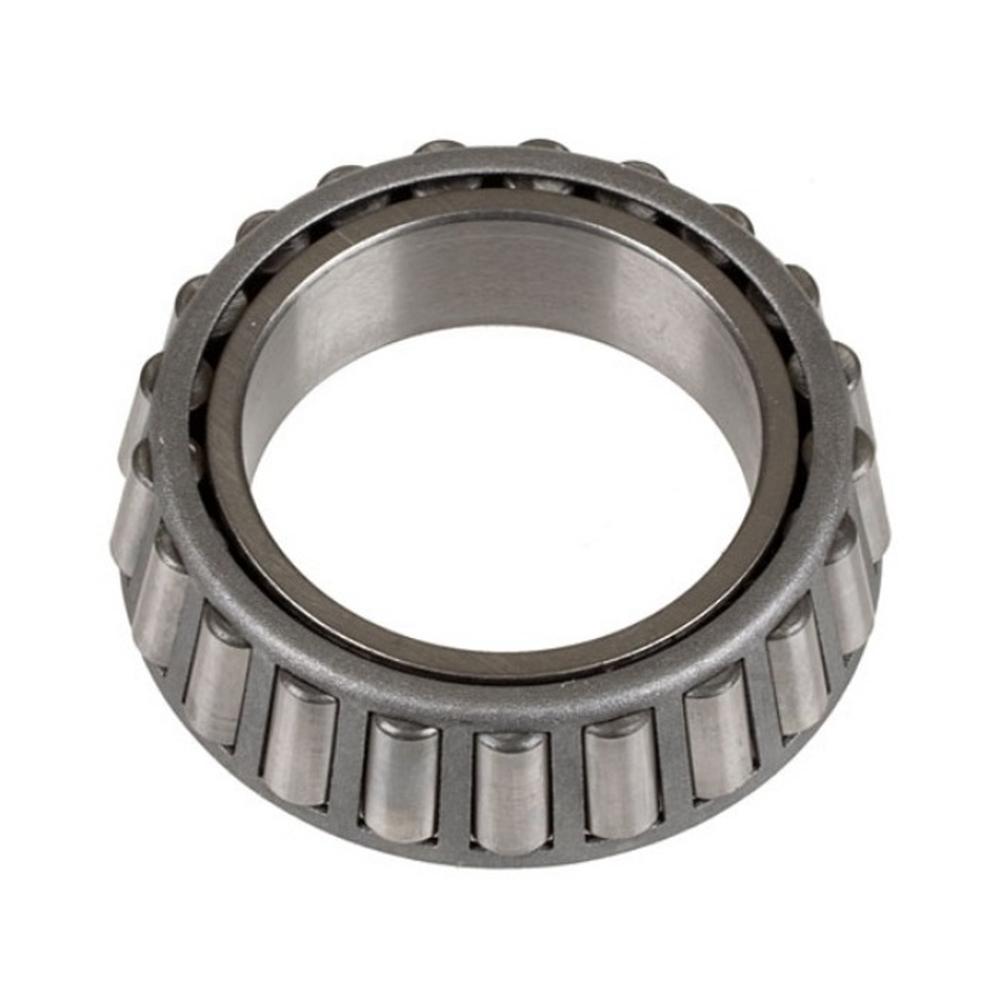

One New Aftermarket Replacement 15101 Tapered Roller Bearing Cone - Universal Fit
This tapered roller bearing cone (inner race assembly) is a widely used imperial-series bearing designed to handle both radial and axial loads. It is used across a broad range of agricultural and construction equipment in wheel hubs, transmission bearing positions, PTO supports, driveline assemblies, driveshaft support areas, steering pivot points, and axle applications. The cone pairs with a matching cup (outer race) - compatible cups include 15244, 15245, 15250, and 15250X (sold separately). This is the cone only.

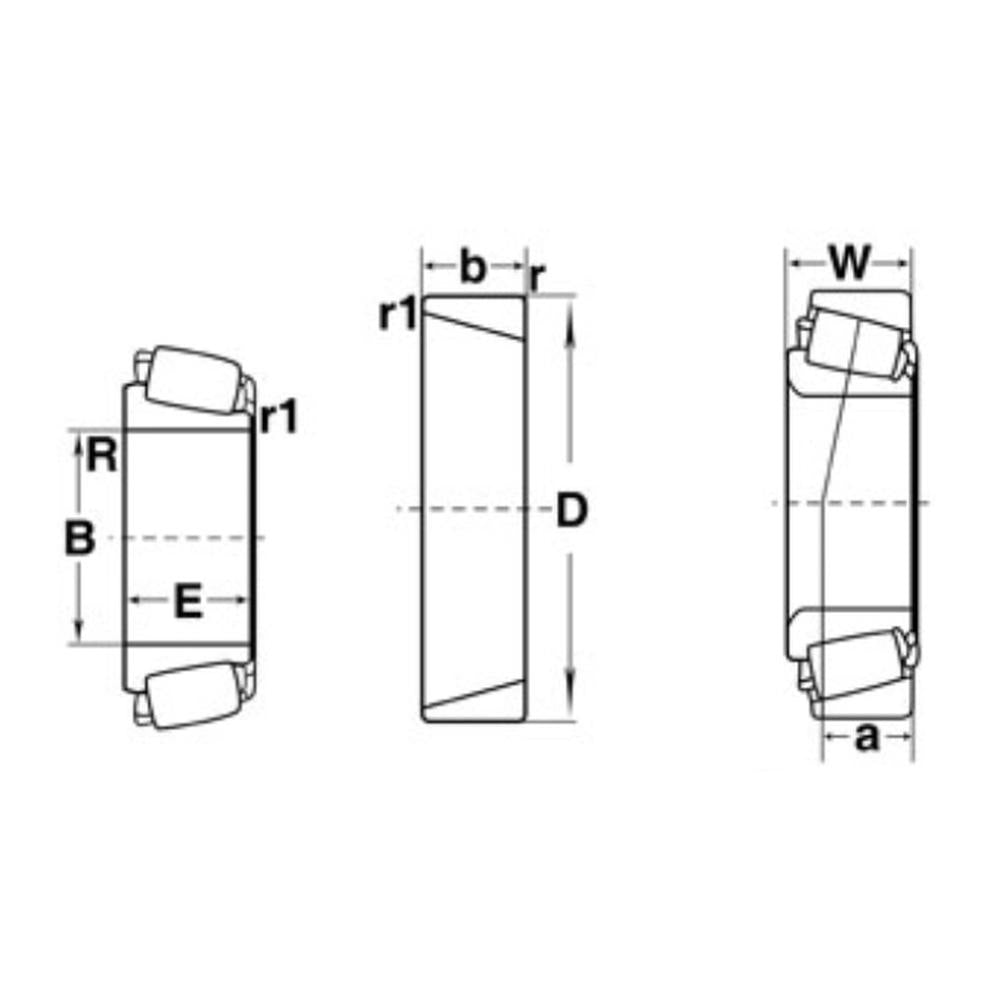

Specifications
- Bore (Inner Diameter): 1.000 in (25.4 mm)
- Cone Width: 0.812 in (20.6 mm)
- Outer Diameter (with cup 15245): 2.440 in (61.999 mm)
- Fillet Radius: 0.030 in
- Bearing Type: Single Tapered Roller Bearing Cone
- Compatible Cups: 15244, 15245, 15250, 15250X
Compatible Equipment
Fits John Deere (Fits JD) Tractors: 2510, 2520, 3010, 3020, 4010, 4030 and other models using this bearing in transmission, wheel hub, driveline, and PTO applications
Fits Massey Ferguson Tractors: 55, 95, 99, 105 and other models using this bearing in wheel hub, axle, and driveline positions
Also fits: Fits Allis Chalmers, Fits New Holland, Hesston, and GEHL equipment in applicable bearing positions. This is a universal-fit bearing used across many brands and machine types including tractors, combines, balers, loaders, and harvesters.
Replaces Part Number(s):
15101, 15101TIM, JD8190, 212615M1, 140868, 520032, 70225608, 710244
New aftermarket replacement part - not remanufactured, not used.
