Clutch Rebuild Kit Fits John Deere Replaces 14H994

Models This Part Fits:

A AO AR

Additional Information:

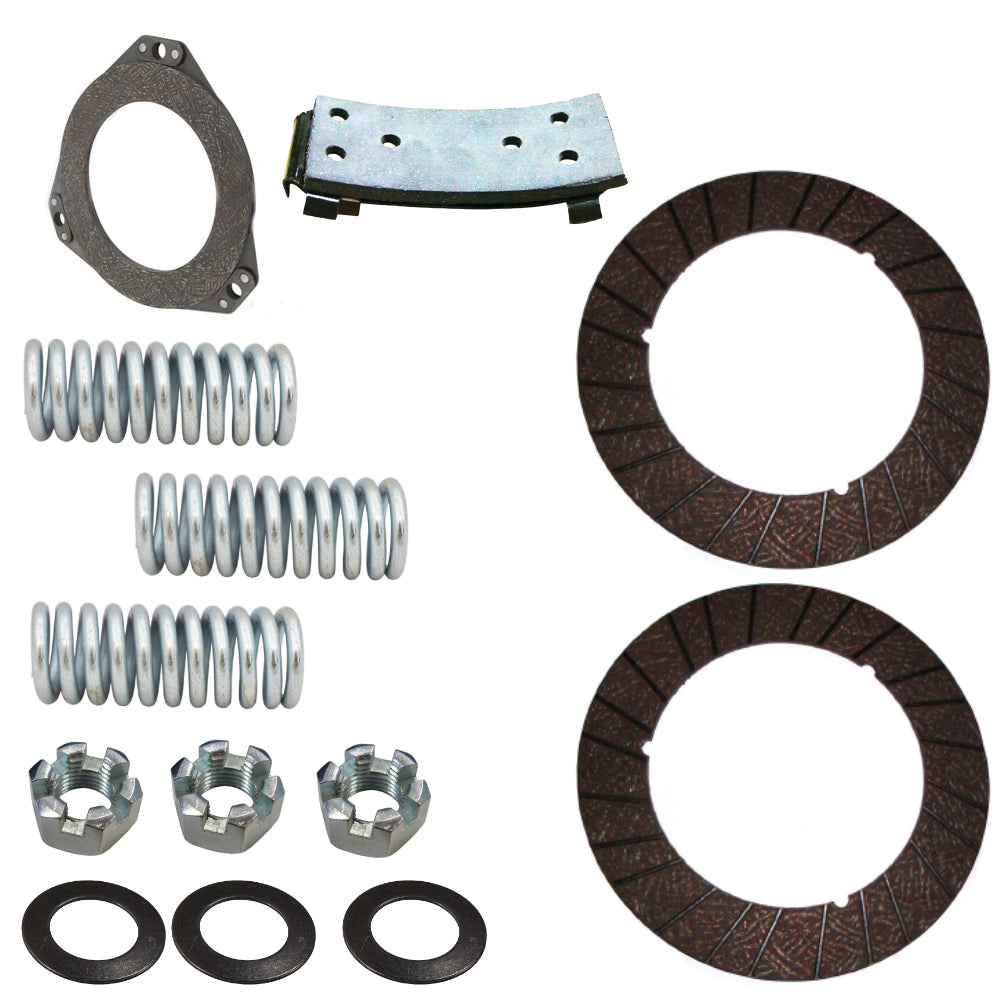

(1) Facing Clutch Pulley 10" disc outside diameter 0.393" thick Replaces Part Numbers: AA5082R, AA6129 (1) Brake Pad Pulley Non-asbestos lining with countersunk brass rivets Replaces Part Numbers: AB4748R, AF4748R, RE29790 (2) Facing Clutch Disc 10" outside diameter 6-3/4" inside diameter 0.150" thick The side with the grooves faces the driving disc 1-5/8" lining width Replaces Part Numbers: R90215, C614R (3) Clutch Disc Adjusting Spring 1.915" long 0.740" outside diameter 0.500" inside diameter 0.120" wire thickness The clutch disc adjusting spring mounts to the outer cast iron adjusting disc 3 springs used per tractor Replaces Part Numbers: A352R (3) Clutch Adjusting Nut 1/2" - 20 NF Grade 5 Zinc Slotted hex nut, 1/2" 3 used per tractor Replaces Part Numbers: B3279R, AA4967R, A335R, 14H994 (3) Clutch Pressure Plate Spring (Belleville) Washer 0.572" inside diameter 0.937" outside diameter 0.035" thick Spring steel Torque initially to 15 FT pounds, then adjust as needed Use to smooth out the hand clutch engagement 3 used per tractor Replaces part Numbers: JDS1626

Reference Numbers:

B3279R, AA4967R, A335R, 14H994
