One New Aftermarket Replacement Hydraulic Cylinder Head for Caterpillar (Cat) Motor Graders

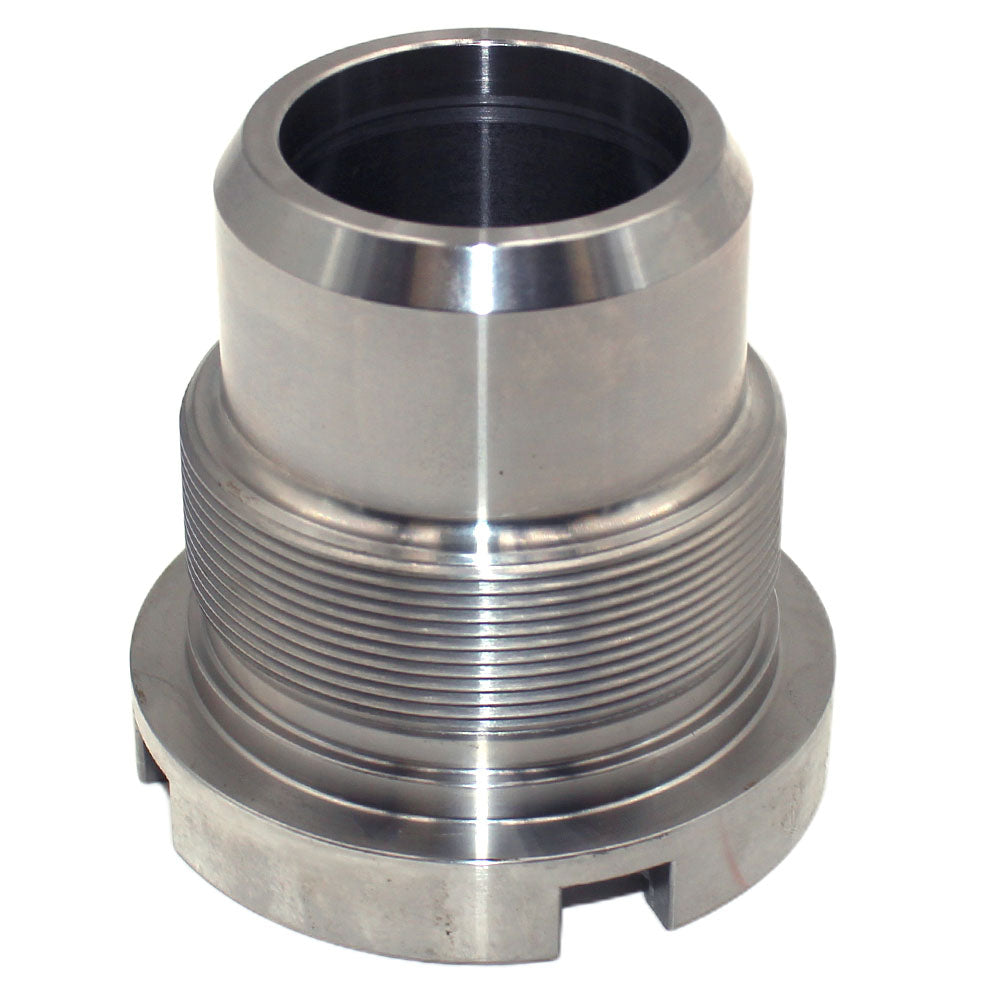

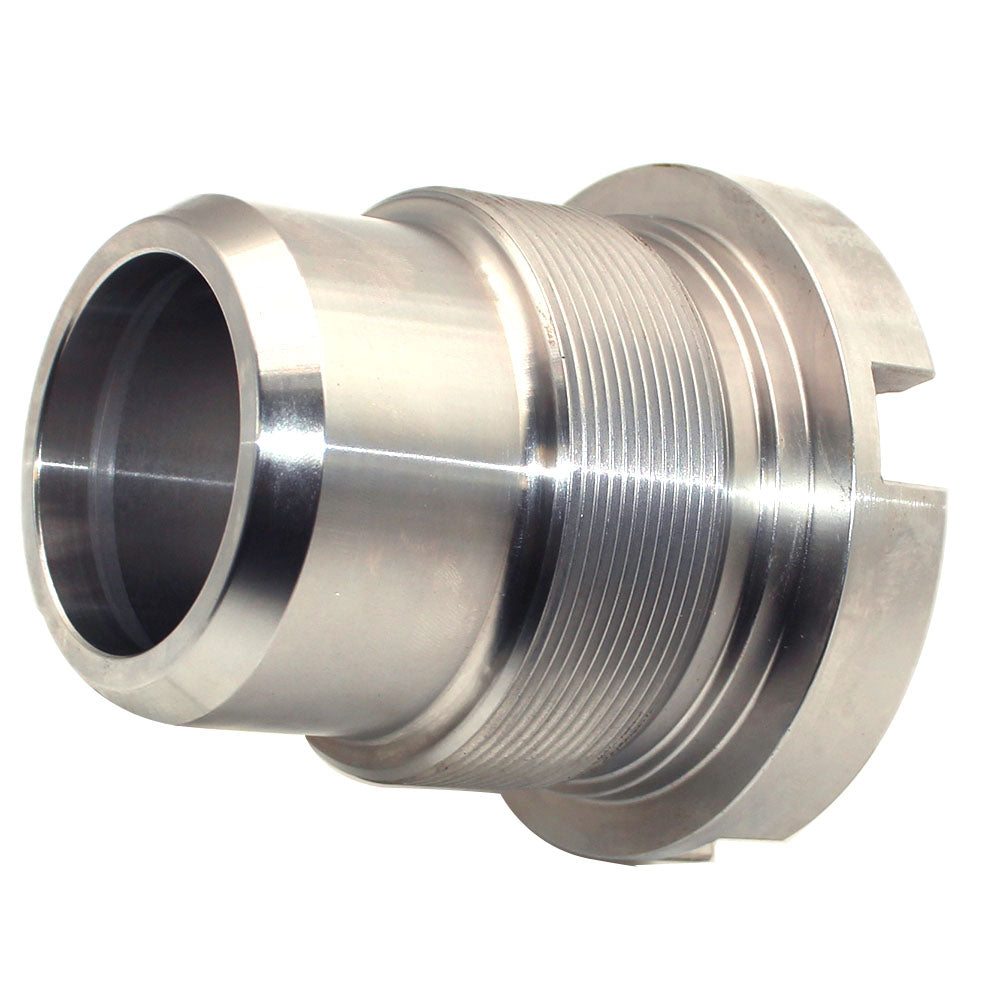

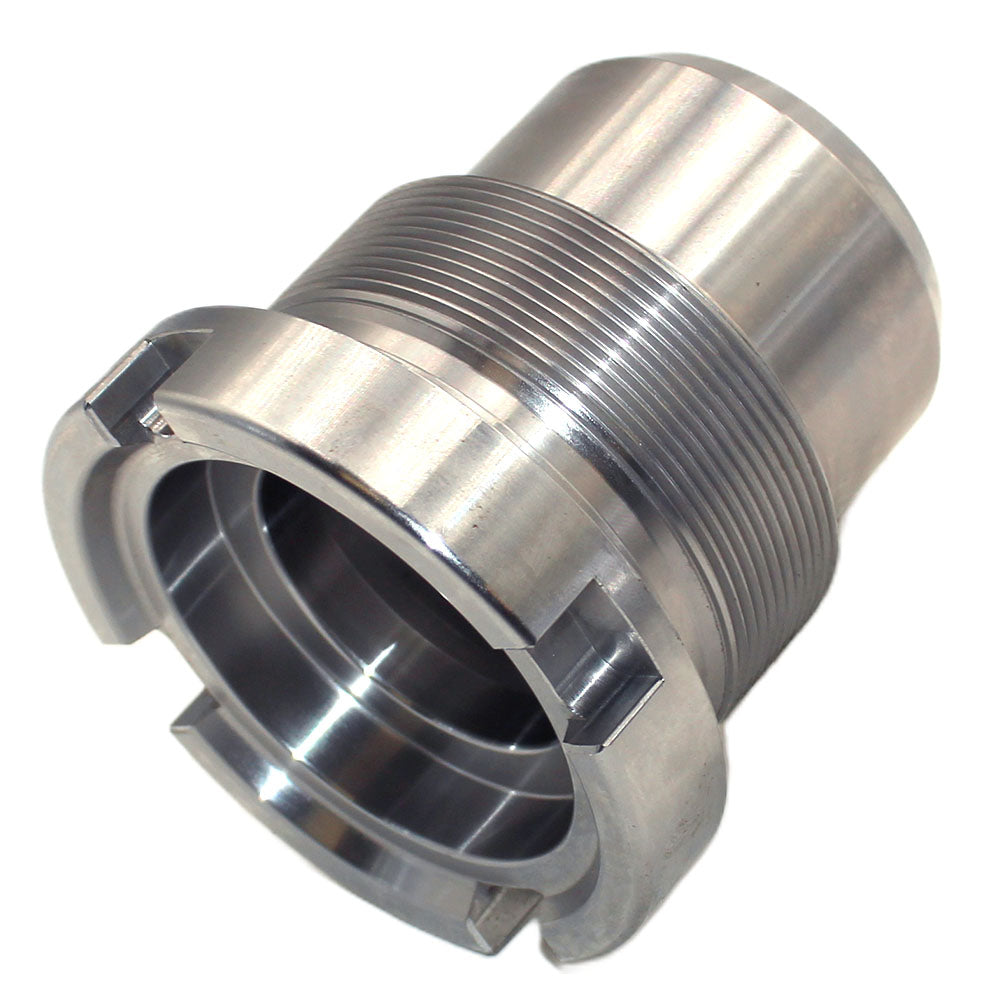

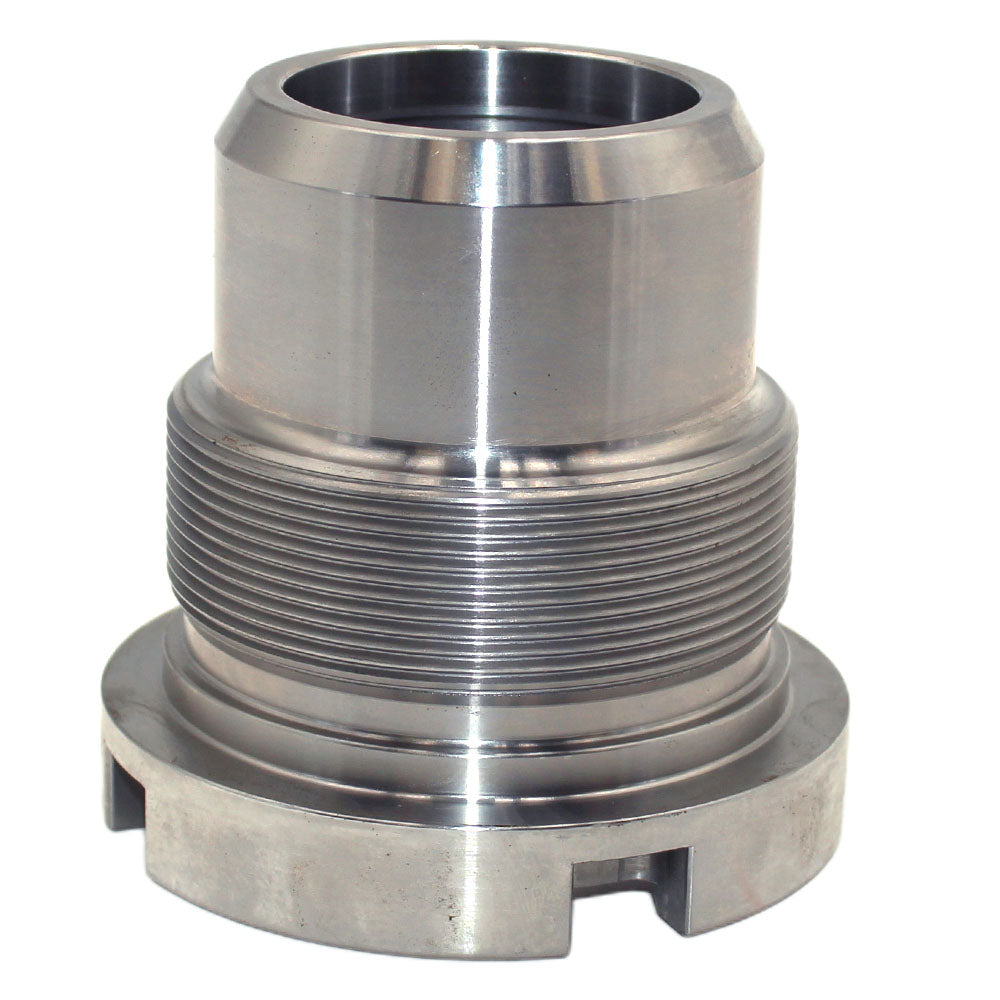

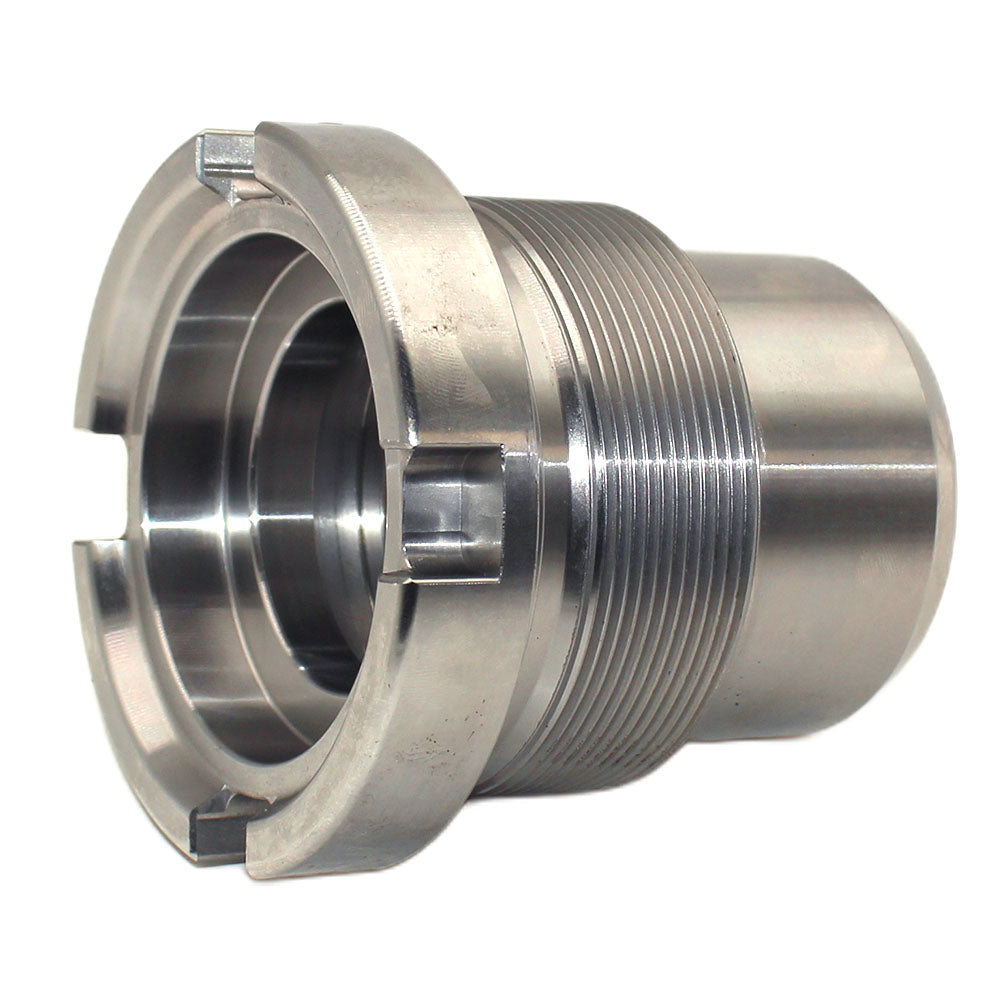

This aftermarket replacement hydraulic cylinder threaded gland head (Head-Hyd Cylinder) is a precision-fit component used in the hydraulic cylinder assemblies on Caterpillar motor graders. It replaces OEM part number 1482593 (also formatted as 148-2593) and is rated to withstand high hydraulic oil pressure in demanding construction applications.
Specifications
- Outer Diameter (Flange): 98mm
- Insert Diameter: 80.8mm
- Insert Length: 79mm
- Inside Diameter: 51.13mm
- Weight: Approximately 3 lbs (1 kg)
- Material: Ductile Iron Casting
Compatible Models
Caterpillar Motor Graders: 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 143H, 160G, 160H, 160H ES, 160H NA, 160K, 160M, 160M 2, 160M 3, 160M 3 AWD, 163H, 163H NA
Replaces Part Number(s):
1482593, 148-2593, CA1482593
New aftermarket replacement part - not remanufactured, not used.
