1407649 Piston-Seal Fits Caterpillar Models
1407649 Piston-Seal Fits Caterpillar Models
Couldn't load pickup availability
One New Aftermarket Replacement Piston Seal for Caterpillar (Cat) Construction Equipment

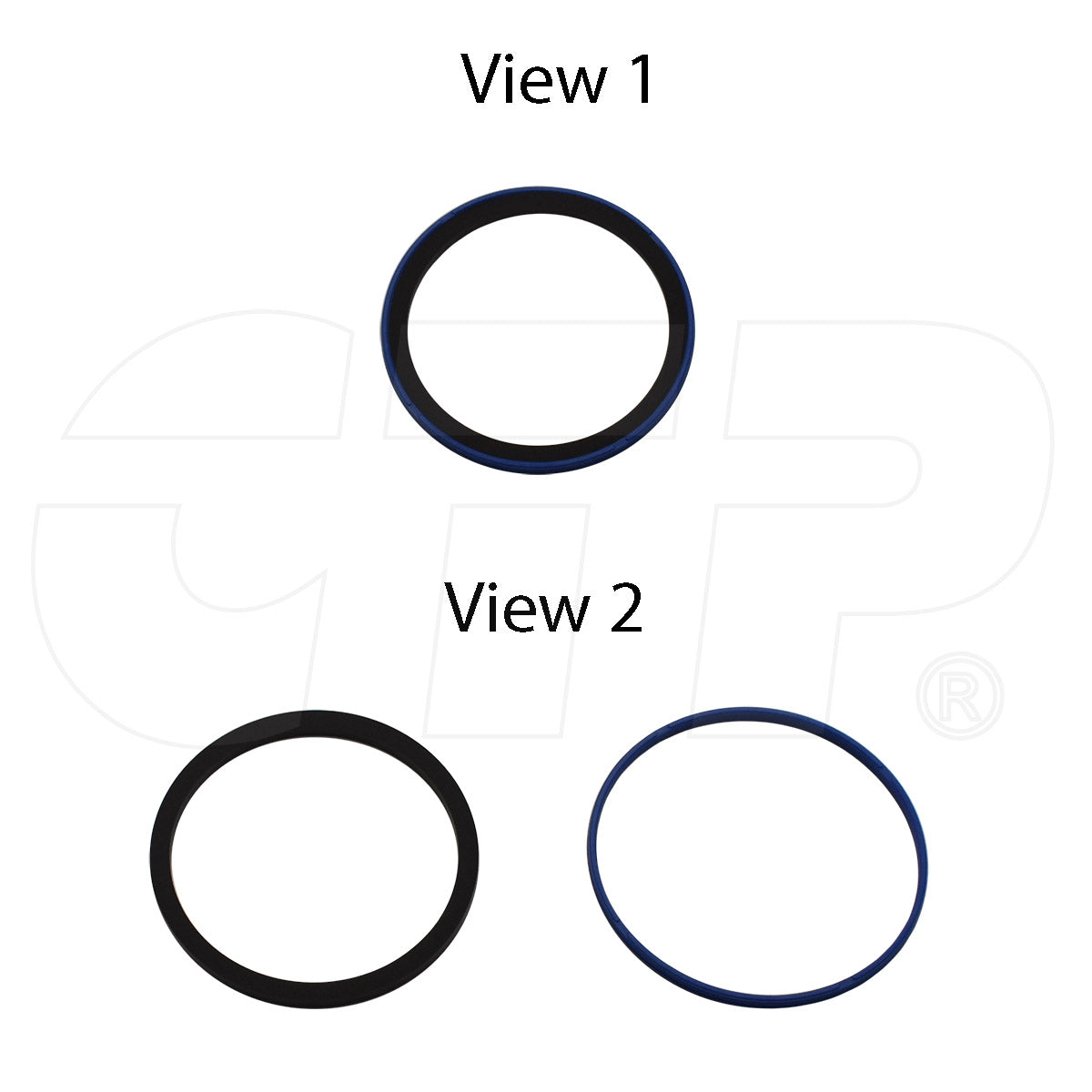

This hydraulic cylinder piston seal (Caterpillar part 1407649, also formatted as 140-7649) is a double-acting KR-type seal used in the hydraulic cylinders of Caterpillar backhoe loaders, skid steers, and track-type tractors. The seal seats in the piston groove and prevents hydraulic fluid from bypassing the piston, maintaining pressure and enabling smooth cylinder extension and retraction.
Specifications
- Type: KR double-acting hydraulic piston seal
- Material: Polyurethane (PU) slide ring with NBR elastomer energizer element
- Dimensions: 100.00 mm OD x 84.50 mm ID x 6.00 mm width
- Max Pressure: 300 bar
- Temperature Range: -35 to +110 degrees C
- Media: Mineral oil-based hydraulic fluids
Compatible Models
Caterpillar Backhoe Loaders (E Series): 416E, 420E, 422E, 428E, 430E, 432E, 434E, 442E, 444E, 450E
Caterpillar Backhoe Loaders (F Series): 416F, 420F, 422F, 428F, 430F, 432F, 434F, 444F, 450F
Caterpillar Track-Type Tractors / Skidders: 517, 527
Caterpillar Compact Wheel Loaders: 906, 908
Caterpillar Telehandlers: TH220B
Replaces Part Number(s):
1407649, 140-7649
New aftermarket replacement part - not remanufactured, not used.
