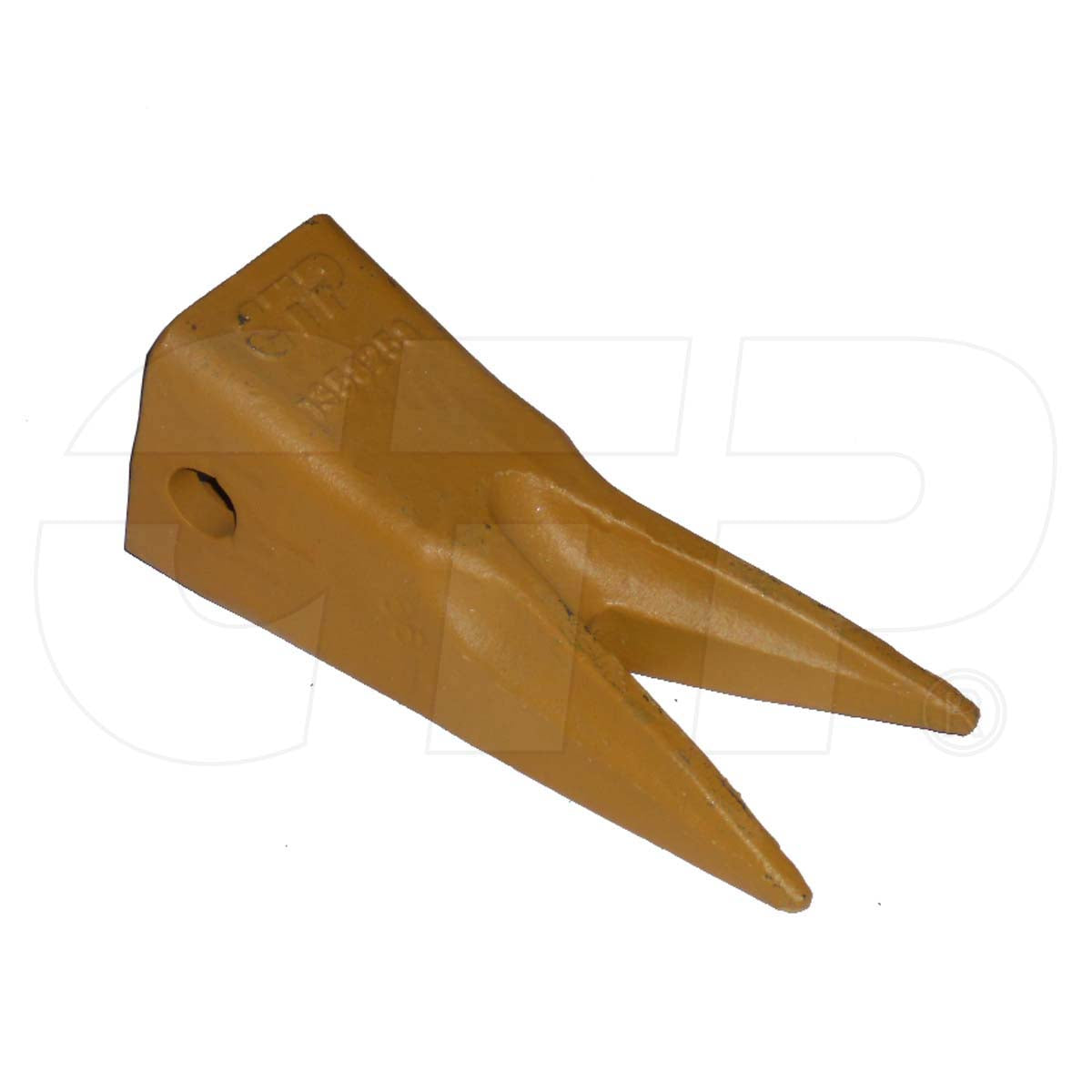

1358258 Tip-Twin Sharp Fits Caterpillar Models

One New Aftermarket Replacement Twin Sharp Tip (Tip-Twin Sharp) for Caterpillar (Cat) Excavators, Wheel Loaders, and Backhoe Loaders

This aftermarket replacement Tip-Twin Sharp (1358258 / 135-8258) is a double-point twin tiger bucket tooth tip designed for the Caterpillar (Cat) J250 tooth series. The twin tiger profile delivers excellent penetration on hard and compact surfaces and is typically used on the outer sides of the bucket to break up material and clear the sides, working in combination with single-point tiger tips in the center sections. Secured with a side pin and sleeved retainer.

Specifications

• Part Type: Twin Sharp Bucket Tip (Twin Tiger Ground Engaging Tool)
• Tooth System: Caterpillar J250 J-Series, side pin mount
• Dimensions: approx. 8.27 in. L x 2.76 in. W x 3.54 in. H (21 cm x 7 cm x 9 cm)
• Weight: approx. 8.2 - 8.3 lbs.
• Pin Required: 9J2258
• Retainer Required: 8E6209 sleeved retainer

Compatible Models

Caterpillar (Cat) Excavators - J250 Series: 205L, 212, 215B, 215C, 215D, 224B, 311F, 312E, 313D, 313F, 314F, 315, 315C, 316E, 318C, 320E, 320G, 320N, 320S, 321B, 321D, 322C, 322N, 323, 323F, 325, 325F, 330, 330B, 235B, 235C, 235D, E200B, M317D, M318M

Caterpillar (Cat) Wheel Loaders - J250 Series: 938G, 950B, 950E, 950G, 950H, 955L, 963B, 963C, 963L

Note: Fits all equipment using Caterpillar J250-series adapters. Verify adapter fitment before ordering.

Replaces Part Number(s):

1358258, 135-8258

Aftermarket Interchange Numbers

1U3252WTL, 1U-3252WTL, 1U3252WT, 1U-3252WT, 1010707, 101-0707

New aftermarket replacement part - not remanufactured, not used.
