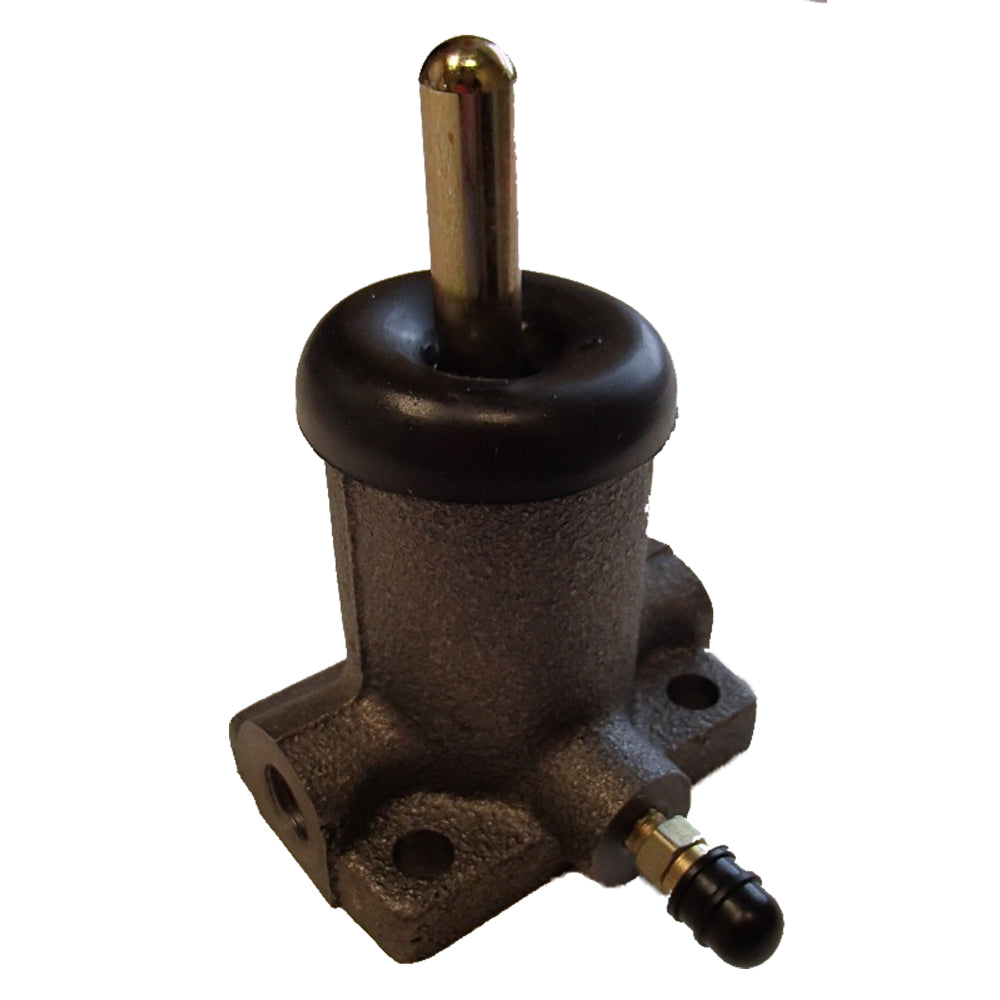

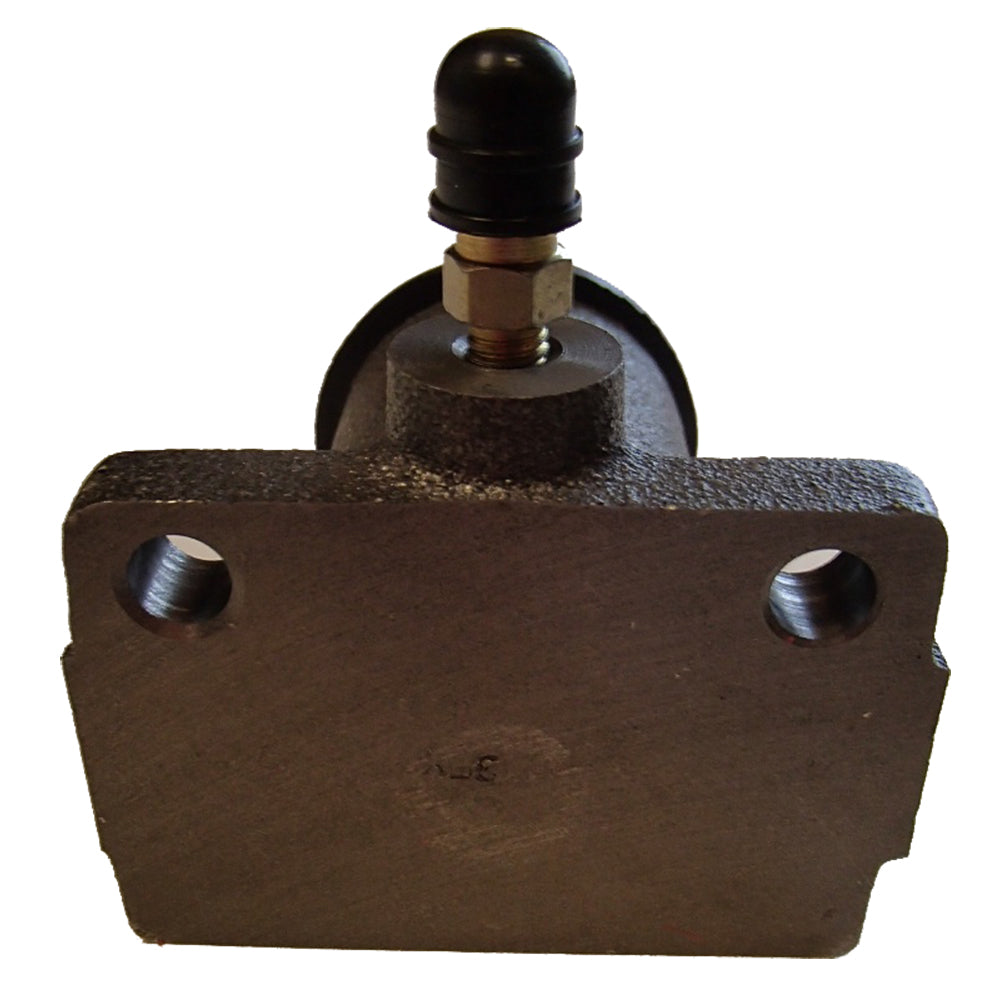

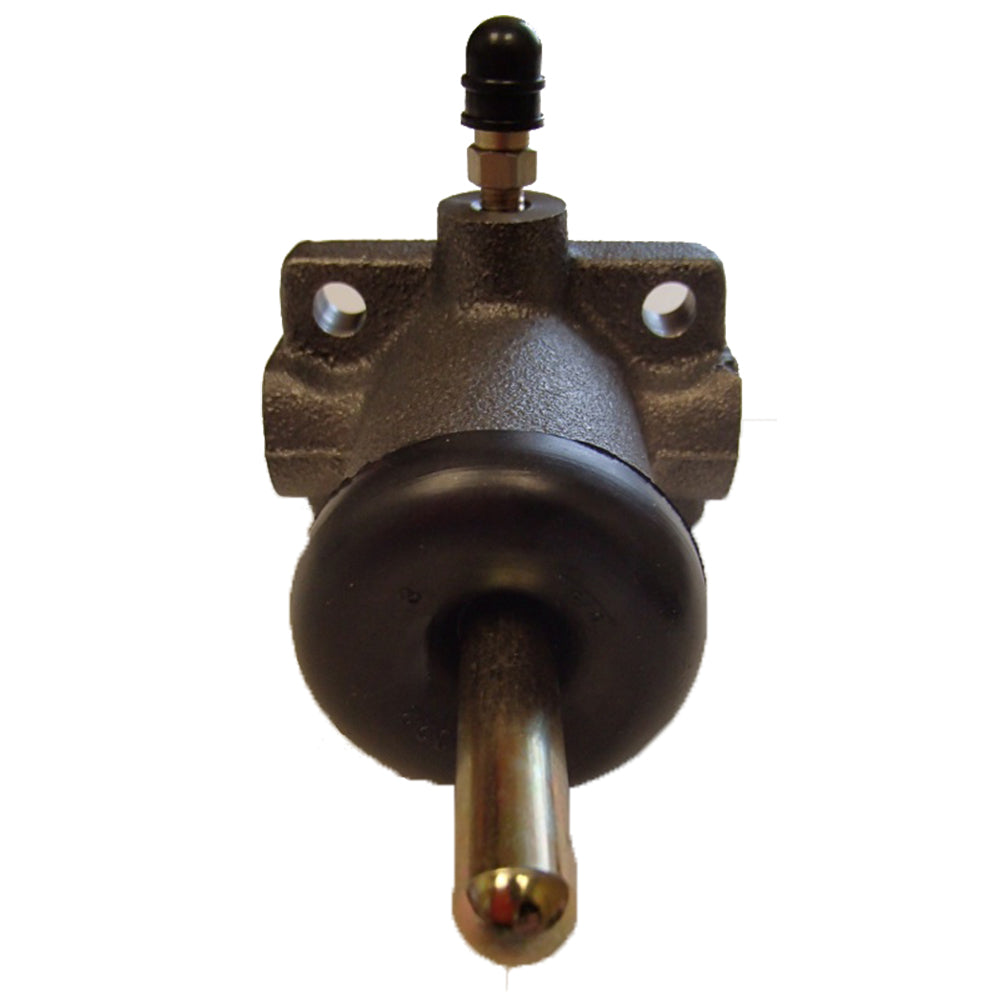

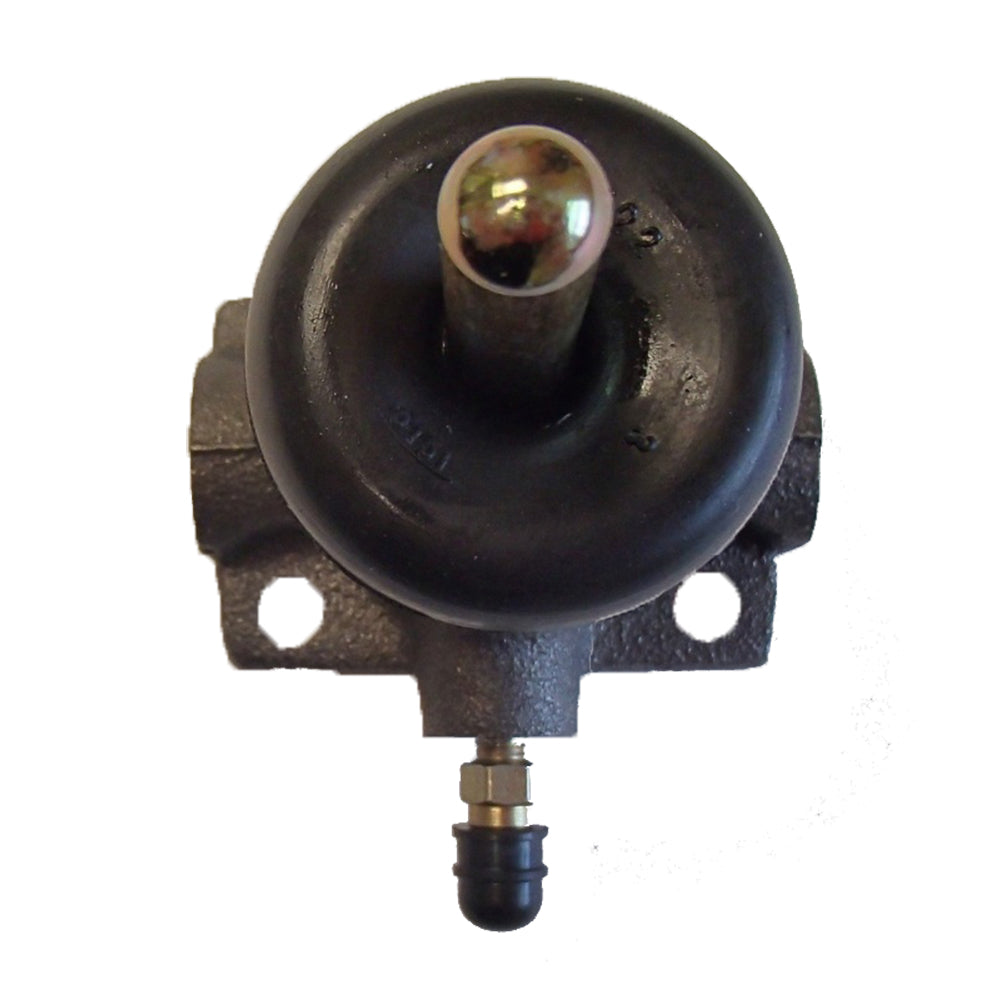

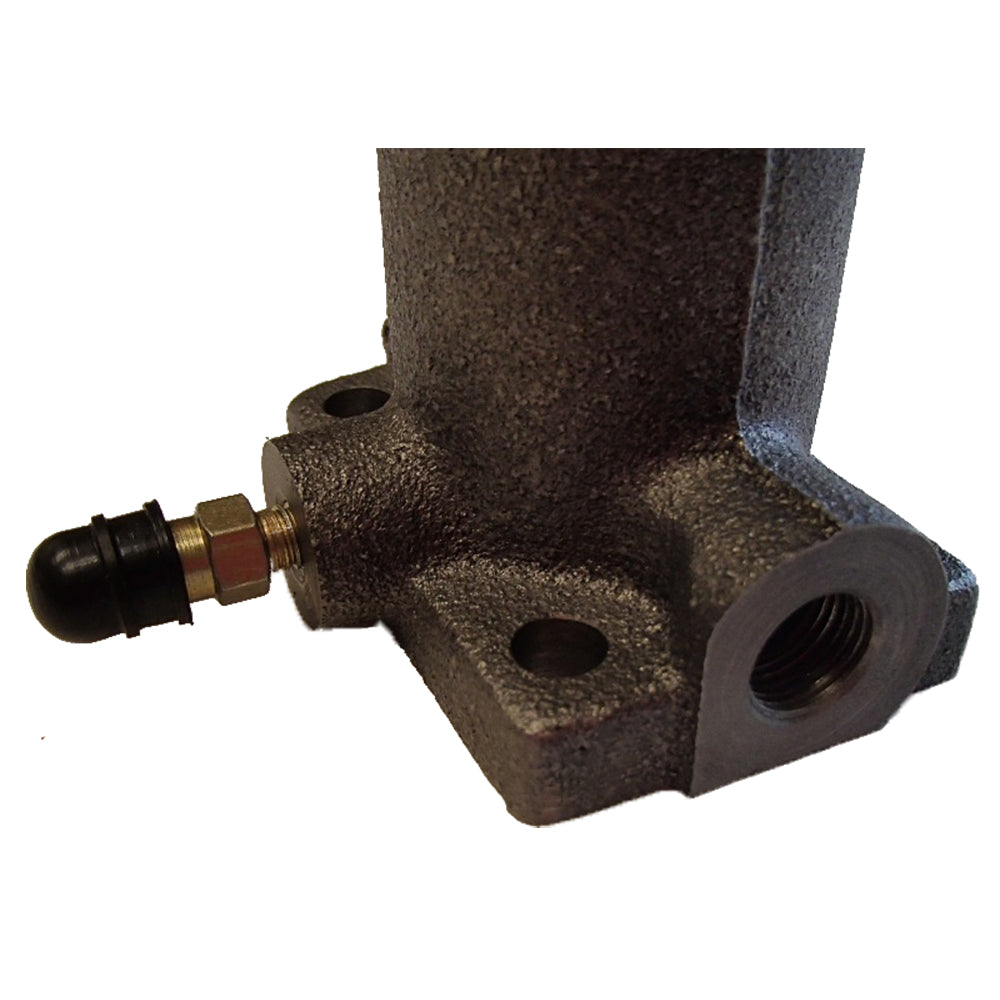

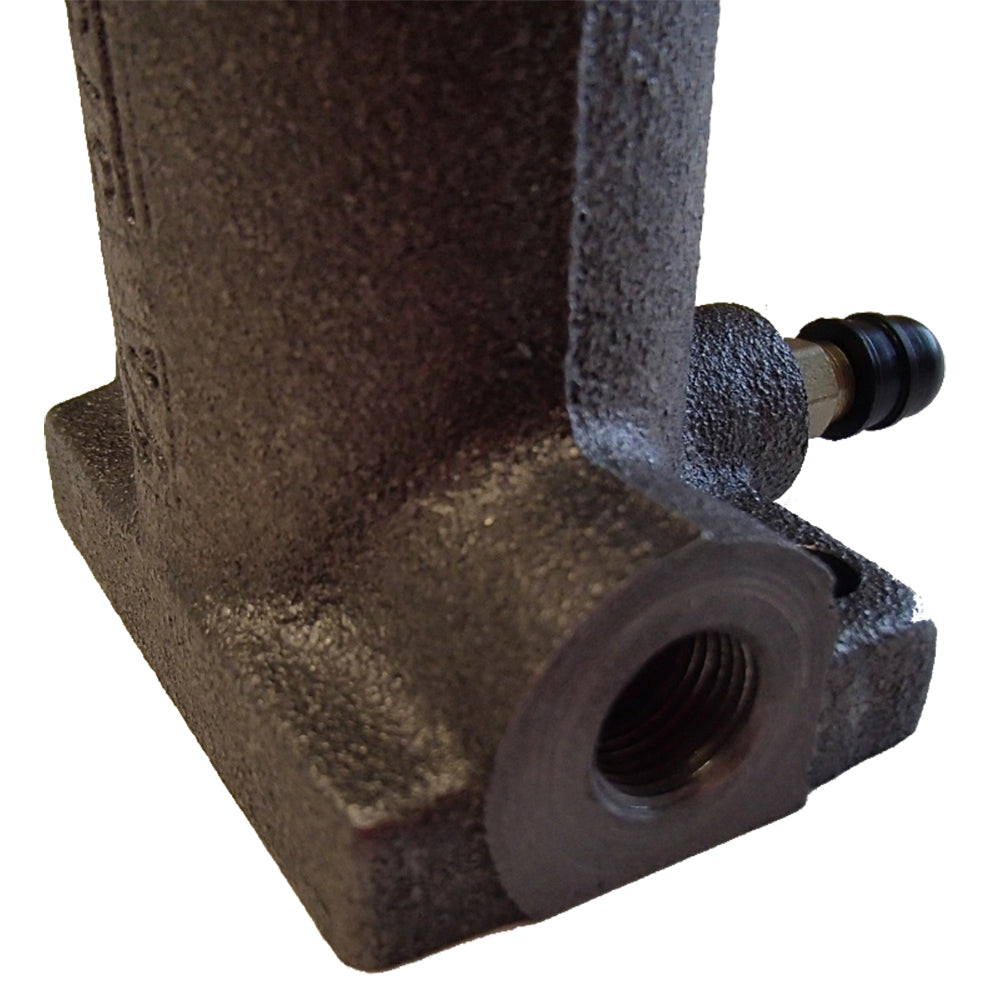

1348800C1 Slave Cylinder 450C, 455C, 550, 650 Fits Case 450, 450B, 455B, 550, 65
1348800C1 Slave Cylinder 450C, 455C, 550, 650 Fits Case 450, 450B, 455B, 550, 65
Couldn't load pickup availability
One New Aftermarket Replacement Brake Slave Cylinder Fits Case (Fits Case IH) Crawler Dozers, Backhoe Loaders, and Forklifts
This aftermarket replacement brake slave cylinder fits a wide range of Fits Case and Fits Case IH crawler dozers, backhoe loaders, and forklifts. The cylinder is part of the hydraulic brake system and actuates braking force at the wheel end. Important: Use DOT-approved brake fluid only. Do NOT use hydraulic oil or mineral oil -- doing so will damage the cylinder and void any warranty. Note: This cylinder does NOT include brake line plug part number 222-1062; reuse the original or source a replacement from Fits Case.
Specifications
- Bore Diameter: 7/8"
- Rod Length: 2-3/4"
- Mounting Hole Center-to-Center: 1-3/4"
- Mounting Hole Diameter: 1/4"
Compatible Models
Fits Case / Fits Case IH Crawler Dozers: 450C, 455C, 550, 650, 850B, 850C, 850D, 855C, 855D
Fits Case / Fits Case IH Backhoe Loaders: 450, 450B, 450C, 455B, 480, 480B, 480C, 480D, 580, 580B, 580C, 580D (without turbo)
Fits Case / Fits Case IH Forklifts / Telehandlers: 584D, 584E, 585D, 585E, 586D, 586E
Fits Case / Fits Case IH Tractors: 260, 290, 4494, 4694, 4894
Replaces Part Number(s):
1348800C1, A51976, A50557, G109413, G109412, 3186482M91, 2226169
New aftermarket replacement part - not remanufactured, not used.
