46" Mower Deck Rebuild Kit Fits Husqvarna Replaces 13175

46" Mower Deck Rebuild Kit Fits Husqvarna Replaces 13175

$155.00 CAD
$155.00 CAD
Sale Sold out
Shipping calculated at checkout.

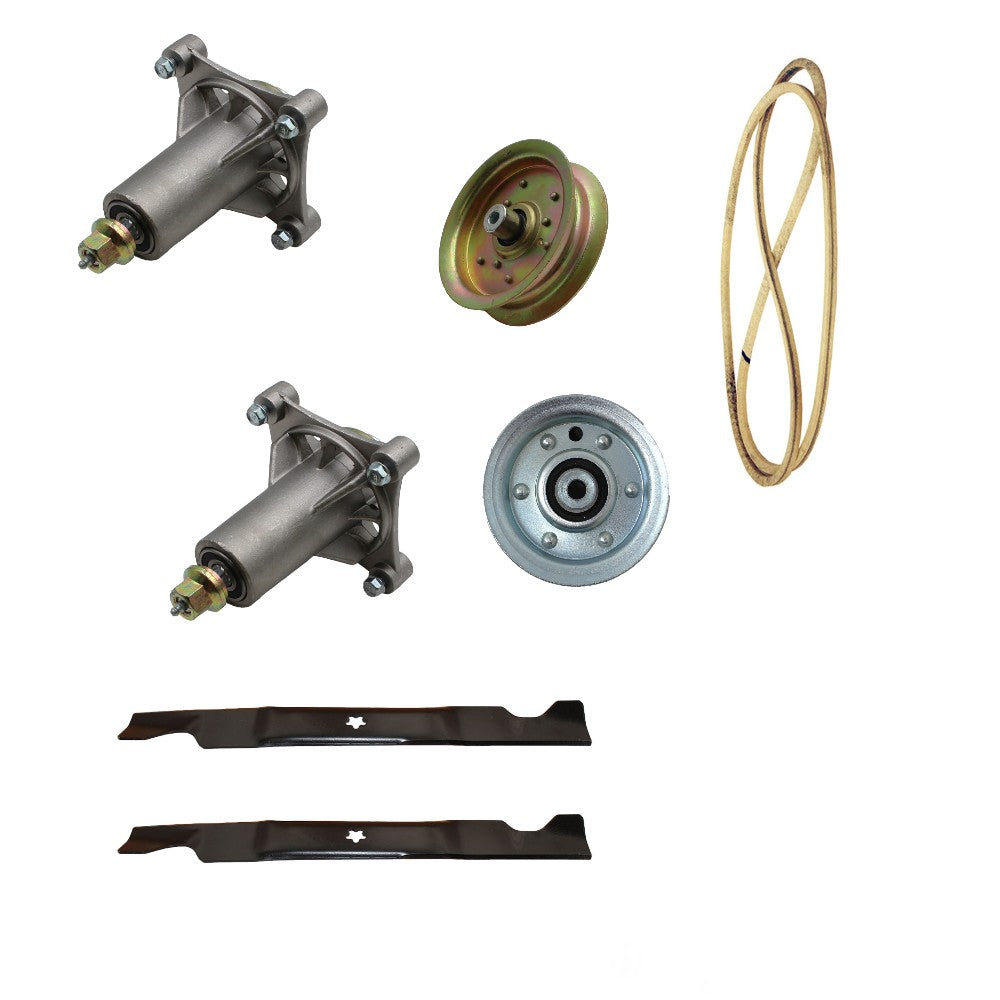

One New Aftermarket 46" Mower Deck Rebuild Kit

Tech Info:
 -Kit Contains:
 -(2) Mower Blade
 -Length: 23"
 -Width: 2-3/4"
 -Thickness: 0.156"
 -Center Hole: 5 point star
 -
 -Replaces Part Number(s):
 -2246LS, 2346XLS, YTH2146XP
 -
 -(2) Spindle Assembly
 -4-Bolt Long Housing
 -5-Point Star Blade Mount
 -Threaded Mounting Holes for Easy Installation
 -Shaft is Splined for Spline-Type Pulleys
 -
 -Includes:
 -Pulley Locknut,
 -Blade Bolt/Washer,
 -Spacer,
 -4 Mounting Bolts
 -
 -Replaces Part Number(s):
 -192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301
 -
 -(1) Flat Idler Pulley
 -ID: 3/8"
 -OD: 5-3/8"
 -Height: 1-5/8"
 -Painted
 -
 -Replaces Part Number(s):
 -13175, 532 19 61-06, 532197379
 -
 -(1) Flat Idler Deck Pulley
 -Height: 1-7/16"
 -ID: 3/8"
 -OD: 4"
 -Material: Metal
 -Heavy Duty: TRUE
 -
 -Replaces Part Number(s):
 -532177968, 532193197
 -
 -(1) Deck Belt
 -1/2" x 105.875"
 -Belt Application: Deck
 -Belt Type: Covered
 -Length: 105 3/4"
 -Packaging type: Branded sleeve
 -Width: 1/2"
 -For 46" Decks
 -
 -Replaces Part Number(s):
 -532405143, 584453101

Made to Fits Husqvarna:
 Replaces Part Number(s): 2246LS, 2346XLS, YTH2146XP, 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301, 13175, 532 19 61-06, 532197379, 532177968, 532193197, 532405143, 584453101

Models This Part Fits:

EZ17 968999502, YTH24K54 (96045003300), LGTH24V54 96048006200, GTH26K54 96043003101

Additional Information:

(2) Mower Blades Length: 22-7/8" Width: 2-3/4" Thickness: 0.156" Center Hole: 5 point star Replaces Part Number(s): 403107, 503405380, 532403107, 532405380, 594892801 (1) Flat Idler Pulley Inner Diameter: 3/8" Outer Diameter: 5-3/8" Height: 1-5/8" Painted Replaces Part Number(s): 196106, 197379, 532196106 (1) Deck Belt 1/2" x 105.875" Thickness: 0.35" Made With Aramid Cord Replaces Part Number(s): 532405143, 584453101 (2) Spindle Assemblies 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes for Easy Installation Shaft is Splined for Spline-Type Pulleys Includes: Pulley Locknut Blade Bolt/Washer Spacer 4 Mounting Bolts Replaces Part Number(s): 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301 (1) Flat Idler Deck Pulley Height: 1-7/16" Inner Diameter: 3/8" Outer Diameter: 4" Material: Metal Heavy Duty: TRUE Replaces Part Number(s): 532177968, 532193197

Reference Numbers:

192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301

Product Sub Group:

Deck Components
