1309326 Sprocket Fits Caterpillar Models
1309326 Sprocket Fits Caterpillar Models
Regular price
$349.00 CAD
Regular price
Sale price
$349.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

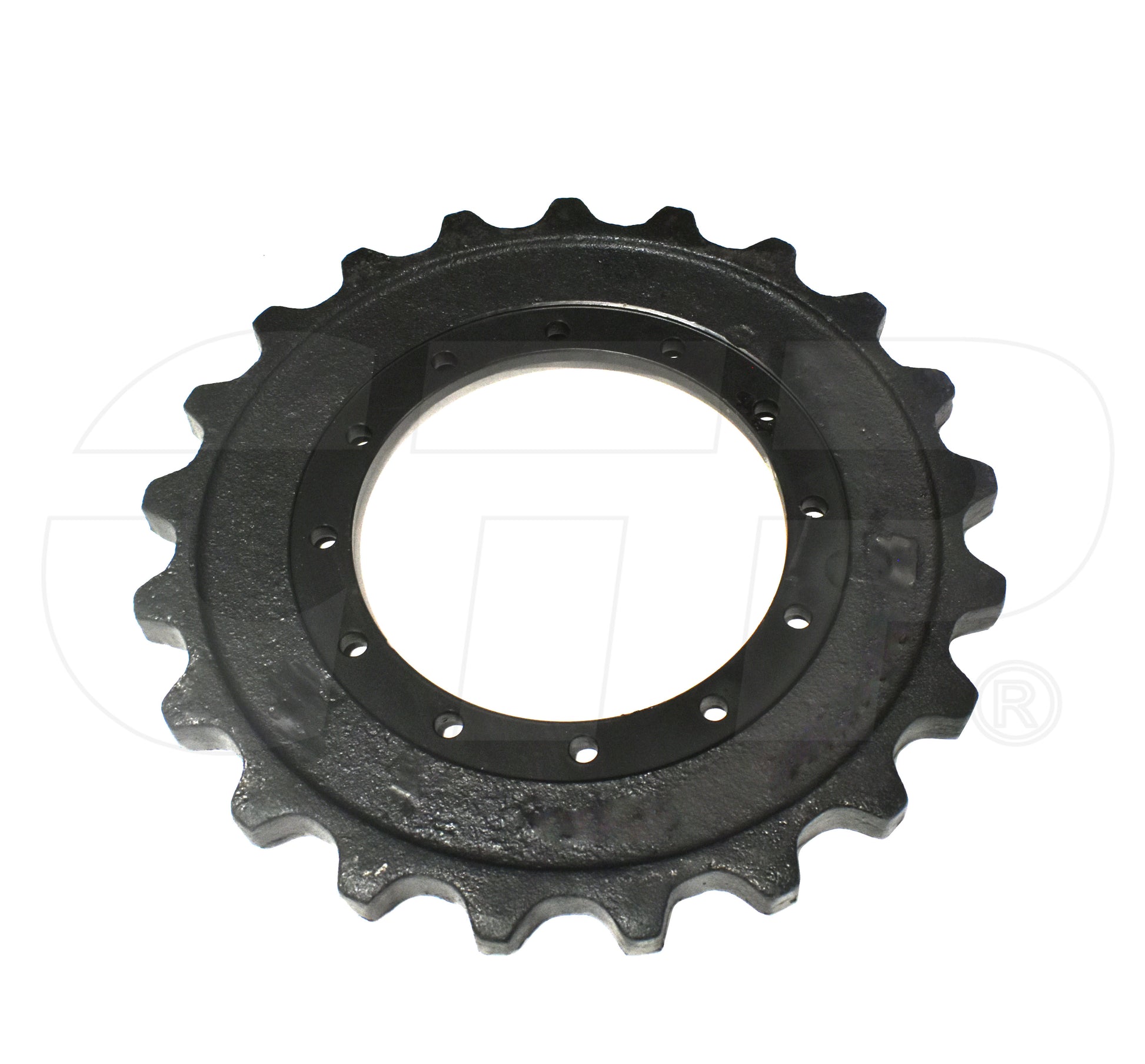

One New Aftermarket Replacement Track Sprocket for Caterpillar (Cat) Mini Excavators
This aftermarket replacement track sprocket (part number 1309326 / 130-9326) is a drive sprocket for the undercarriage system on Caterpillar mini hydraulic excavators. The sprocket engages the track link assembly to transmit engine power into machine travel. It features 21 teeth and 12 bolt holes for direct bolt-on installation.
Specifications
- Teeth: 21
- Bolt Holes: 12
- Pitch Circle Diameter: 154mm (approx.)
- Weight: approx. 25 kg (55 lbs)
- Part Type: Track Drive Sprocket
Compatible Models
Caterpillar Mini Hydraulic Excavators: 307B (serial prefix 7DZ), 307C (serial prefixes BCM, BNE), 308C (serial prefixes CRW, KCX)
Replaces Part Number(s):
1309326, 130-9326, CA1309326
New aftermarket replacement part - not remanufactured, not used.
