127843 Spindles, Blades, & Pulleys Fits Craftsman 46", 48" and 54" Decks

Name: 127843 Spindles, Blades, & Pulleys Fits Craftsman 46", 48" and 54" Decks
SKU: KT-LAS20-0023_2
Price: 152.0 USD
Availability: InStock

127843 Spindles, Blades, & Pulleys Fits Craftsman 46", 48" and 54" Decks

$152.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Kit of Spindles, Blades, and Pulleys.

Fits Craftsman 46", 48" and 54" Decks

Replaces Part Numbers: 127843, 138498, 138971

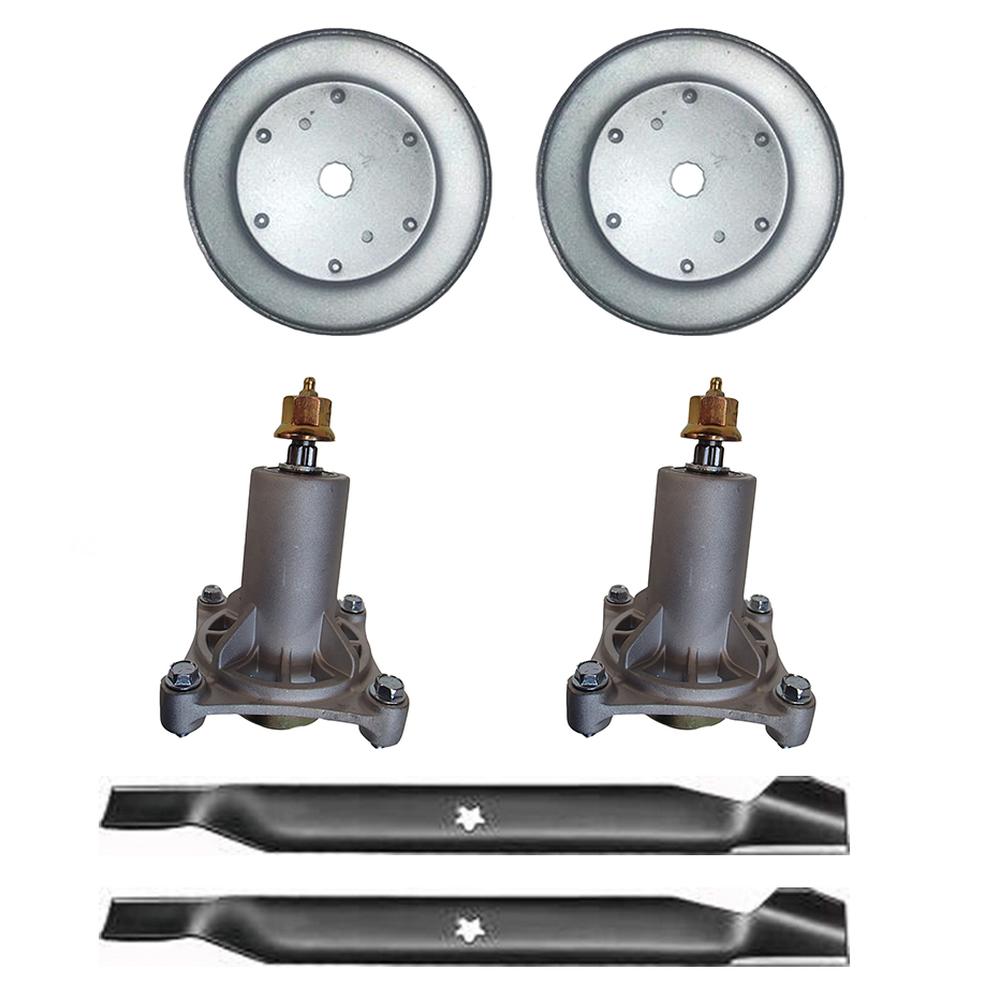

Kit Includes:
(2) Spindle Assembly
(2) Lawn Mower Blade
(2) Drive Pulley

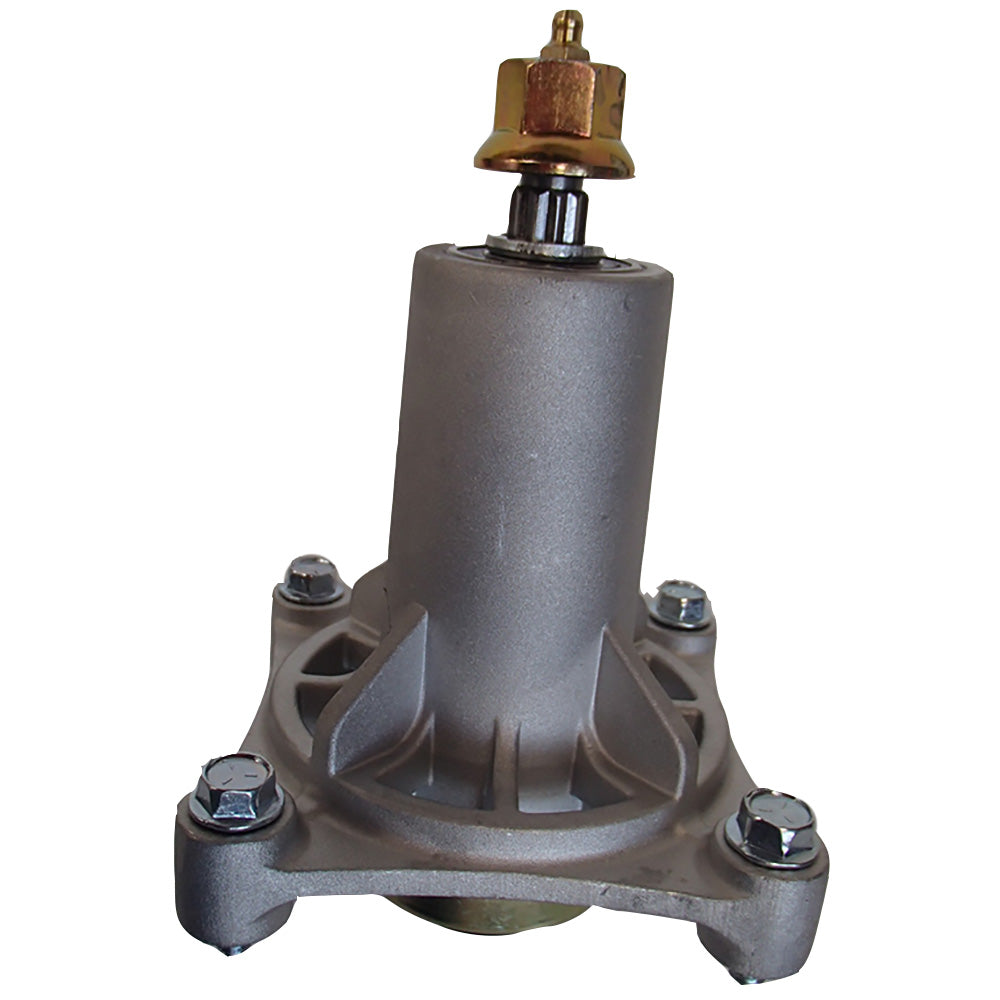

Spindle:
- 4-Bolt Long Housing
- 5 Point Star Center Hole
- Threaded Mounting Holes include Bolts
- Includes Blade Bolt & Washer (From QSI)

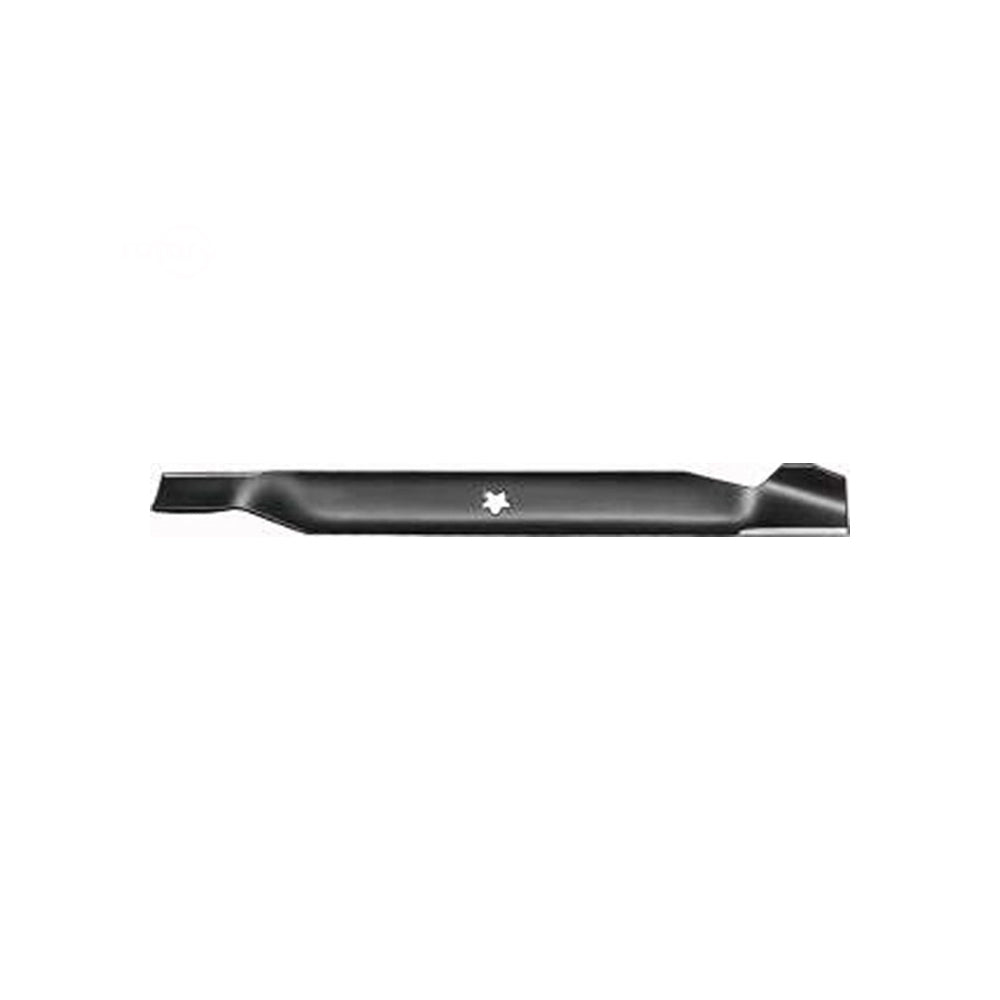

Lawn Mower Blade:
- Notched Fits Hi-Lift Blade
- 21" Long
- 5 Point Star CH
- 2-1/4" Wide
- Thickness 0.149"

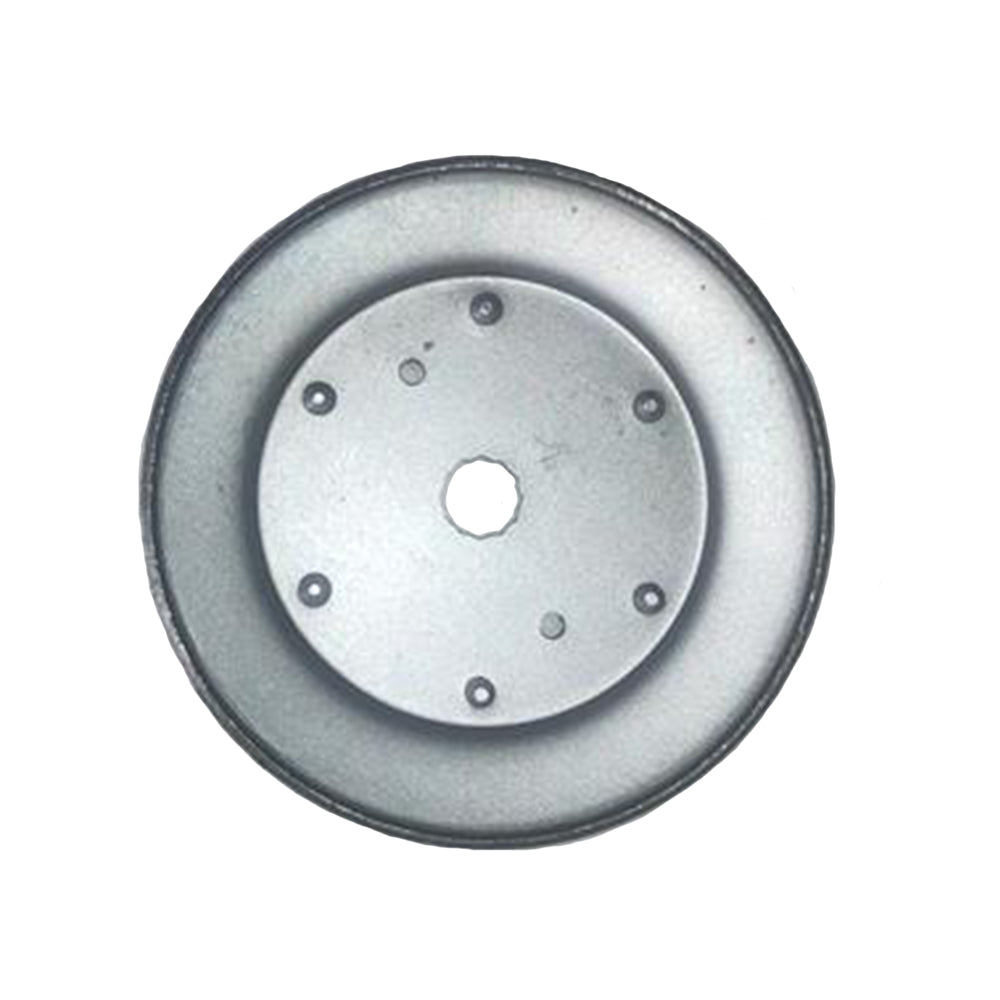

Drive Pulley:
- Outer Diameter: 5-1/6"
- Inner Diameter: 9/16"
- Fits 42" Deck models
- Made of Steel

Fits models with 46", 48" and 54" Decks

Please Verify tha

Models This Part Fits:

42" Mower Decks

Additional Information:

(2) Spindle Assemblys 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes for Easy Installation Shaft is Splined for Spline-Type Pulleys Includes: Pulley Locknut, Blade Bolt/Washer, Spacer, 4 Mounting Bolts Replaces Part Number: 192870, 532187281, 532187292, 532192870 (2) Lawn Mower Blades Type: Notched HI-Lift Blade Length: 21" Center Hole: 5 Point Star Width: 2-1/4" Thickness: 0.149" Replaces Part Numbers: 532138971, 138971X431, 594892701, 917139775P, 917532139775, 954636867, 917777134149, 917539110460, 917532424752 (2) Drive Pulleys Outer Diameter: 5-1/6" Inner Diameter: 9/16" Steel Replaces Part Numbers: 129861, 153535, 173436, 532173436, 532129861, 539112171, 532153535

Reference Numbers:

187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 127843, 134149, 138498, 138971, 138971X431, 531307224, 532134149, 532138971, 594892701, 917127843, 917131323, 917138498MS, 917532138498, 129861, 153535, 173436, 177865, 532173436, 532192870, 531307224, 532138971, PP24004, 532129861, 532153535, 532173436, 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301, 532127843, 532138498, 532138971, 532129861, 532153535, 532173436, 539112171, 21546238, 21546299, 21549012, 532192870, 587819701, 21546095, 532138971, 21546127, 532173436
