Brake Plate Set with Master Cylinder and Reservoir Fits JCB Replaces 126-00200

Brake Plate Set with Master Cylinder and Reservoir Fits JCB Replaces 126-00200

$540.00 CAD
$540.00 CAD
Sale Sold out
Shipping calculated at checkout.

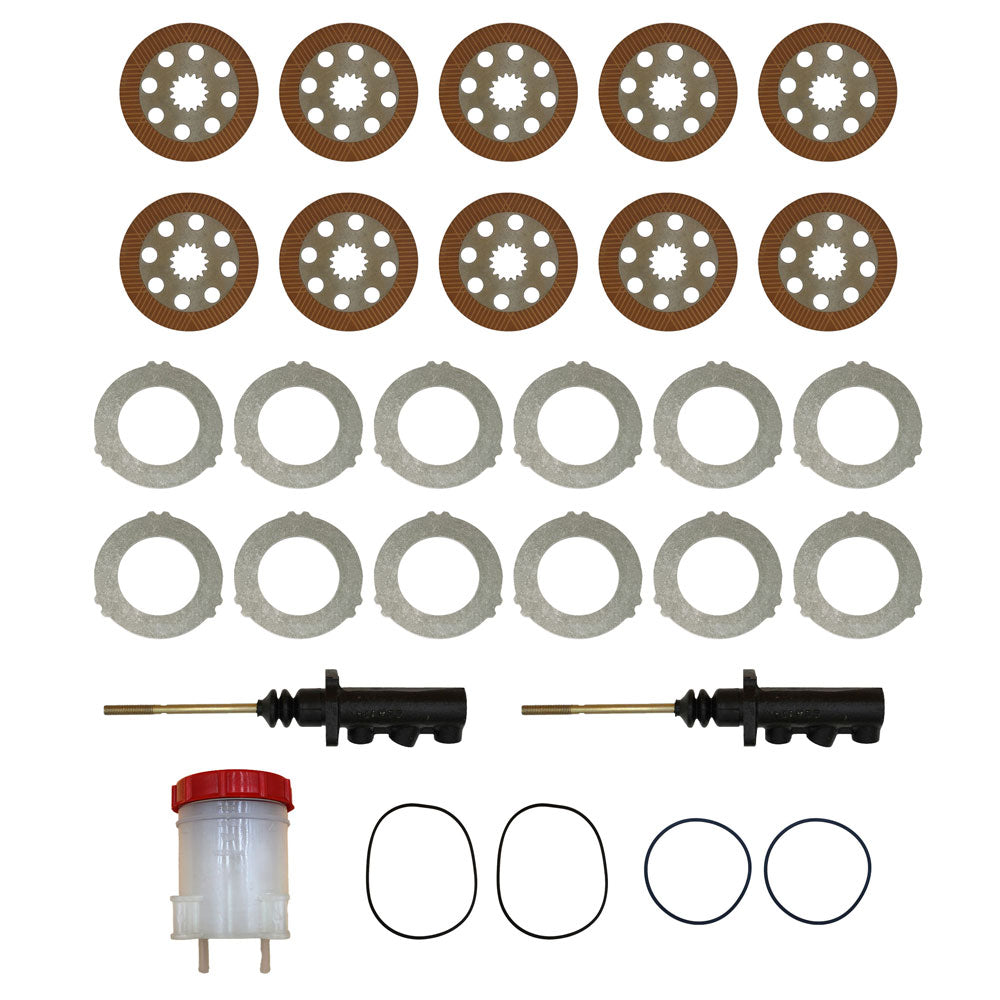

One New Aftermarket Brake Plate Set with Master Cylinder and Reservoir

Tech Info:
 -Kit Contains:
 -
 -(10) Brake Friction Plate:
 -Number of Teeth: 15
 -Number of Holes: 8
 -Outer Diameter: 8.738" (221.95 mm)
 -Inner Diameter: 1.953" (49.61 mm)
 -Thickness: .153" (3.89 mm)
 -Replaces Part Numbers:
 -450/10224, 458/20353, 450-10224, 458-20353, 45010224, 45820353
 -
 -(12) Steel Brake Counter Plate:
 -Number of Teeth: 3 External
 -Outer Diameter: 9.371" (238.02 mm)
 -Inner Diameter: 5.515" (140.8 mm)
 -Thickness: .153" (3.89 mm)
 -Replaces Part Numbers:
 -458/20285, 450/10226, 458-20285, 450-10226, 45820285, 45010226
 -
 -(2) Master Cylinder:
 -3 Hole
 -Replaces Part Numbers:
 -15/920110, 15/910800, 15/908200, 15-920110, 15-910800, 15-908200, 15920110, 15910800, 15908200
 -
 -(1) Brake Reservoir:
 -with Screw-On Cap
 -Replaces Part Numbers:
 -126/00200, 126-00200, 12600200
 -
 -(4) Brake Piston Seal:
 -Material: Nitrile
 -Replaces Part Numbers:
 -813/50012, 813-50012, 81350012
 -
 -(4) Brake Piston Seal:
 -Material: Nitrile
 -Replaces Part Numbers:
 -813/50026, 813-50026, 81350026

Made to Fits JCB:
 Backhoe Models: 1400B 1550B 1600B 1700B 214 215 216 217 3C 3CX 3D
 Replaces Part Number(s): 450/10224, 458/20353, 450-10224, 458-20353, 45010224, 45820353, 458/20285, 450/10226, 458-20285, 450-10226, 45820285, 45010226, 15/920110, 15/910800, 15/908200, 15-920110, 15-910800, 15-908200, 15920110, 15910800, 15908200, 126/00200, 126-00200, 12600200, 813/50012, 813-50012, 81350012, 813/50026, 813-50026, 81350026

Models This Part Fits:

1400B 1550B 1600B 1700B 214 215 216 217 3C 3CX 3D

Additional Information:

Kit Contains: (10) Brake Friction Plate: Number of Teeth: 15 Number of Holes: 8 Outer Diameter: 8.738" (221.95 mm) Inner Diameter: 1.953" (49.61 mm) Thickness: .153" (3.89 mm) Replaces Part Numbers: 450/10224, 458/20353, 450-10224, 458-20353, 45010224, 45820353 (12) Steel Brake Counter Plate: Number of Teeth: 3 External Outer Diameter: 9.371" (238.02 mm) Inner Diameter: 5.515" (140.8 mm) Thickness: .153" (3.89 mm) Replaces Part Numbers: 458/20285, 450/10226, 458-20285, 450-10226, 45820285, 45010226 (2) Master Cylinder: 3 Hole Replaces Part Numbers: 15/920110, 15/910800, 15/908200, 15-920110, 15-910800, 15-908200, 15920110, 15910800, 15908200 (1) Brake Reservoir: with Screw-On Cap Replaces Part Numbers: 126/00200, 126-00200, 12600200 (4) Brake Piston Seal: Material: Nitrile Replaces Part Numbers: 813/50012, 813-50012, 81350012 (4) Brake Piston Seal: Material: Nitrile Replaces Part Numbers: 813/50026, 813-50026, 81350026

Reference Numbers:

450/10224, 458/20353, 450-10224, 458-20353, 45010224, 45820353, 458/20285, 450/10226, 458-20285, 450-10226, 45820285, 45010226, 15/920110, 15/910800, 15/908200, 15-920110, 15-910800, 15-908200, 15920110, 15910800, 15908200, 126/00200, 126-00200, 12600200, 813/50012, 813-50012, 81350012, 813/50026, 813-50026, 81350026
