1258869 Crown As Fits Caterpillar Models
1258869 Crown As Fits Caterpillar Models
Regular price
$340.00 CAD
Regular price
Sale price
$340.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

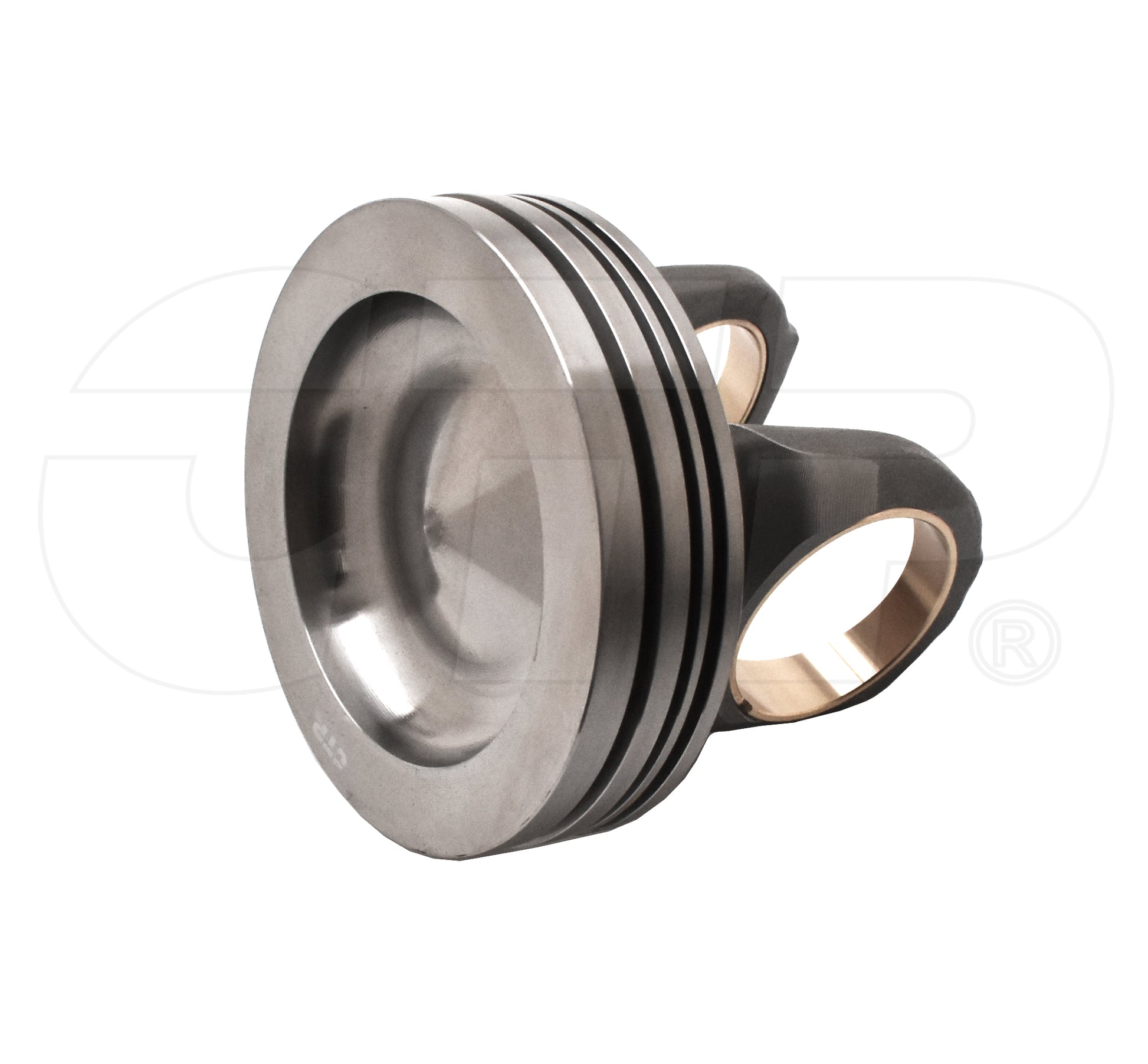

One New Aftermarket Replacement Piston Crown Assembly for Caterpillar (Cat) 3406 Series Engines
This aftermarket replacement piston crown assembly (Cat part 1258869 / 125-8869) is the upper portion of the two-piece piston used in Caterpillar 3406B, 3406C, and related 3406 series diesel engines. The shallow-bowl combustion bowl crown interfaces with the piston skirt and carries the piston ring grooves in the 14.6-liter inline six-cylinder engine. It is commonly needed during in-frame overhauls and top-end rebuilds on this platform.
Specifications
- Part Type: Piston Crown Assembly (shallow bowl design)
- Engine: Caterpillar 3406 Series - 14.6L (893 CID), Inline 6-Cylinder Diesel
- Bore: 137 mm (5.4 in)
- Stroke: 165 mm (6.5 in)
- Compression Ratio: 14.6:1
- Design: Two-piece piston (crown mates with separate piston skirt)
Compatible Models
Caterpillar Engines: 3406B, 3406C
Caterpillar Equipment: PM-465 Cold Planer, RM-350B Reclaimer/Mixer, SM-350 Road Reclaimer/Stabilizer Mixer
Replaces Part Number(s):
1258869, 125-8869
New aftermarket replacement part - not remanufactured, not used.
