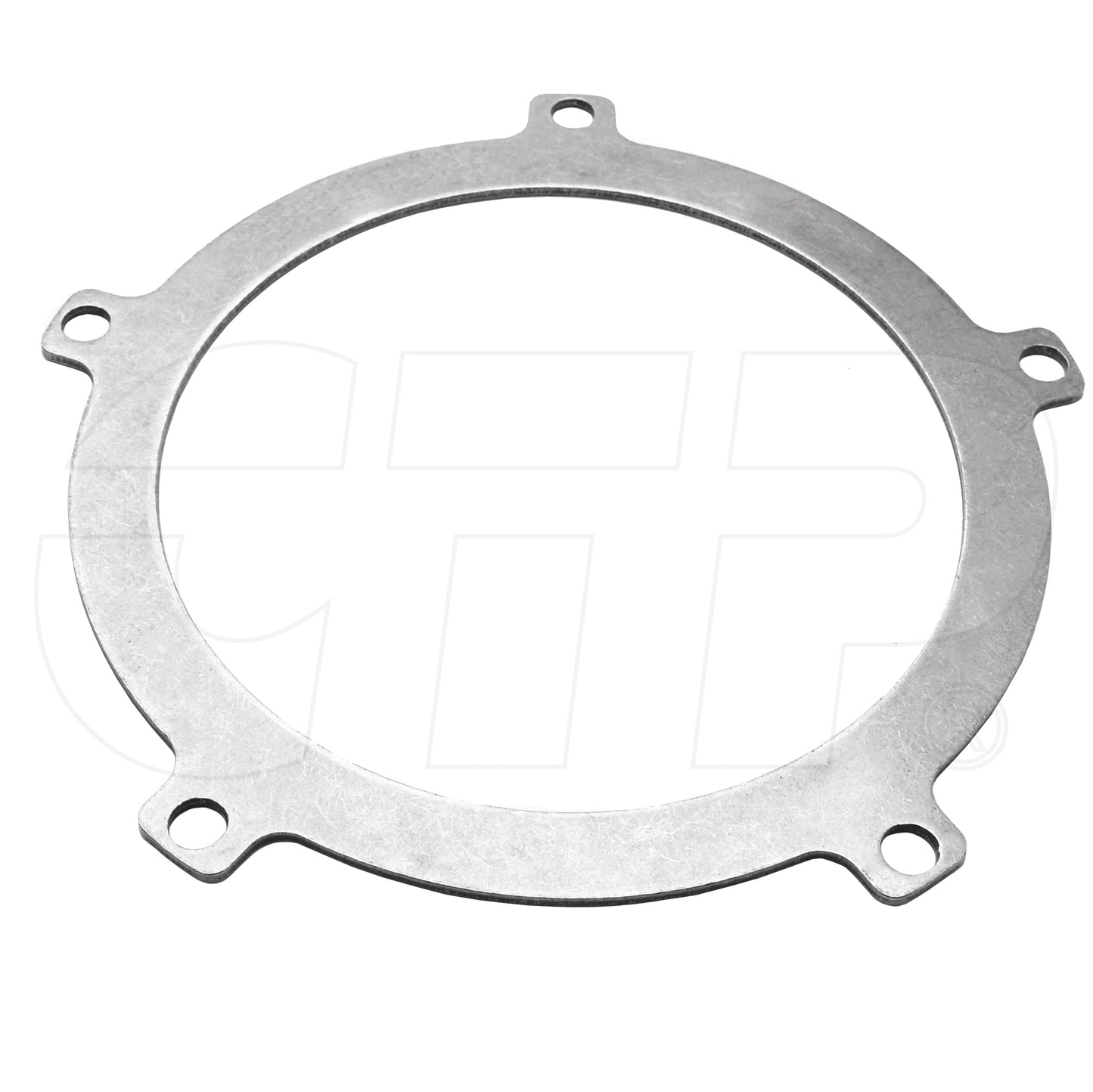

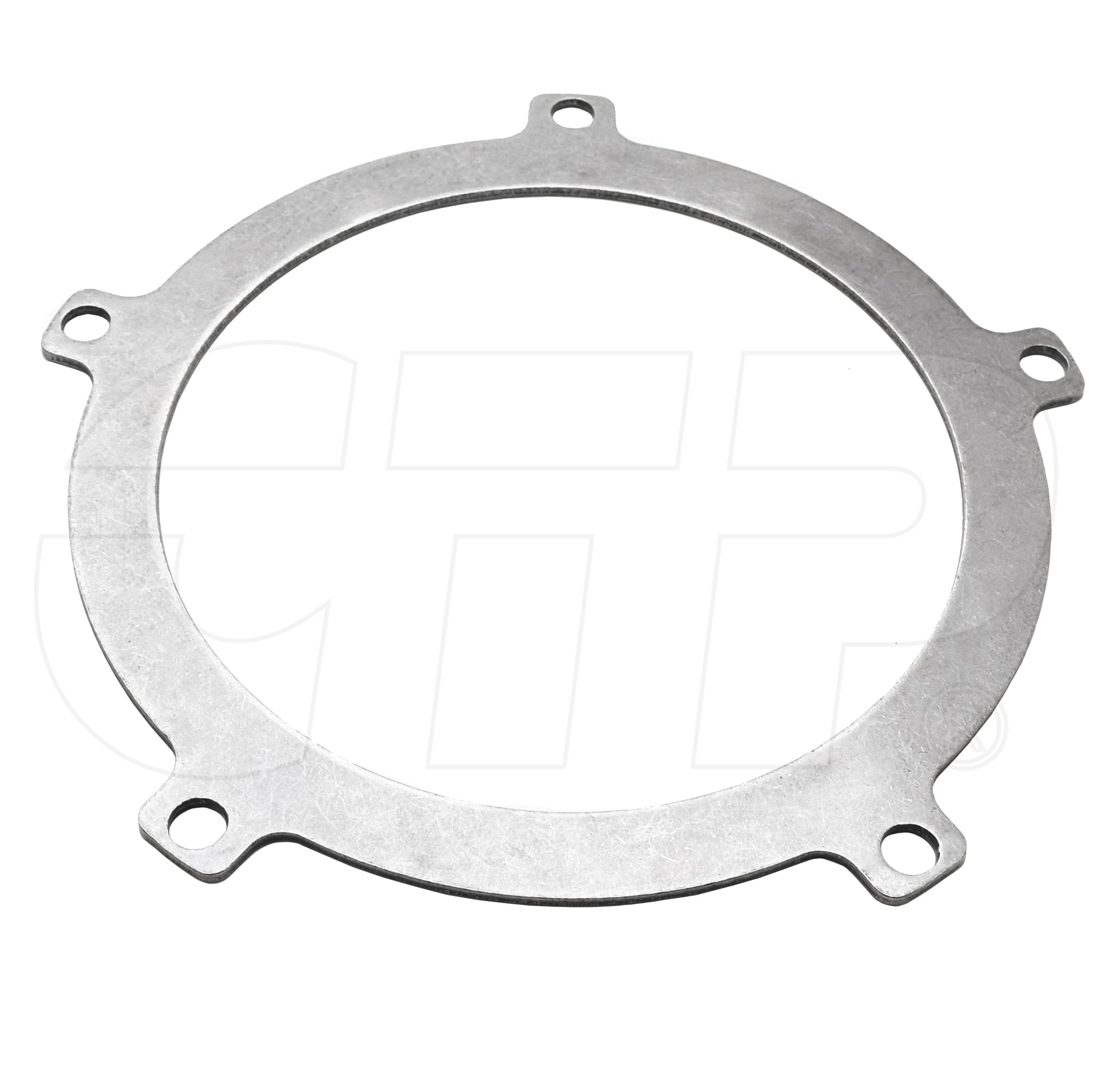

125-15-32750 Plate Fits Komatsu Models

One New Aftermarket Replacement Intermediate Disc (Clutch / Brake Plate) for Komatsu Bulldozers, Motor Graders, and Cranes

This aftermarket replacement intermediate disc (also referenced as a clutch plate, brake plate, friction disc, or separation plate) is part of the transmission clutch pack on Komatsu D41-series bulldozers and GD-series motor graders. It seats within the wet-brake / clutch assembly and is a direct replacement for Komatsu OEM part number 125-15-32750.

Specifications

• Inner Diameter: 179 mm
• Outer Diameter: 252 mm
• Thickness: 3.2 mm

Compatible Models

Komatsu Bulldozers: D41A-6 (S/N B20001-UP), D41E-6 (S/N B20001-UP), D41E-6K (S/N 50001-UP), D41E-6T (S/N B20001-UP), D41E6T (S/N B35001-UP), D41E-BB-6C (S/N B40001-UP), D41P-6 (S/N B20001-UP), D41P-6K (S/N 50001-UP), D41PF-6 (S/N B29001-UP), D41PF-6K (S/N 29021-UP), D41PF-6K-T2 (S/N 29021-UP)

Komatsu Motor Graders: GD305A, GD355A, GD405A, GD505A, GD511A, GD521A, GD525A, GD605A, GD611A, GD621A, GD621R, GD623A, GD625A, GD661A, GD663A

Komatsu Cranes: LW250L

Note: Serial number restrictions apply to several D41-series bulldozer variants. Verify your machine serial number before ordering.

Replaces Part Number(s):

125-15-32750, 1251532750

New aftermarket replacement part - not remanufactured, not used.
