Tune Up Service Kit Fits Kubota Replaces 12499-32430

Tune Up Service Kit Fits Kubota Replaces 12499-32430

$46.00 CAD
$46.00 CAD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Tune Up Service Kit

Tech Info:

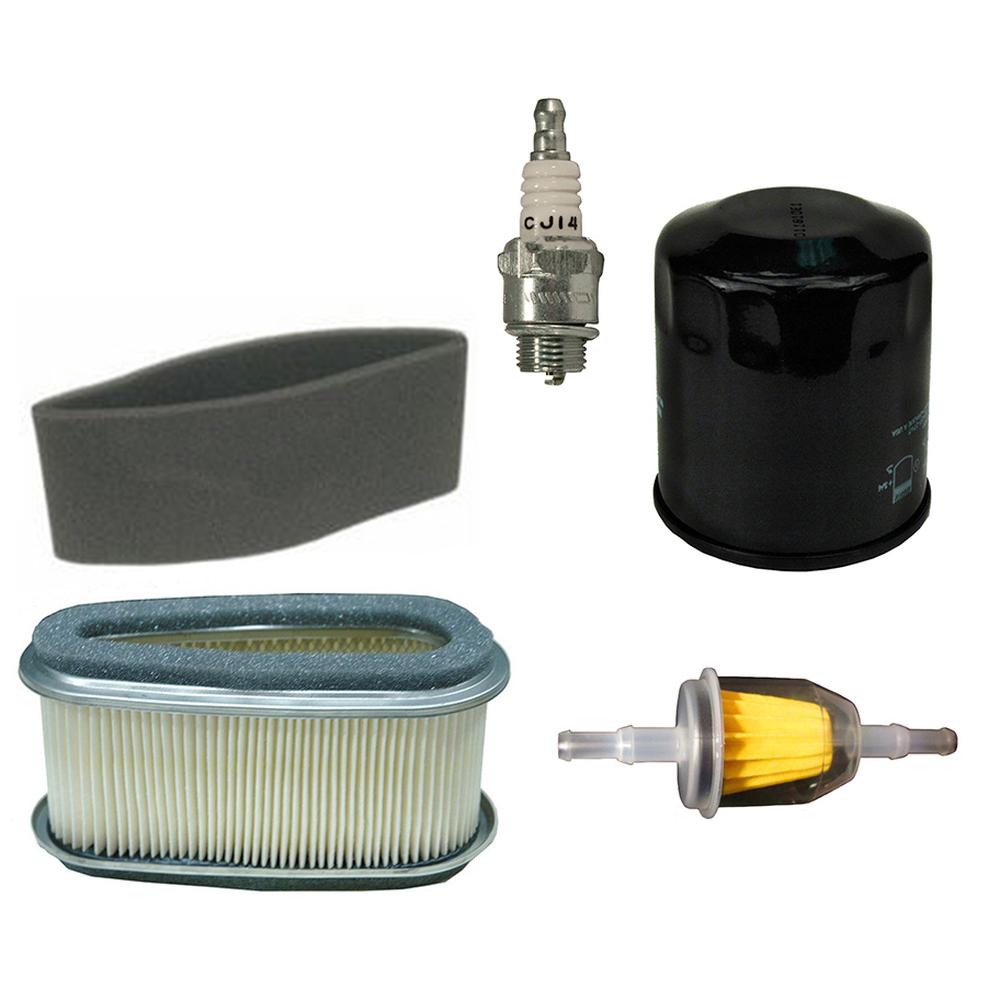

 -Kit Contains:
 -

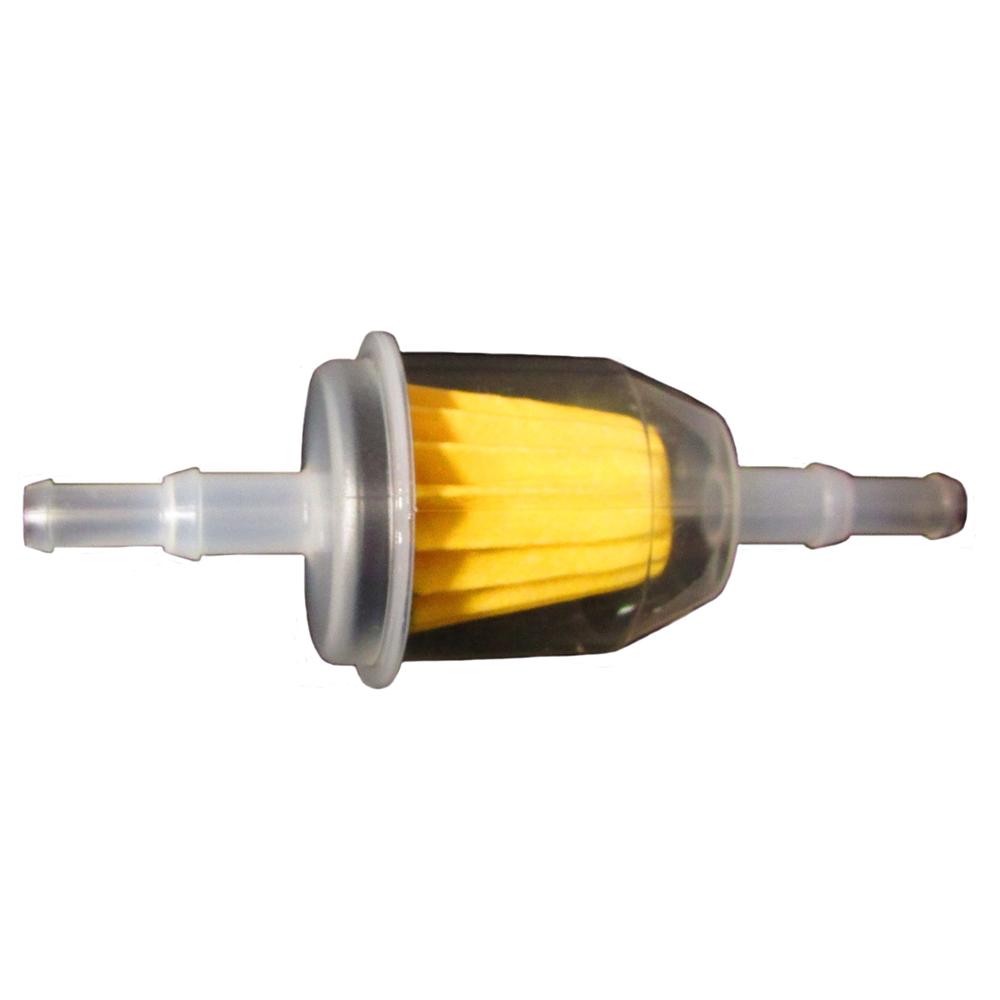

 -(1) Fuel Filter:
 -Diameter: 1-1/2"
 -Overall Length: 4-1/8"
 -Micron: 23-28
 -Compatible with 1/4" or 5/16" Fuel Lines
 -Replaces Part Numbers:
 -FF5480, BF833K2, BF833, FF1614, 33011, 21410800, 21541500, 25 050 22-S1, 00873700, 040742, 21531800
 -

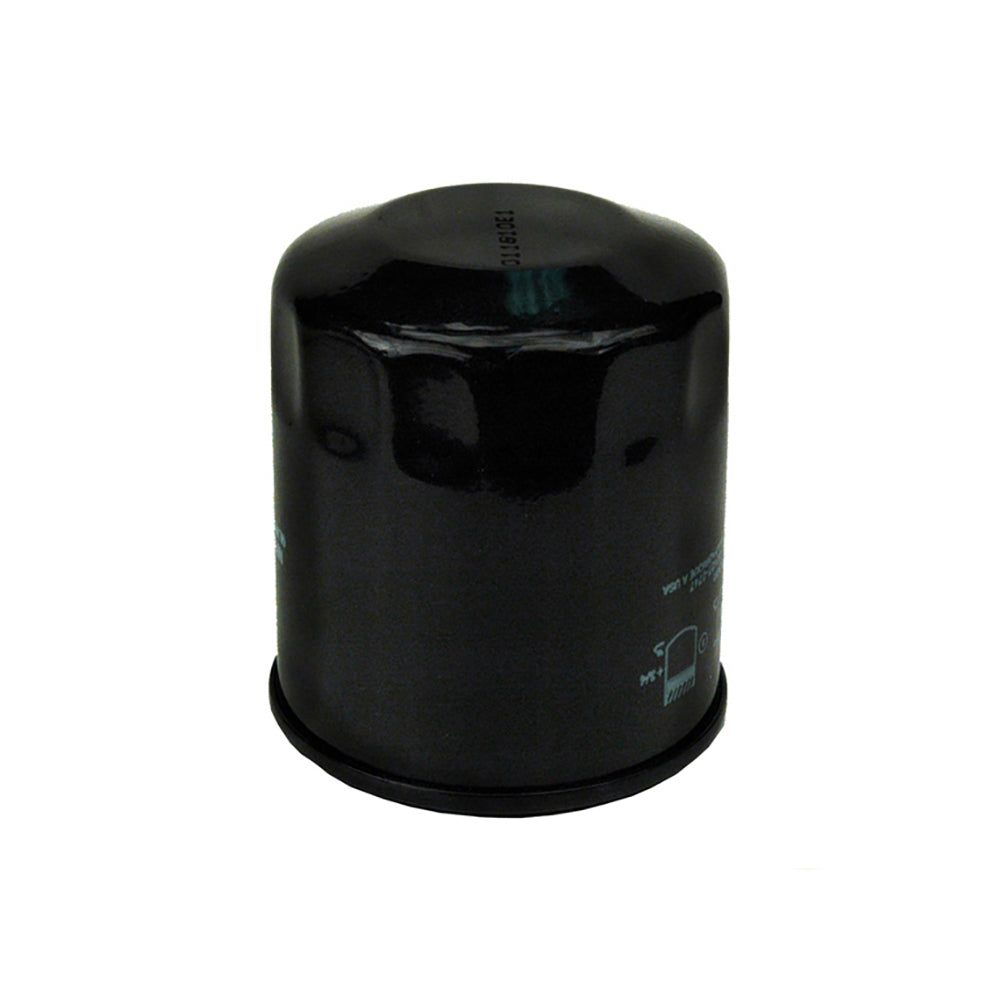

 -(1) Lube Filter:
 -Outer Diameter: 2-11/16" (68.3mm)
 -Length: 3" (76.2mm)
 -Thread: 3/4" - 16
 -Features: Anti-Drip Valve
 -Micron: 20
 -Relief Pressure: 11-17 PSI
 -Replaces Part Numbers:
 -OF1904, Z963, P502015, LF3614, W6880, W681, W81183, 51394, 21527000, 020777000, 021480600, 021527900
 -

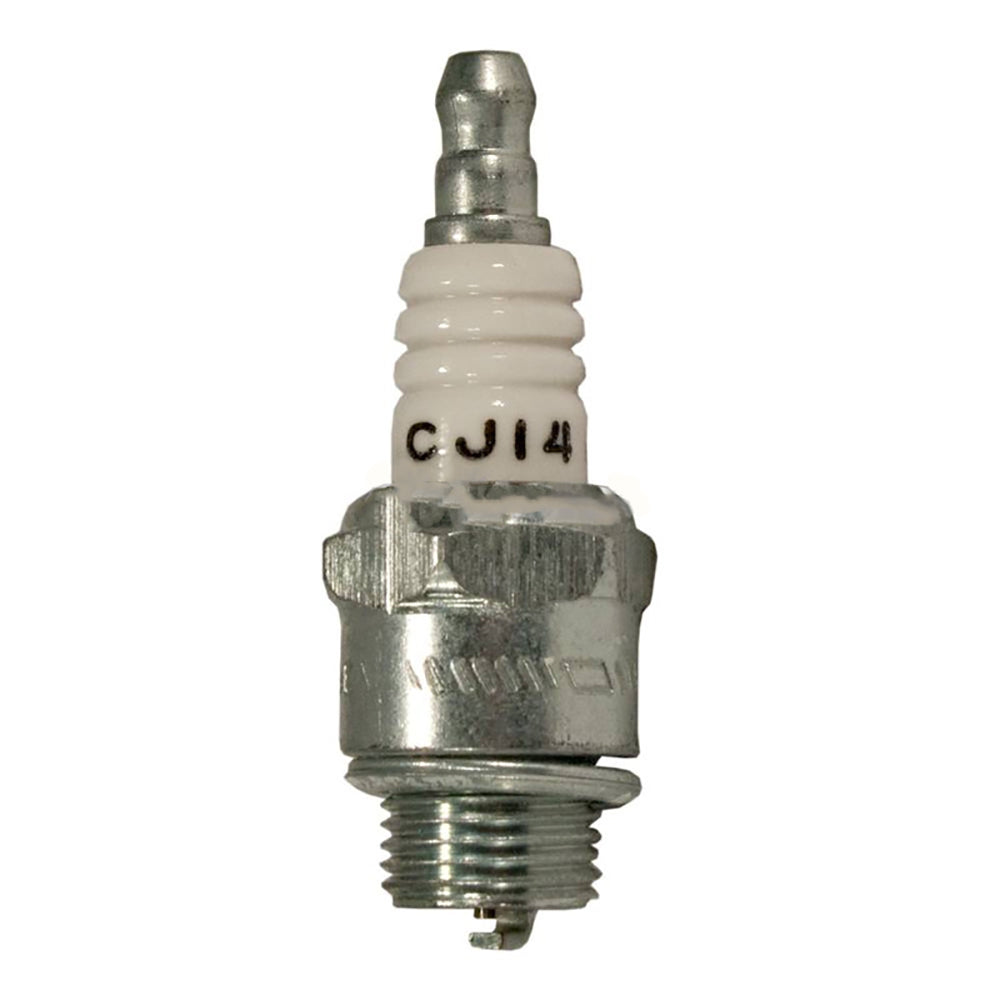

 -(1) Spark Plug:
 -Thread Diameter: 14mm
 -Hex Size: 3/4" (19mm)
 -Reach: 9.5mm (3/8")
 -Type: Standard
 -Replaces Part Numbers:
 -258, WS8E, W9ECO, CJ14, 846, LM46, AM101194, PT4122, TY6080, CS49, J14J, LN49, W12E
 -

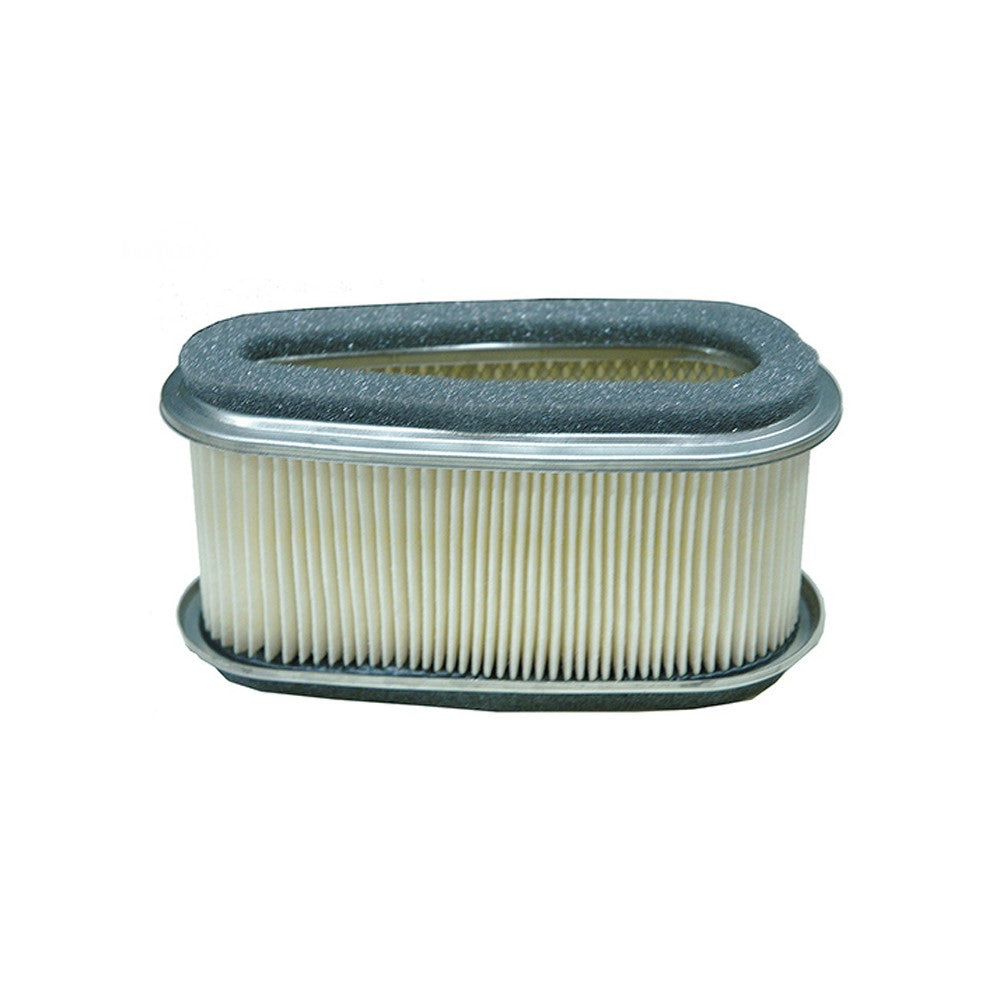

 -(1) Air Filter:
 -Height: 3-1/8"
 -Length: 6-1/4"
 -Width: 2-7/8"
 -Replaces Part Numbers:
 -AM-104560, AM104560, M133610, M74285, M97211, M97212, 11013-2109, 11013-2110, 11013-2140
 -

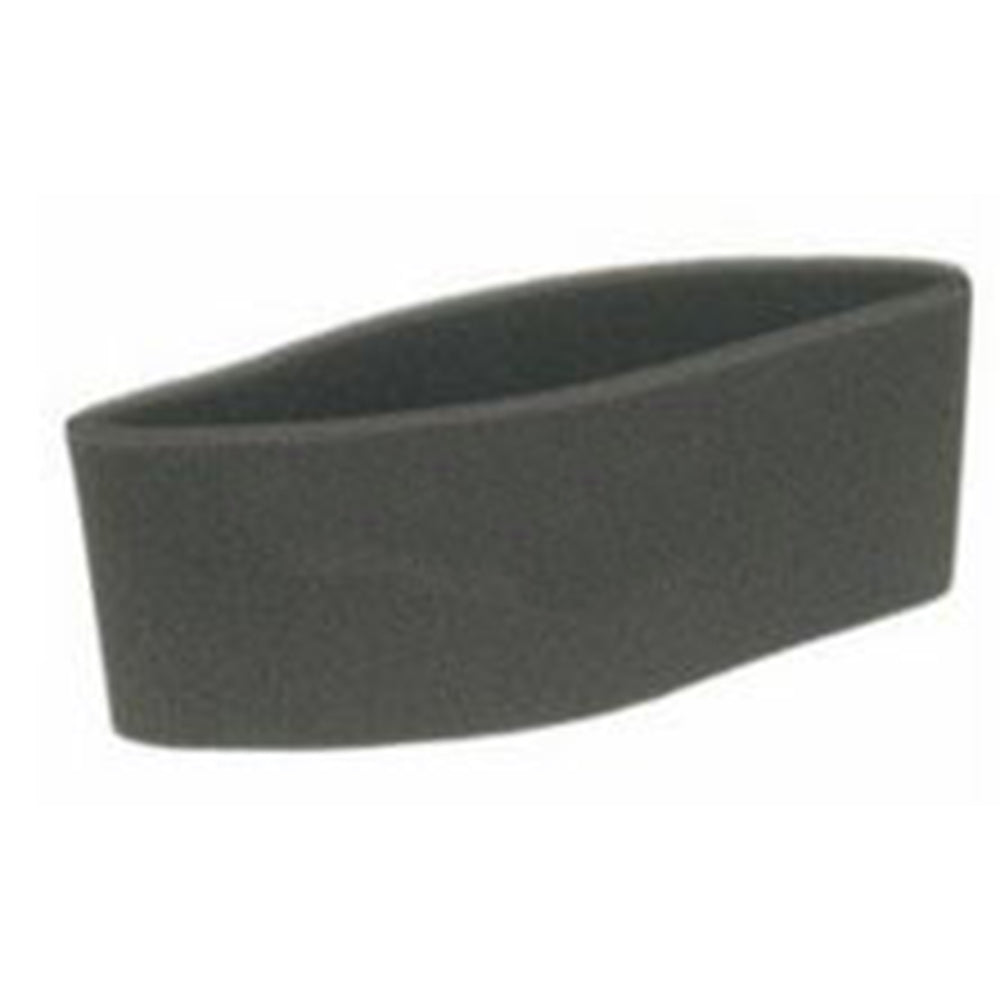

 -(1) Pre-Filter:
 -Foam
 -Height: 3-1/8"
 -Length: 6-1/4"
 -Width: 2-7/8"
 -Replaces Part Numbers:
 -11013-2109, 11013-2140, M74285, 21391200

Made to Fits Kubota:
 Lawn/Garden Tractor Models: T1460, T1560, T1700H, T1700HX, T1760, T1770, T1870, TG1860G
 Replaces Part Number(s): 12499-32430, E7195-32430, 4906-52074

Models This Part Fits:

T1460, T1760, TG1860G, T1560, T1700H, T1870, T1770, T1700HX

Additional Information:

Kit Contains: (1) Fuel Filter: Diameter: 1-1/2" Overall Length: 4-1/8" Micron: 23-28 Compatible with 1/4" or 5/16" Fuel Lines Replaces Part Numbers: FF5480, BF833K2, BF833, FF1614, 33011, 21410800, 21541500, 25 050 22-S1, 00873700, 040742, 21531800 (1) Lube Filter: Outer Diameter: 2-11/16" (68.3mm) Length: 3" (76.2mm) Thread: 3/4" - 16 Features: Anti-Drip Valve Micron: 20 Relief Pressure: 11-17 PSI Replaces Part Numbers: OF1904, Z963, P502015, LF3614, W6880, W681, W81183, 51394, 21527000, 020777000, 021480600, 021527900 (1) Spark Plug: Thread Diameter: 14mm Hex Size: 3/4" (19mm) Reach: 9.5mm (3/8") Type: Standard Replaces Part Numbers: 258, WS8E, W9ECO, CJ14, 846, LM46, AM101194, PT4122, TY6080, CS49, J14J, LN49, W12E (1) Air Filter: Height: 3-1/8" Length: 6-1/4" Width: 2-7/8" Replaces Part Numbers: AM-104560, AM104560, M133610, M74285, M97211, M97212, 11013-2109, 11013-2110, 11013-2140 (1) Pre-Filter: Foam Height: 3-1/8" Length: 6-1/4" Width: 2-7/8" Replaces Part Numbers: 11013-2109, 11013-2140, M74285, 21391200

Reference Numbers:

12499-32430, E7195-32430, 4906-52074
