1217632 Disc-Friction Fits Caterpillar Models
1217632 Disc-Friction Fits Caterpillar Models
Regular price
$49.00 CAD
Regular price
Sale price
$49.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

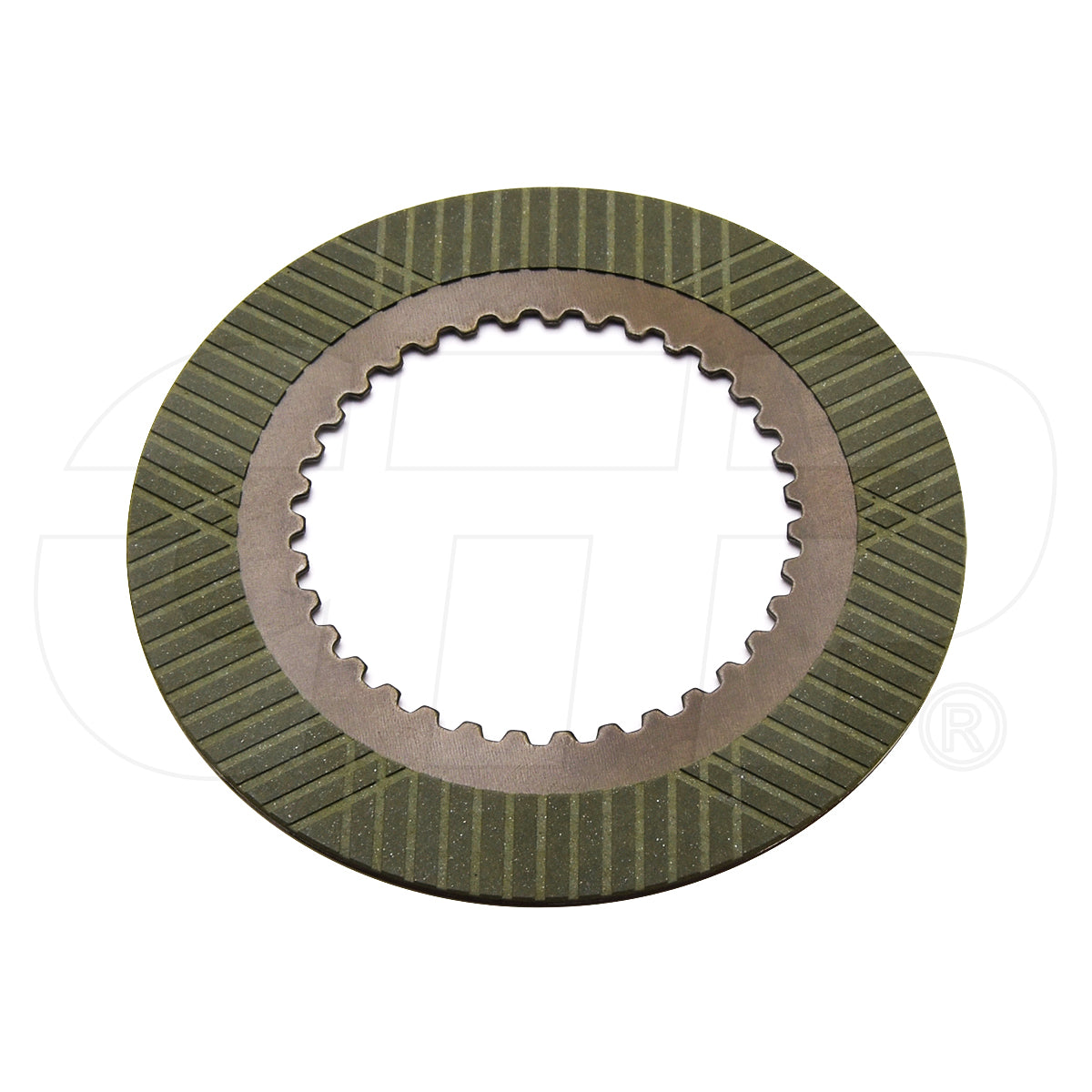

One New Aftermarket Replacement Friction Disc for Caterpillar (Cat) Wheeled Excavators
This friction disc is a wet brake and transmission clutch component used in the braking and steering system of Caterpillar M-series wheeled excavators. The paper-faced friction disc engages within multi-disc clutch or brake assemblies to control travel and swing functions. Verify your serial number before ordering -- serial number restrictions may apply to specific production ranges within each model series.
Specifications
- Material: Paper friction
- Outer Diameter: 179.0 mm
- Inner Diameter: 103.0 mm
- Thickness: 3.5 mm
- Groove Pattern: 3-Pass
- Teeth: 35 (Internal)
- Weight: 0.27 kg (0.6 lbs)
- Spline Engagement: Internal
Compatible Models
Caterpillar (Cat) M-Series Wheeled Excavators: M312, M313C, M315, M315C, M316C, M318
Replaces Part Number(s):
1217632
New aftermarket replacement part - not remanufactured, not used.
