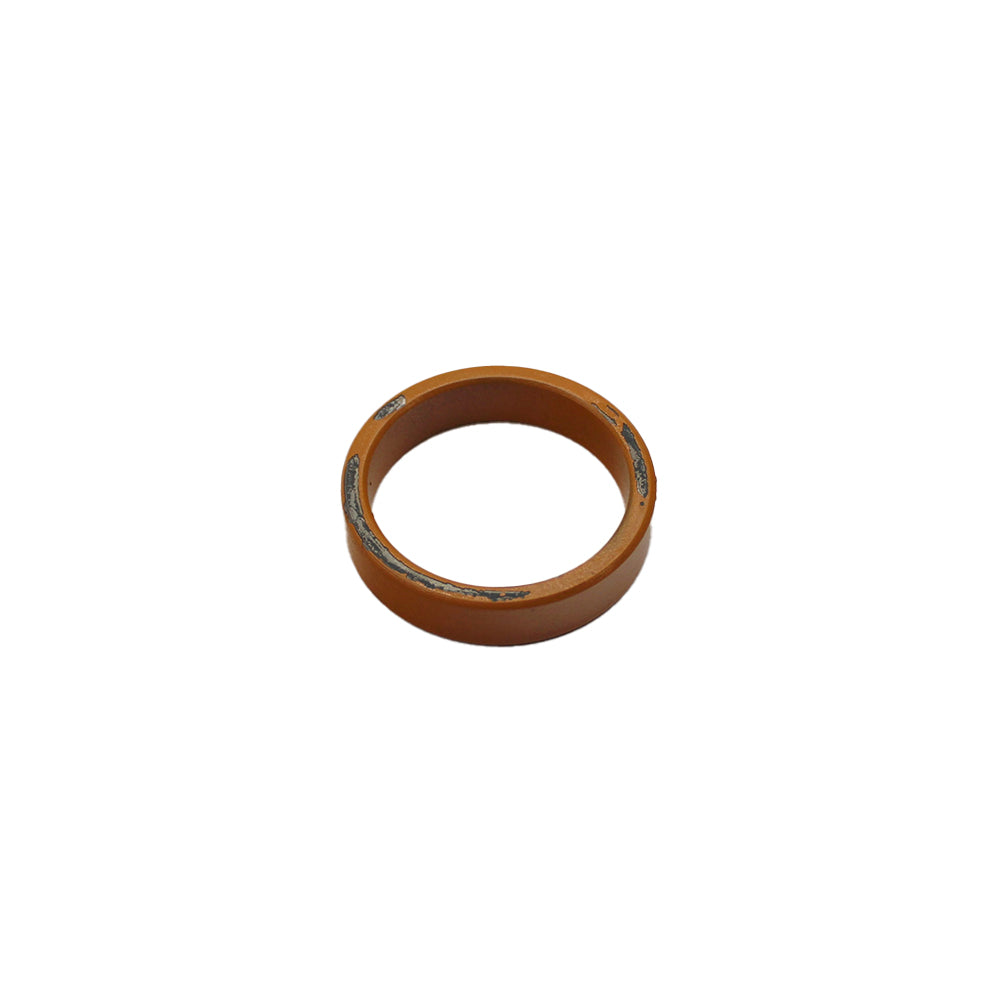

121166A1 Bushing, spacer Fits Case 650G, 650H, 750H, 850G, 850H

121166A1 Bushing, spacer Fits Case 650G, 650H, 750H, 850G, 850H

$48.00 CAD
$48.00 CAD
Sale Sold out
Shipping calculated at checkout.

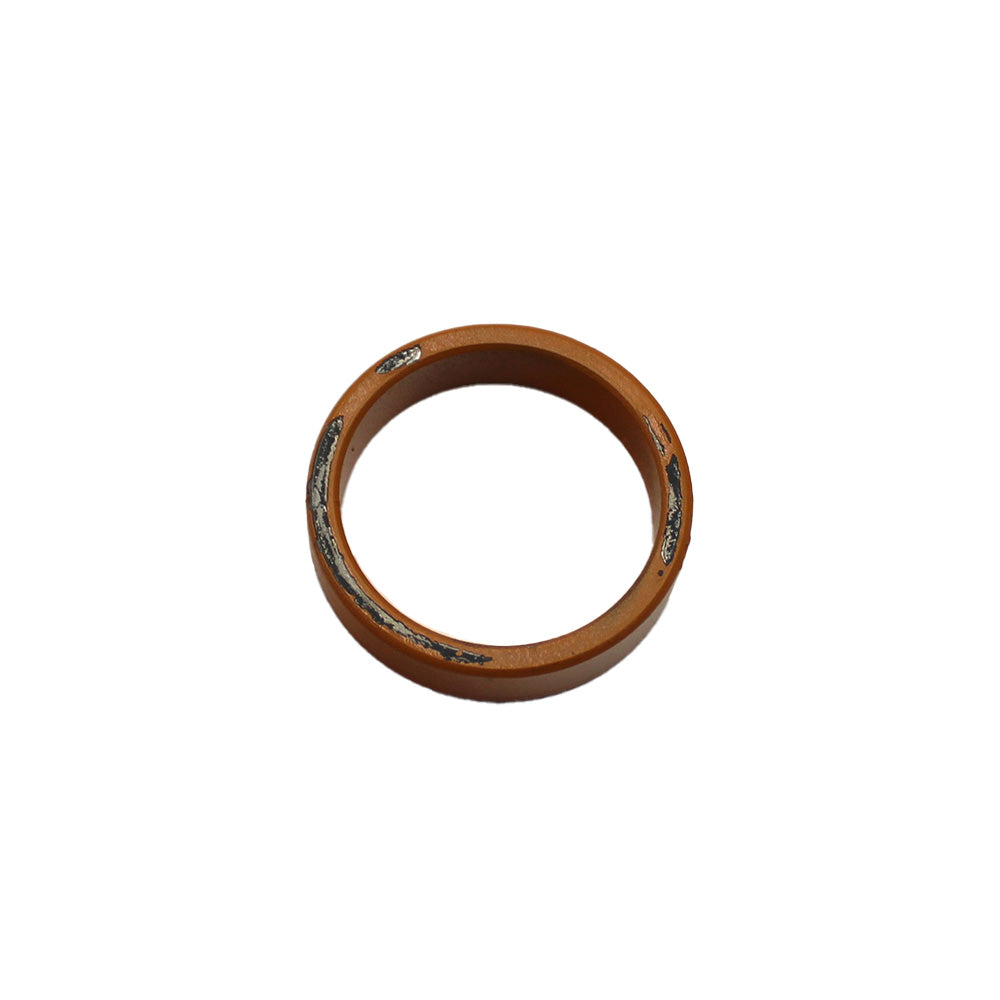

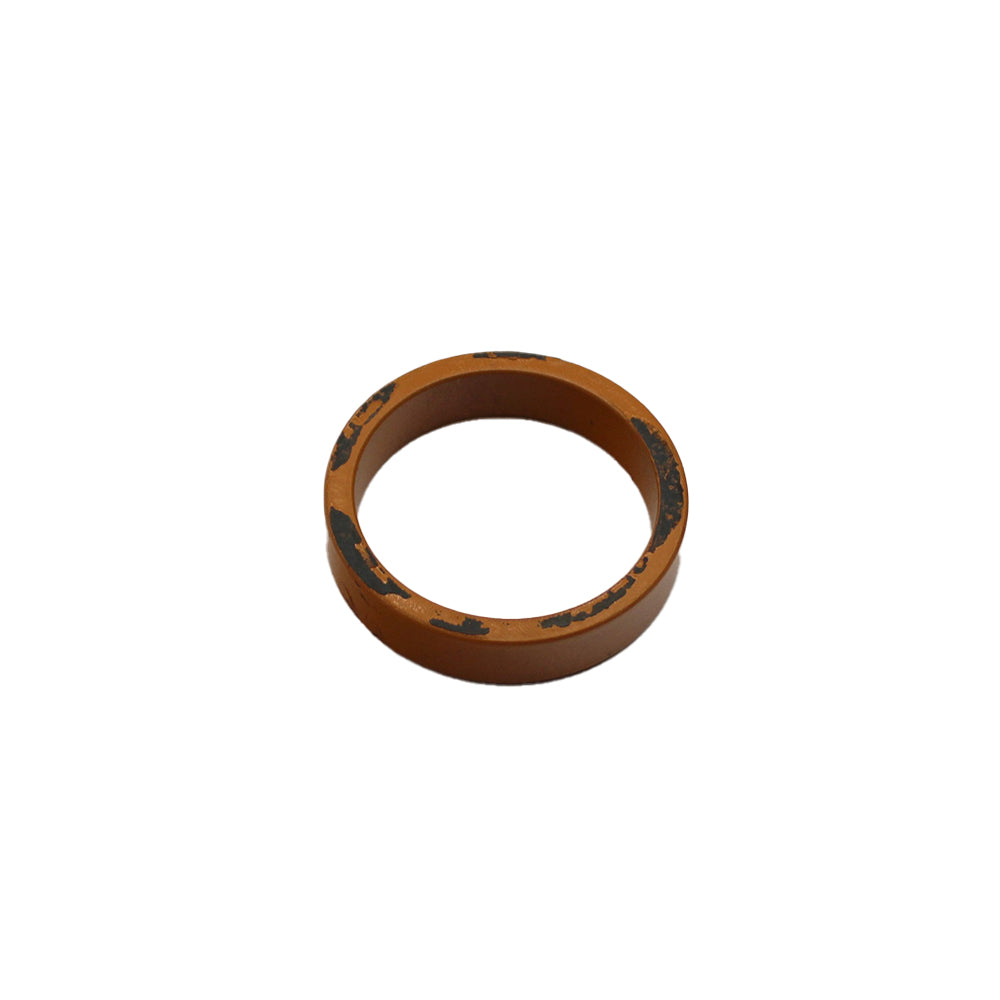

One New Aftermarket Replacement Blade Frame Pivot Bushing Fits Case Crawler Dozers

This rear blade frame pivot bushing (spacer) fits the dozer blade assembly on Fits Case 650G, 650H, 750H, 850G, and 850H crawler dozers. It is used at the blade frame pivot point, with four bushings required per machine. Replace this bushing when servicing the blade articulation or pivot areas to restore proper pin alignment and blade function.

Specifications

  • Inner Diameter (ID): 45.26 mm (1.78 in.)
  • Outer Diameter (OD): 50.8 mm (2.00 in.)
  • Length: 12 mm (0.47 in.)
  • Quantity needed per machine: 4

Compatible Models

Fits Case Crawler Dozers: 550H, 650G, 650H, 750H, 850G, 850H

Replaces Part Number(s):

121166A1

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

650H, 750H, 650G, 850H, 850G

Reference Numbers:

121166A1
