1196211 Cartridge Fits Caterpillar Models

One New Aftermarket Replacement Turbocharger Cartridge for Caterpillar (Cat) 3406 Series Engines

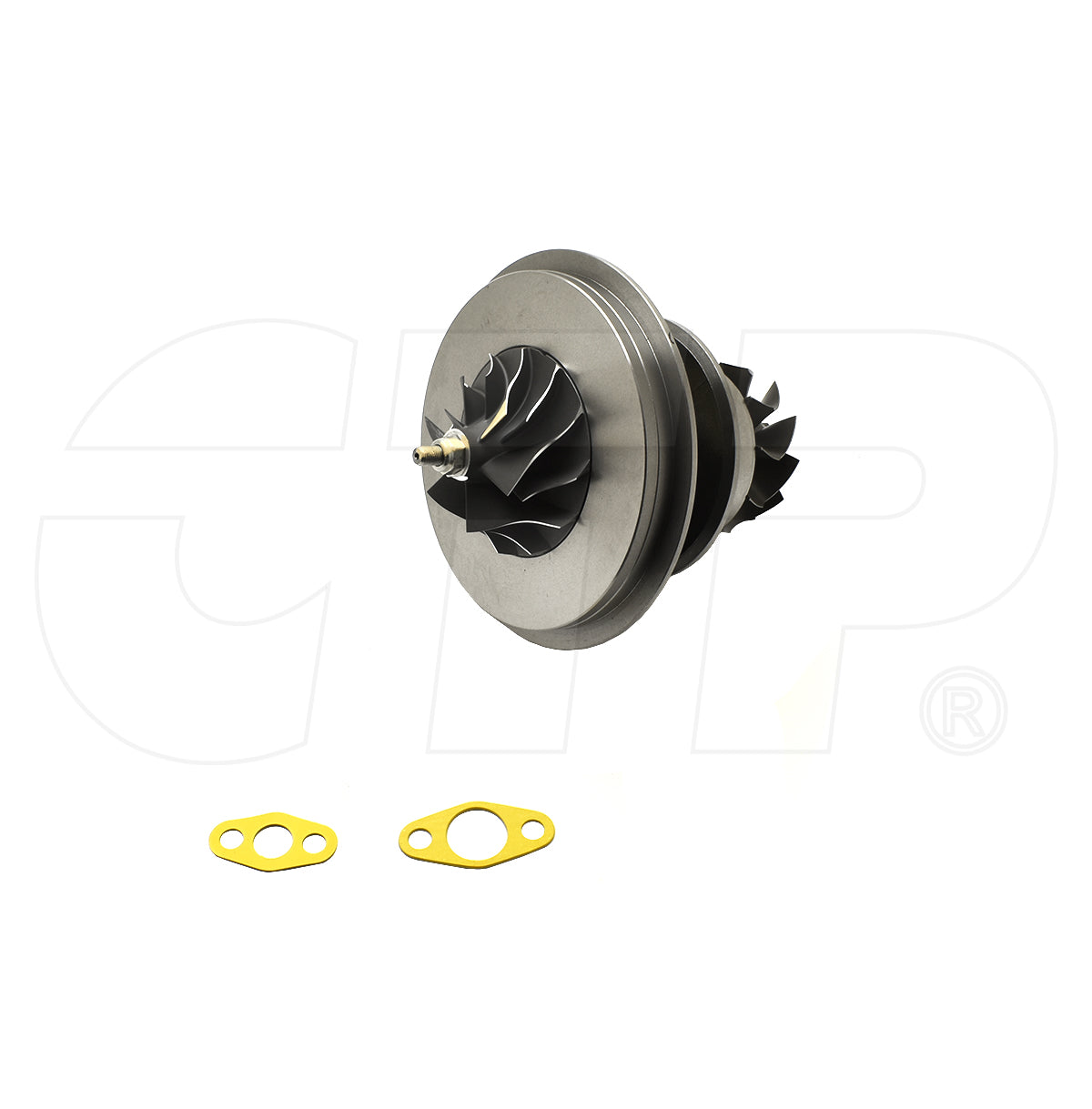

This aftermarket replacement turbocharger cartridge (Cartridge Group-Turbocharger) is a core rotating assembly within the turbocharger unit on Caterpillar 3406, 3406B, and 3406C diesel engines. It replaces OEM part number 119-6211 (1196211) and fits a range of Cat heavy construction, articulated truck, and road reclaimer applications powered by the 3406 engine family. The cartridge is the central bearing and shaft assembly of the turbocharger, responsible for supporting the turbine and compressor wheels and maintaining proper air compression to maximize engine power and efficiency.

Specifications

• Weight: approximately 17.2 lbs
• Dimensions: approximately 9.06 x 9.06 x 9.06 in.

Compatible Models

Caterpillar Engines: 3406, 3406B, 3406C (Industrial Engine, Serial 3ER00001-UP and 5H900001-UP)

Caterpillar Articulated Trucks: D350E (Serial 9LR00001-UP), D400E (Serial 2YR00001-UP)

Caterpillar Wheel Tractor-Scrapers: 623E, 623F

Caterpillar Road Reclaimers / Soil Stabilizers / Reclaimer Mixers: RM-250C (Serial AWG00001-UP), RR-250B (Serial 3RR00001-UP), SS-250B

Replaces Part Number(s):

1196211, 119-6211

Aftermarket Interchange Numbers

Cat Reman Reference: 0R-6949

New aftermarket replacement part - not remanufactured, not used.
