1193061 Sleeve Fits Caterpillar Models

One New Aftermarket Replacement Fuel Injector Sleeve for Caterpillar (Cat) 3114, 3116, and 3126 Engines

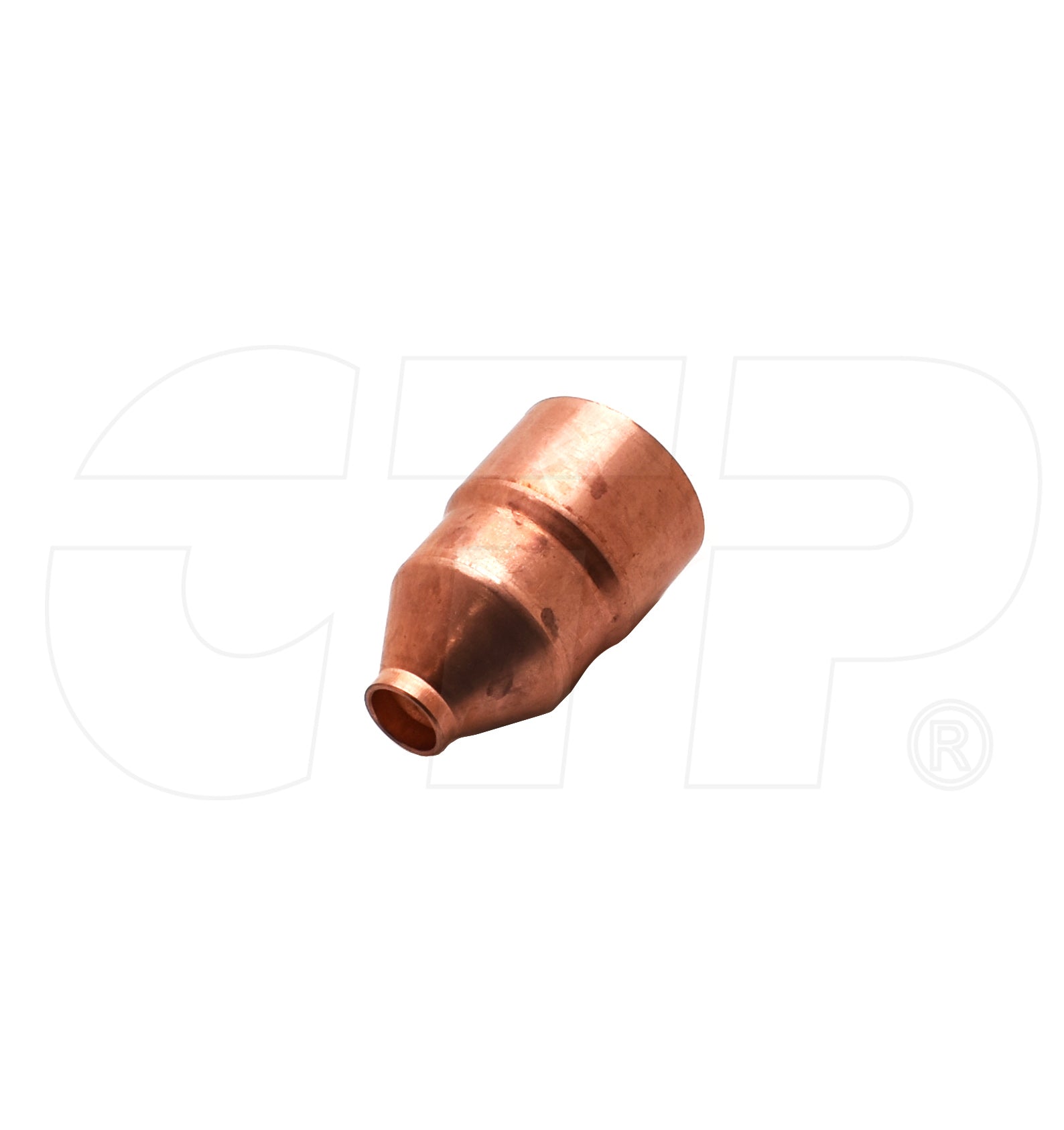

This copper injector sleeve (also called an injector tube or nozzle sleeve) installs in the cylinder head to provide a secure, leak-proof passage for the fuel injector into the combustion chamber. It is a direct aftermarket replacement for Caterpillar part number 1193061 (119-3061), suitable for a wide range of Cat construction, agricultural, and paving equipment powered by the 3114, 3116, and 3126 engine families.

Specifications

• Material: Copper
• Outer Diameter: 30.82 mm
• Weight: approx. 0.09 lbs (0.2 kg)
• Application: Fuel injector sleeve / injector tube for cylinder head

Compatible Models

Caterpillar Engines: 3114, 3116, 3126

Caterpillar Excavators: M318, M320, M325B, 320 L, 320-A, 320-A L, 320-A N, 320B, 320B L, 320B N, 320N, 322 L, 322 LN, 322-A L, 322-A LN, 322-A N, 322B L, 322B LN, 322C, 322C FM, 325L

Caterpillar Wheel Type Loaders: 910E, 910F, 924F, 928F, 928G, 938F, 938G, 950F, 950F II, 950G, 960F, 962G

Caterpillar Backhoe Loaders: 446B, 446D

Caterpillar Paving Compactors: CB-434, CB-634, CB-634C, CB-634D, CP-533, CP-533C, CP-533D, CP-563, CP-563C, CP-563D, CS-531, CS-531C, CS-531D, CS-533, CS-533C, CS-533D, CS-563, CS-563C, CS-563D, CS-573, CS-573C, CS-573D, CS-583, CS-583C, CS-583D

Caterpillar Motor Graders: 120H, 120H ES, 120H NA, 135H, 135H NA

Caterpillar Wheel Type Skidders: 525B, 535B

Caterpillar Integrated Toolcarriers: IT12B, IT14F, IT24F, IT28F, IT28G, IT38F, IT38G, IT62G

Caterpillar Wheel Tractor Scrapers: 613C, 613C II

Caterpillar Asphalt Pavers: AP-900B, AP-1000, AP-1000B, AP-1050, AP-1050B, AP-1055B, BG-240C, BG-2455C, BG-245C, BG-260C

Caterpillar Forest Products: 533, 539, 543, 550, 570, 574, 580, TK370, TK371, TK380, TK381

Caterpillar Track Type Tractors: D5M, D6M

Caterpillar Challengers: 35, 45, 55

Caterpillar Combines: 460, 465, 470

Caterpillar Articulated Dump Trucks: D20D, D250D

Caterpillar Pipelayers: 561M

Replaces Part Number(s):

1193061, 119-3061, 7W5749, 7W-5749, 1013254, 101-3254

Aftermarket Interchange Numbers

PAI 392085, CAP392085, Interstate-McBee M-1193061, M-1013254, M-7W5749, CA-T064, IPD 1193061, FP1193061, 240-1002

New aftermarket replacement part - not remanufactured, not used.
