1149297 Lining As-Brake Fits Caterpillar Models
1149297 Lining As-Brake Fits Caterpillar Models
Couldn't load pickup availability

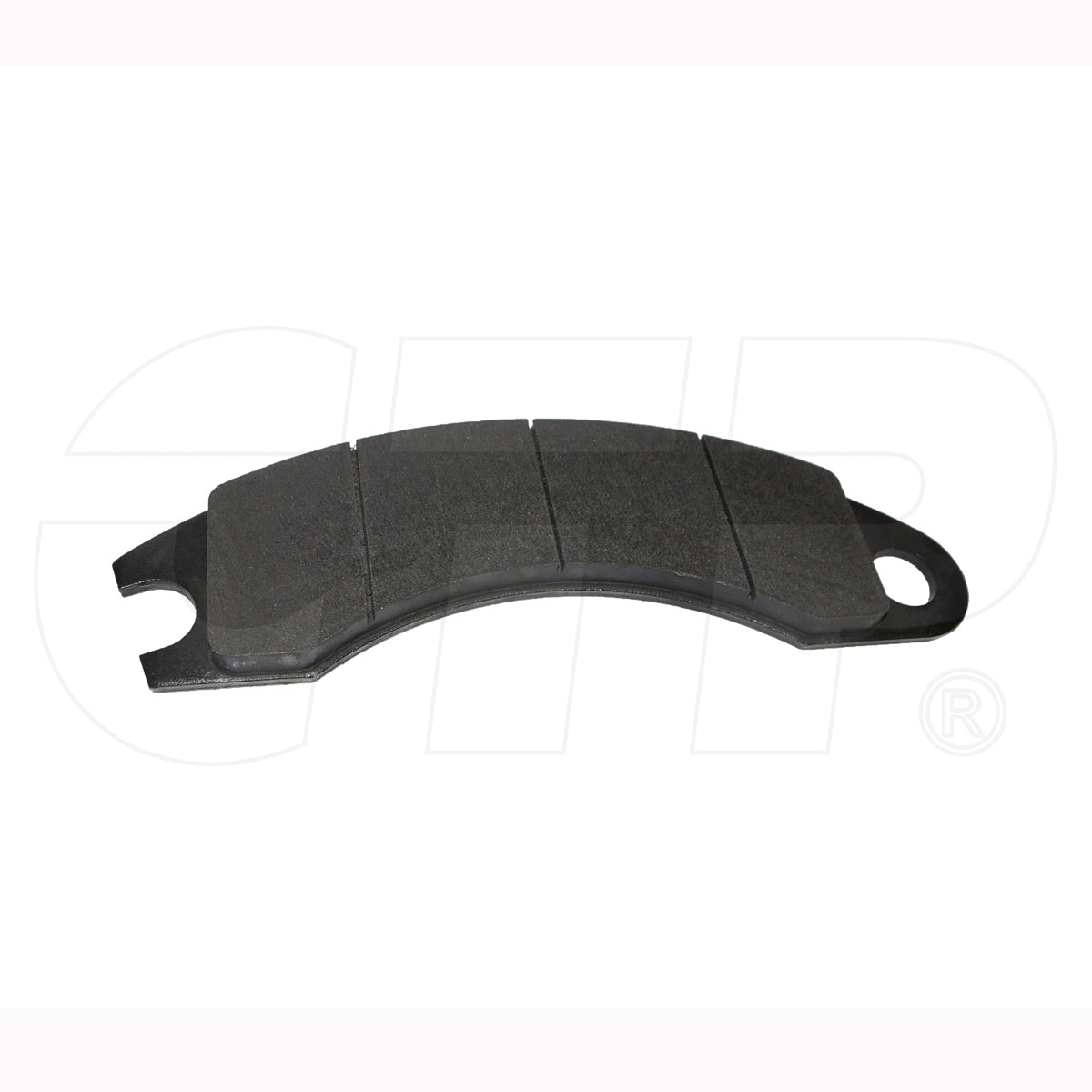

One New Aftermarket Replacement Brake Lining Assembly for Caterpillar (Cat) Off-Highway Trucks
This brake lining assembly (also known as a brake disc pad) is a key component of the hydraulic caliper brake system on Caterpillar off-highway and quarry trucks. Located at the wheels, the lining provides the friction surface that slows, stops, or holds the machine stationary. Replaces OEM part number 1149297 (also formatted as 114-9297 or CA1149297).
Specifications
- Length: 444 mm (17.5 in)
- Width: 143 mm (5.56 in)
- Thickness: 25 mm (0.98 in)
- Weight: approx. 8 lb (4 kg)
- Material: Non-asbestos disc brake lining
- Position: Outboard caliper
Compatible Models
Caterpillar Off-Highway Trucks: 69D, 769C, 769D, 770, 770G, 770G OEM, 771C, 771D, 772, 772B, 772G, 772G OEM, 773B, 773D, 773E, 773F, 773G, 773G LRC, 773G OEM, 775B, 775D, 775E, 775F, 775G, 775G LRC, 775G OEM, 776D, 777D, 777F
Caterpillar Quarry Trucks: 771C, 771D, 775B, 775D
Caterpillar Tractors: 772B, 776D
Replaces Part Number(s):
1149297, 114-9297, CA1149297
New aftermarket replacement part - not remanufactured, not used.
