One New Aftermarket Replacement Bearing Sleeve for Caterpillar (Cat) Excavators

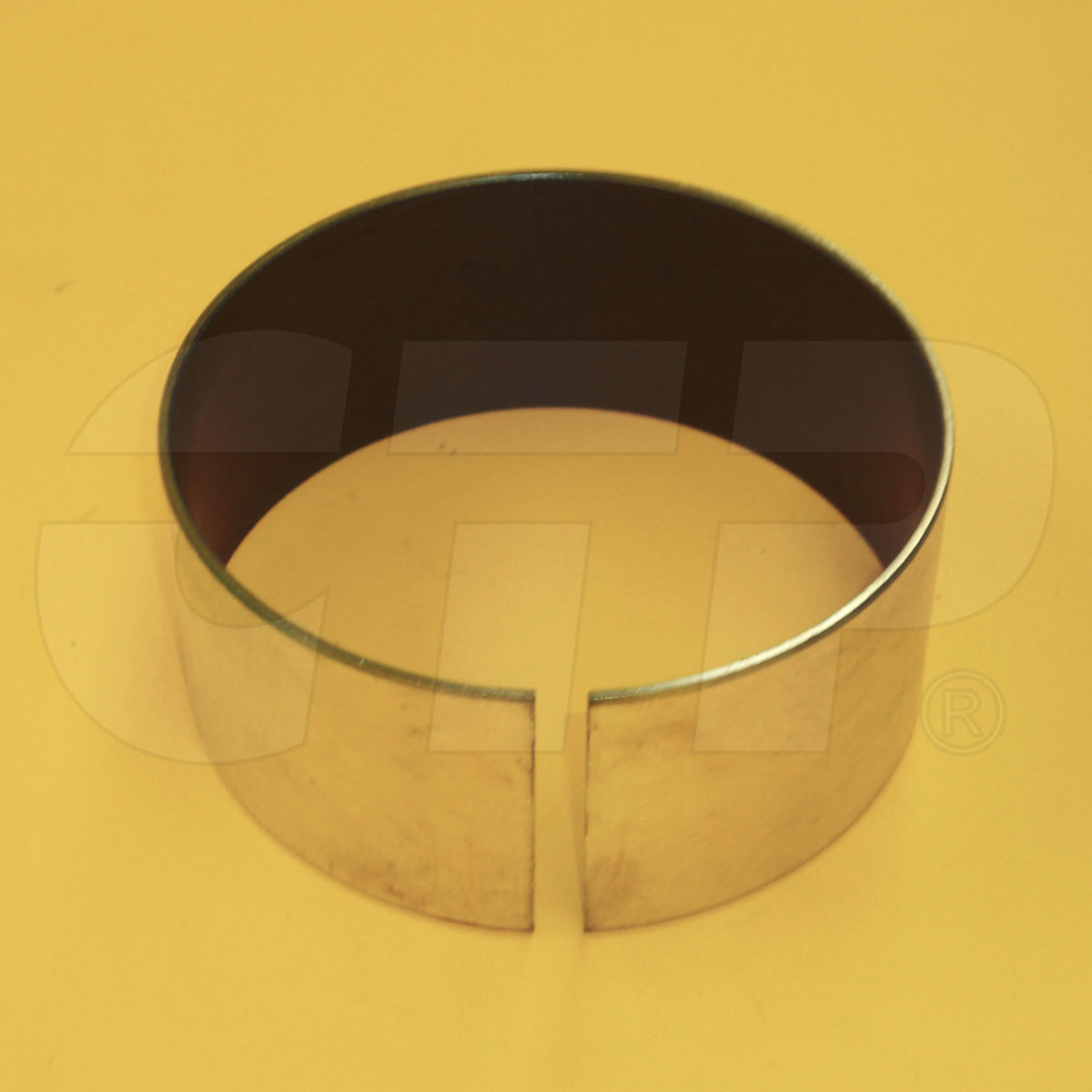

This aftermarket replacement bearing sleeve (part number 1140763) is a straight sleeve bushing used in the dipper stick (arm) assembly on a wide range of Caterpillar hydraulic excavators. It supports pin loads at the arm pivot joint, reducing wear and maintaining proper clearance in the linkage system.
Specifications
- Part Type: Sleeve Bearing (Bushing)
- Application: Dipper Stick (Arm) Assembly
- Inside Diameter: Approximately 130 mm
- Outside Diameter: Approximately 135 mm
- Length: Approximately 60 mm
- Material: Steel-backed PTFE composite
Compatible Models
Caterpillar Excavators: 312D, 325B L, 325C FM, 325D FM, 325D FM LL, 330B L, 330C FM, 330D FM, 345B II, 345B L, 345C, 345C L, 345D, 345D L, 345D L VG, 349D, 349D L, 349E, 349E L, 349E L VG, 349F L, 350, 350 L, 365B, 365B II, 365B L, 365C, 365C L, 365C L MH, 374D
Replaces Part Number(s):
1140763, 114-0763
New aftermarket replacement part - not remanufactured, not used.
