One New Aftermarket Replacement Electric Starter Fits John Deere (Fits JD) Lawn Tractors with Kohler Engines

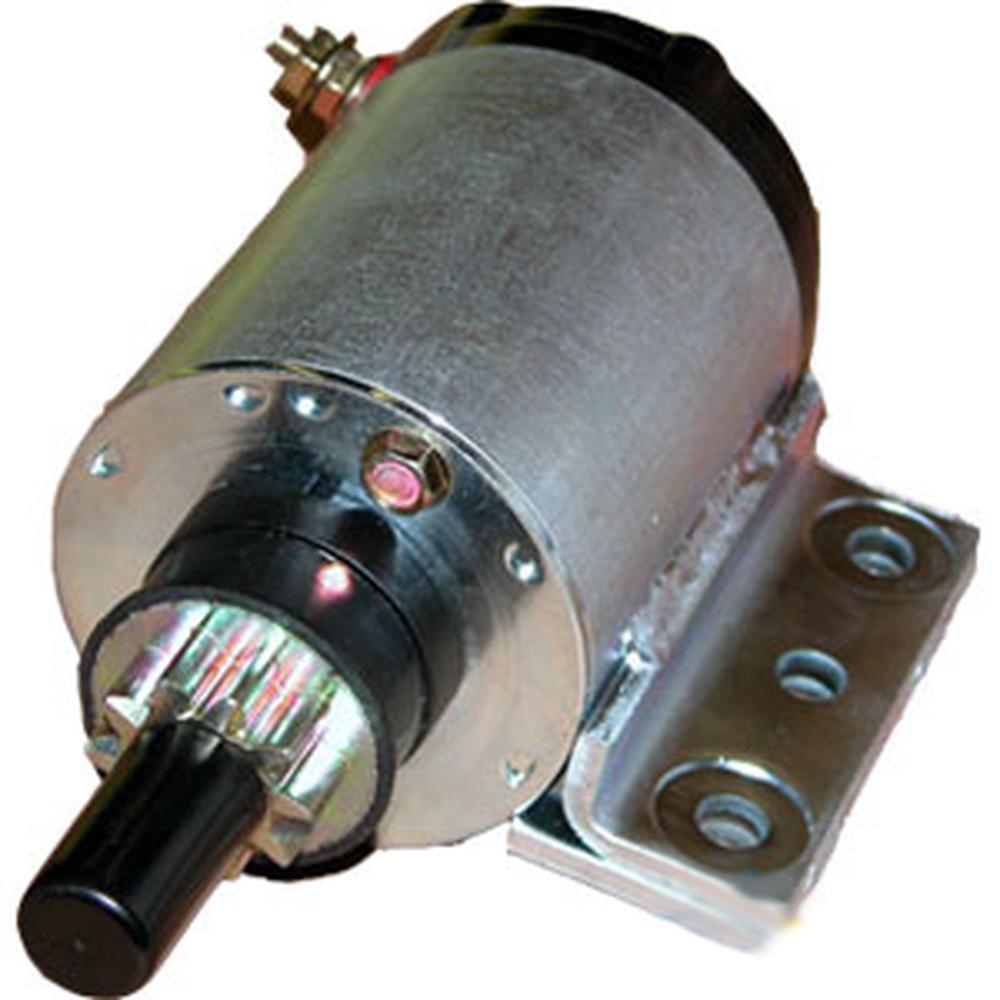

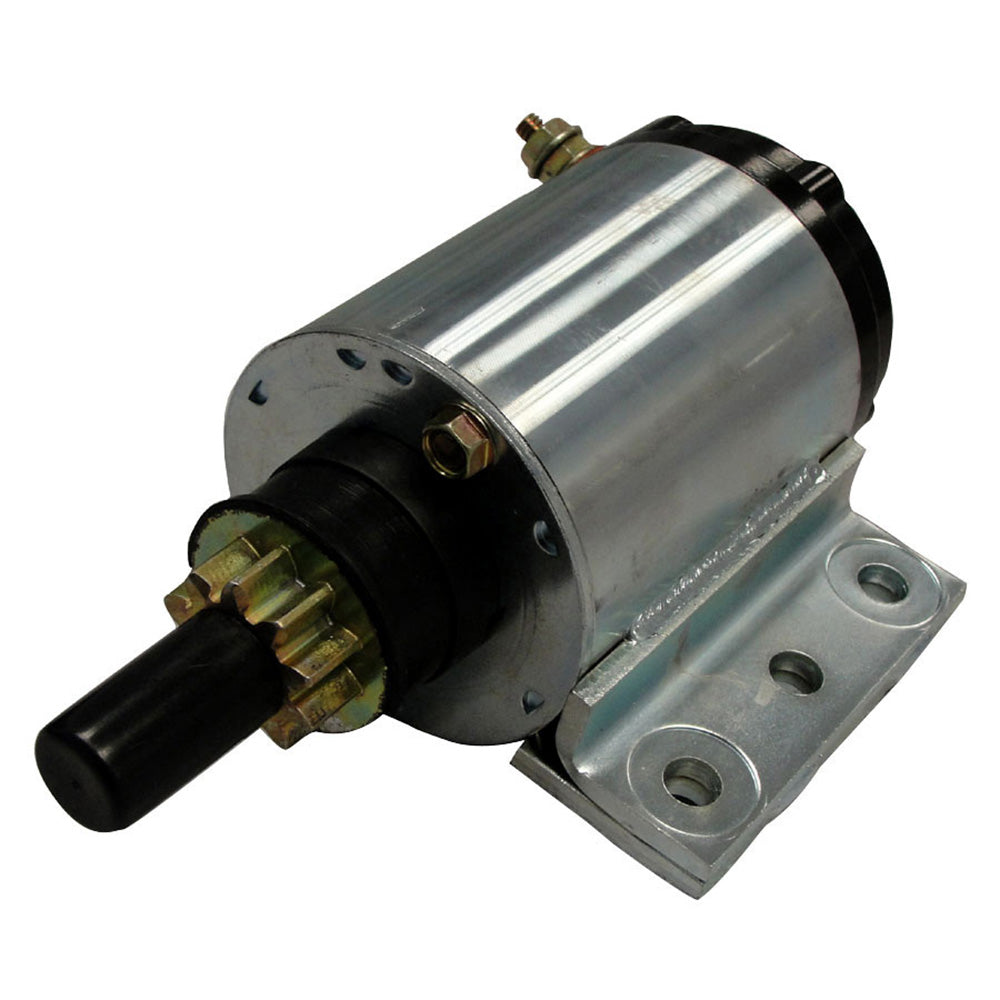

This 12-volt PMDD electric starter motor is a direct aftermarket replacement Fits John Deere lawn and garden tractors equipped with Kohler K-series air-cooled engines. It fits a wide range of Fits John Deere 100- and 200-series riding mowers, the 60 Skid Steer, and Fits Toro Greensmaster 300 turf equipment. The starter features counterclockwise (CCW) rotation and a 10-tooth drive gear.
Specifications
- Voltage: 12V
- Type: PMDD
- Rotation: CCW (Counterclockwise)
- Number of Teeth: 10
- Gear OD: 1.268 in / 32.2 mm
- Length: 7-1/4 in (3.45 in / 87.6 mm field Fits Case)
- Stud Mount: 3/8 in
- Center-to-Center: 2-5/8 in
- Mounting Ear Hole: 9.6 mm Unthreaded (x3)
- Weight: 5.65 lbs / 2.57 kg
Compatible Models
Fits John Deere Lawn Tractors: 110 (10HP, 1972-1974), 112 (10HP 1969-1971; 12HP 1972-1974), 120 (12HP 1970-1971), 140 (12HP 1968; 14HP 1969-1974), 200, 210 (K241AQS 10HP, 1975-1987), 212 (K301AQS 12HP, 1975-1987), 214, 216, 300 (1985-1987), 312 (K301AS 12HP, 1977-1978), 314, 316
Fits John Deere Skid Steer: 60 (17HP Engine, 1977-1984)
Kohler Engines: K-241 (1975-1987), K-301 (1975-1987), K-321, K-341 (1979-1987)
Fits Toro: Greensmaster 300
Replaces Part Number(s):
1635340, 1635340-A, 45-098-07, 45-098-09, 45-098-09-A, 5761N, 5761N-A, 5761NLG, 5761NLG-A, 5761N_NDL-9, AM119837, AM119837-A, AM31568, AM31568-A, AM3242B, AM3242B-A, AM32789, AM32789-A, AM34248, AM34248-A, AM3424B, AM34631, AM34869, AM34888, AM37032, AM37869, AM37869-A, AMJ7869, SE501859, SE501859-A, SM05994, 51-098-01
Aftermarket Interchange Numbers
A236396, A237131, A237510, A237534, 1042-653-M92, 1048-570-M92, 0599440, 1635323, 1635340-M030SM, 5666140, SAB0043, SMH12A2, SMH12A4, SME12A11, SM16353, SM15701, SM12507, SM11463, 410-21013, 410-21084
New aftermarket replacement part - not remanufactured, not used.
