Spindle Shaft w/ Pilot Bearing, Nut & Washer Fits AYP Replaces 110485X

Spindle Shaft w/ Pilot Bearing, Nut & Washer Fits AYP Replaces 110485X

$46.00 CAD
$46.00 CAD
Sale Sold out
Shipping calculated at checkout.

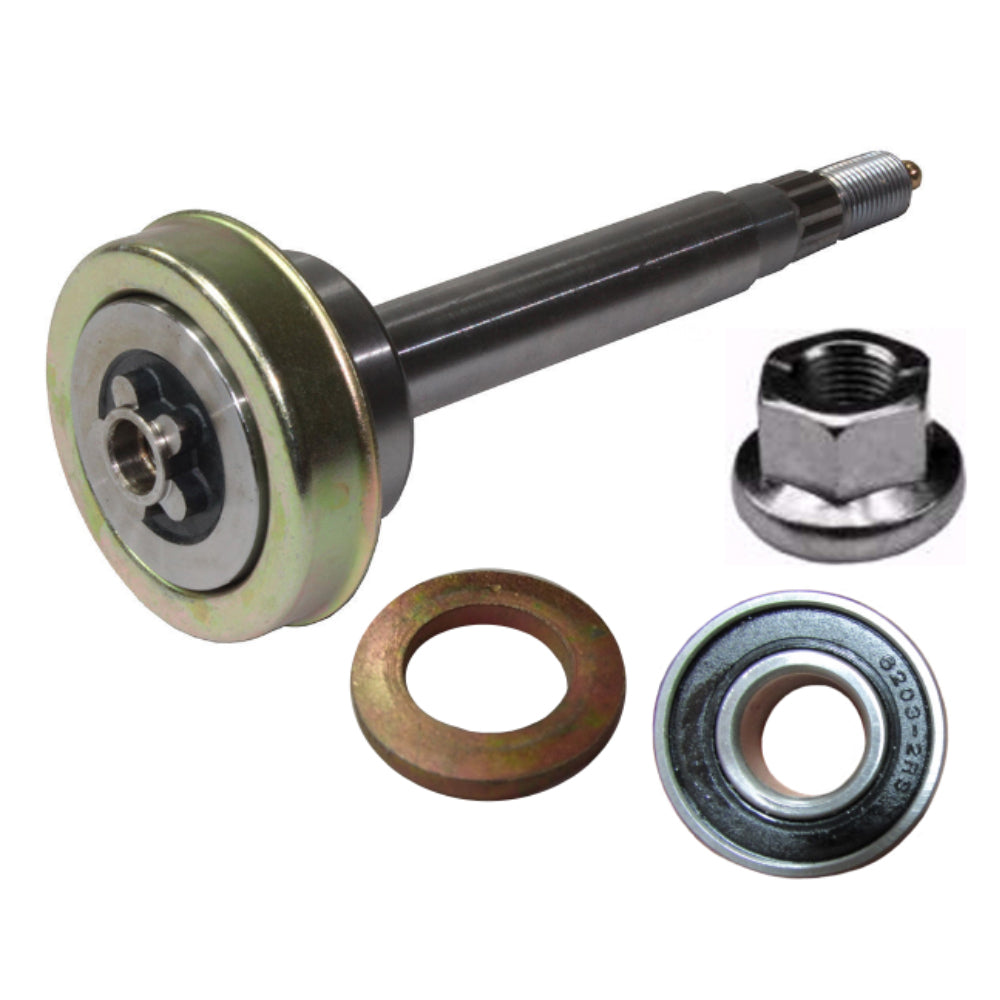

One New Aftermarket Spindle Shaft w/ Pilot Bearing, Nut & Washer

Tech Info:
 -Set Contains:
 -
 -(1) Spindle Washer
 -I.D.: 11/16"
 -O.D.: 1-1/8"
 -Thickness: 5/32"
 -Replaces Part Number(s): 532187690, 129963, 171245, 532129963, 187690, 539107520, 129963X053
 -
 -(1) Pulley Lock Nut
 -Thread Length: 9/16"-18
 -OD: 1-1/4"
 -Thickness: 3/4"
 -Type: Flange
 -Hex: 7/8"
 -Replaces Part Number(s): 137266, 139729, 178342, 400234, 532137266, 532139729, 73040900, 73050900, 532400234, 596134801
 -
 -(1) Spindle Shaft
 -Approx. 7-1/2" Length
 -5 Point Star Center Hole
 -Fits 46", 48" and 54" Decks
 -Replaces Part Number(s): 532187291, 532192872, 192872
 -
 -(1) Pilot Bearing
 -Has rubber seals on both sides of bearing
 -I.D.: 21/32"
 -Height: 15/32"
 -O.D.: 1-9/16"
 -Replaces Part Number(s): 110485X, 532110485, 532 11 04-85, 5853239-01

Fits AYP:
 Replaces Part Number(s): 532187690, 129963, 171245, 532129963, 187690, 539107520, 129963X053, 137266, 139729, 178342, 400234, 532137266, 532139729, 532187291, 532192872, 192872, 110485X, 532110485, 532 11 04-85, 5853239-01

Models This Part Fits:

187291, 192872, 532187291

Additional Information:

Set Contains: (1) Spindle Washer I.D.: 11/16" O.D.: 1-1/8" Thickness: 5/32" Replaces Part Number(s): 532187690, 129963, 171245, 532129963, 187690, 539107520, 129963X053 (1) Pulley Lock Nut Thread Length: 9/16"-18 OD: 1-1/4" Thickness: 3/4" Type: Flange Hex: 7/8" Replaces Part Number(s): 137266, 139729, 178342, 400234, 532137266, 532139729, 73040900, 73050900, 532400234, 596134801 (1) Spindle Shaft Approx. 7-1/2" Length 5 Point Star Center Hole Fits 46", 48" and 54" Decks Replaces Part Number(s): 532187291, 532192872, 192872 (1) Pilot Bearing Has rubber seals on both sides of bearing I.D.: 21/32" Height: 15/32" O.D.: 1-9/16" Replaces Part Number(s): 110485X, 532110485, 532 11 04-85, 5853239-01

Reference Numbers:

532187690, 129963, 171245, 532129963, 187690, 539107520, 129963X053, 137266, 139729, 178342, 400234, 532137266, 532139729, 532187291, 532192872, 192872, 110485X, 532110485, 532 11 04-85, 5853239-01

Product Sub Group:

Spindles
