(3) Mower Deck Spindles & (3) Mower Blades Fits Toro Replaces 110-6837-03

$375.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

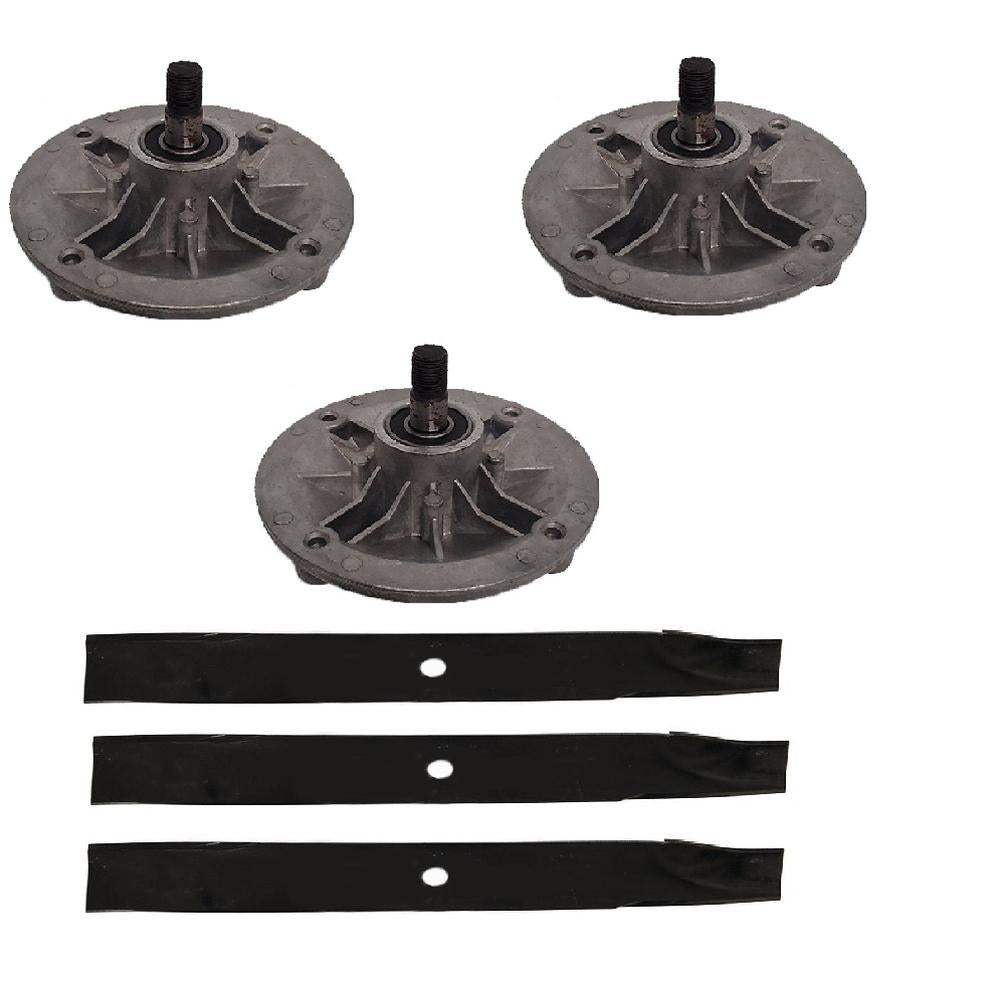

One New Aftermarket (3) Mower Deck Spindles & (3) Mower Blades

Tech Info:
-Kit Contains:
-(3) Spindle Assemblies
-1-1/2" ID x 6-1/4" OD x 3-5/8" HT
-Spindle Housing Assembly with Short Shaft.
-This Assembly Consists of the Following:
-88-4510 Spindle Housing
-117-1192 Short Shaft
-100-1048 Bearings
-62-3661 Spacer
-80-4380 Spacer
-80-4360 Shield
-
-Replaces Part Number(s):
-110-6866, 117-1192
-
-(3) Lawn Mower Blades
-Length: 17-1/2"
-Width: 2-1/4"
-Center Hole: 5/8"
-Thickness: .160"
-
-Replaces Part Number(s):
-110-6837-03, 112-9759, 112-9759-03, 115-5059, 115-5059-03, 79016P

Made to Fits Toro:
Zero-Turn Mower Models: Timecutter Z
Replaces Part Number(s): 110-6866, 117-1192, 110-6837-03, 112-9759, 112-9759-03, 115-5059, 115-5059-03, 79016P

Models This Part Fits:

Timecutter Z

Additional Information:

Kit Contains: (3) Spindle Assemblies 1-1/2" ID x 6-1/4" OD x 3-5/8" HT Spindle Housing Assembly with Short Shaft. This Assembly Consists of the Following: 88-4510 Spindle Housing 117-1192 Short Shaft 100-1048 Bearings 62-3661 Spacer 80-4380 Spacer 80-4360 Shield Replaces Part Number(s): 110-6866, 117-1192 (3) Lawn Mower Blades Length: 17-1/2" Width: 2-1/4" Center Hole: 5/8" Thickness: .160" Replaces Part Number(s): 110-6837-03, 112-9759, 112-9759-03, 115-5059, 115-5059-03, 79016P
