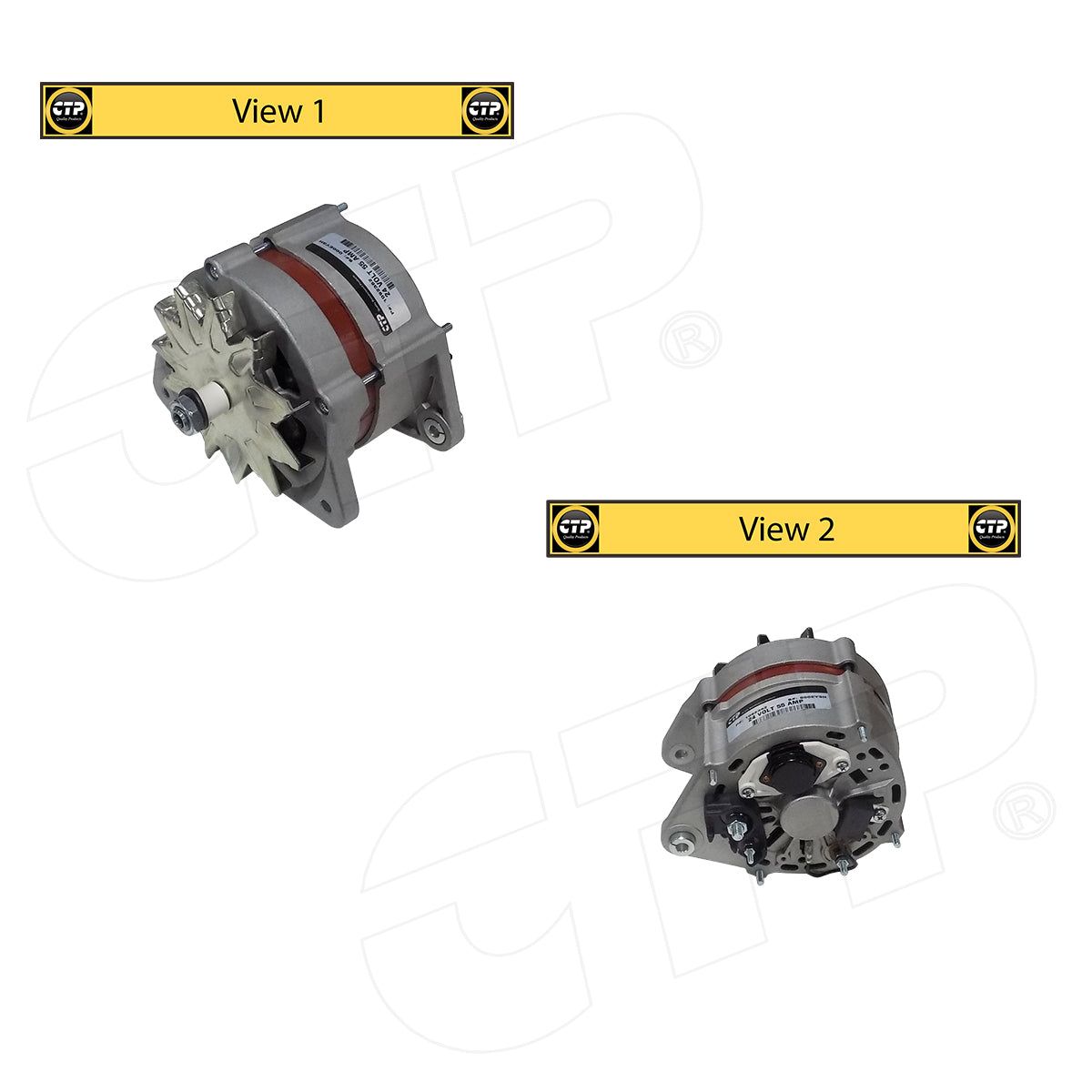

1092362 Alternator Gp Fits Caterpillar Models

One New Aftermarket Replacement Alternator for Caterpillar (Cat) Excavators and Pavers

This aftermarket replacement Alternator Gp (Charging) fits Caterpillar excavators, wheeled excavators, asphalt pavers, and forestry equipment powered by the Perkins/Cat 3054, 3054B, and 3056 engines. It is a Bosch-type 24-volt, 55-amp unit with an external fan, internal regulator, and negative polarity -- a direct charging system replacement for the models listed below.

Specifications

• Voltage: 24V
• Amperage: 55A
• Unit Type: Bosch
• Fan: External
• Regulator: Internal
• Polarity: Negative
• Regulator Position: 9:00
• B+ Terminal: M8-1.25
• Weight: Approx. 14 lbs / 6.35 kg

Compatible Models

Caterpillar Excavators: 307, 307-A, 312, 312-A, 312B, 312B L, 312C, 312C L, 315, 315-A, 315B L, 317, 317-A, 317N

Caterpillar Wheeled Excavators: M312, M315, M316C, M318C, M318C MH, M322C

Caterpillar Asphalt Pavers: AP-650B, BG-225C

Caterpillar Forestry / Other: 554 Forwarder

Caterpillar Engines (Industrial): 3054, 3054B, 3056

Replaces Part Number(s):

1092362, 109-2362

Aftermarket Interchange Numbers

Perkins: 2871C202 | Bosch: 0-120-469-032, 0120469032 | Volvo: 3976608, 8113097 | Lucas: LRA02494 | HC-Cargo: 113186 | Elstock: 48-3681 | JCB: 714-34100 | Prestolite Electric: 66021532 | DRI: 572.107.554 | N39877

New aftermarket replacement part - not remanufactured, not used.
