1060097 Motor As-Gov Fits Caterpillar Models
1060097 Motor As-Gov Fits Caterpillar Models
Regular price
$983.00 CAD
Regular price
Sale price
$983.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

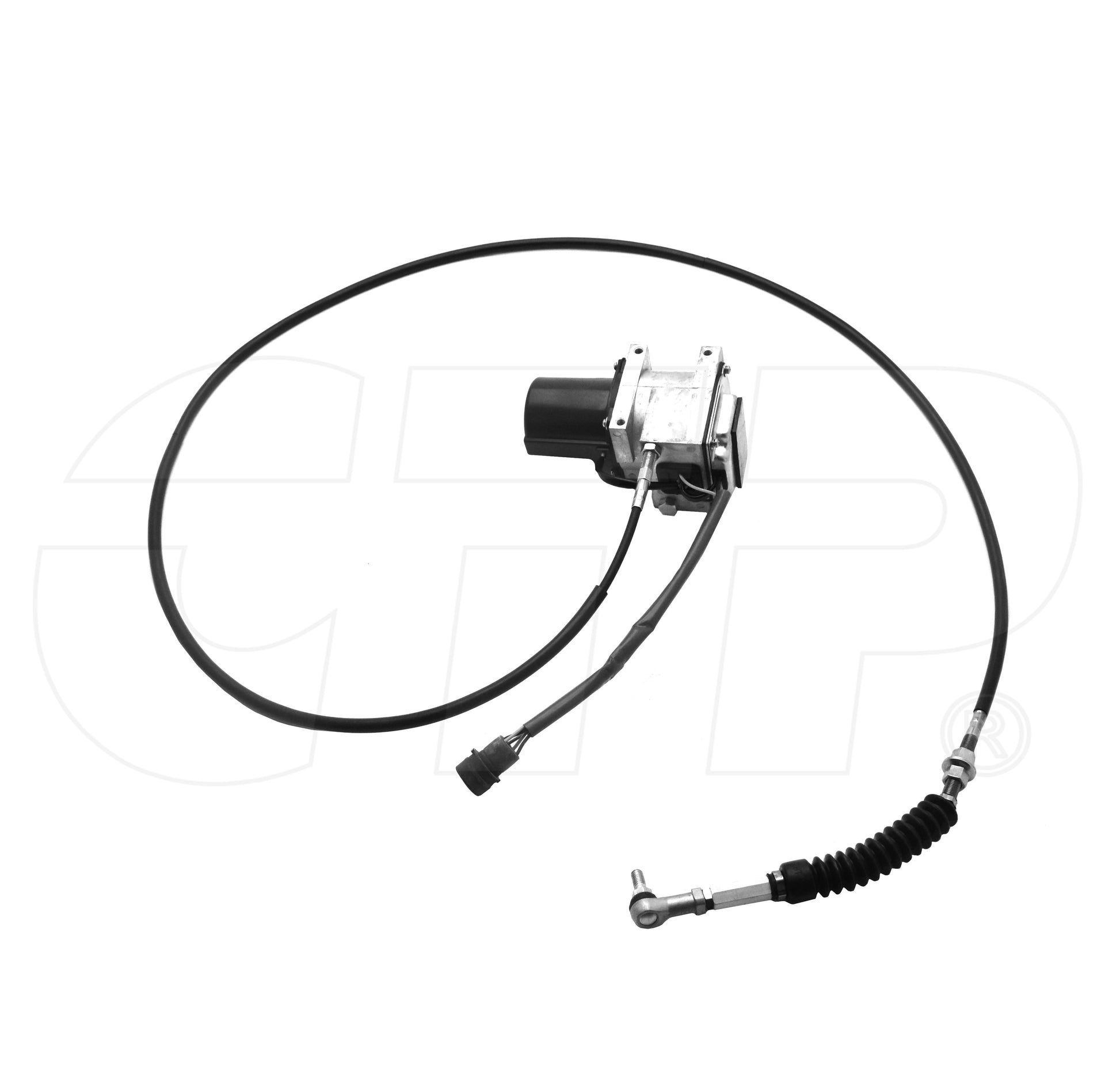

One New Aftermarket Replacement Governor Motor (Motor As-Gov) for Caterpillar (Cat) Excavators
This governor motor assembly is a key component of the engine fuel delivery system, controlling the supply of fuel to the engine to regulate speed and throttle response. It is a single-cable, 5-pin stepping throttle motor designed for Caterpillar mid- to large-size hydraulic excavators equipped with 3054, 3116, and 3306 engines.
Specifications
- Part Number: 106-0097 / 1060097
- Length: 10.6 in (269.24 mm)
- Width: 10.6 in (269.24 mm)
- Height: 5.5 in (139.7 mm)
- Weight: 6.35 lbs (2.88 kg)
- Cable Configuration: Single cable, 5-pin connector
- Engine Compatibility: Caterpillar 3054, 3116, 3306
Compatible Models
Caterpillar Excavators: 315, 317, 317N, 325, 325L, 325LN, 325BL, 330, 330L, 330LN, 330 FM L, E325B, E325BL
Replaces Part Number(s):
1060097, 106-0097
Aftermarket Interchange Numbers
247-5234, 2475234, 106-0092, 1060092, 106-0100, 1060100, 105-0092, 1050092, 102-0095, 1020095, 126-3020, 1263020, 7Y-5558, 7Y5558
New aftermarket replacement part - not remanufactured, not used.
