Engine Tune Up Kit Fits Woods Replaces 1005323

Engine Tune Up Kit Fits Woods Replaces 1005323

$77.00 CAD
$77.00 CAD
Sale Sold out
Shipping calculated at checkout.

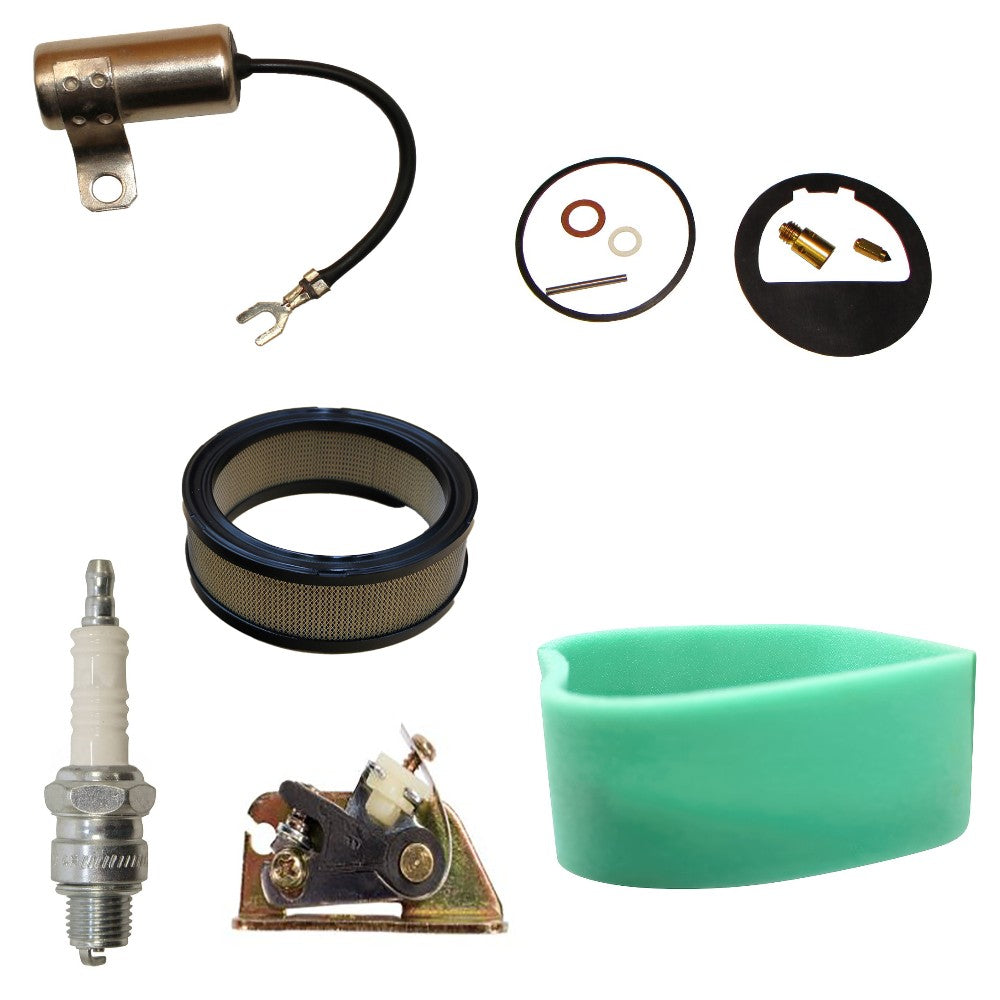

One New Aftermarket Engine Tune Up Kit

Tech Info:
 -(1) Condenser
 -Replaces Part Numbers: 21A251, AONN12300A, KOH230722
 -
 -(1) Air Filter
 -2-1/2" Height
 -7" Outer Diameter
 -5-5/8" Inner Diameter
 -Replaces Part Numbers: 47 083 03, 47 083 03-S, 47 083 03-S1
 -
 -(1) Spark Plug
 -Autolite 216
 -Thread 14mm
 -Replaces Part Numbers: 14L9, 43LS, B4L-PLUG, B6L, C43L, CR45
 -
 -(1) Ignition Points
 -Replaces Part Numbers: 47 150 03-S, 220980
 -
 -(1) Pre-Filter
 -Foam
 -Height: 3-1/8"
 -Length: 6-1/4"
 -Width: 2-7/8"
 -Replaces Part Numbers: 11013-2109, 11013-2140
 -
 -(1) Carburetor Rebuild Kit
 -Replaces Part Number: 25-757-01-S

Made to Fit Woods:
 Lawn Mower Models: K241, K301, K321, K361
 Replaces Part Number(s): 1005323, 71803

Models This Part Fits:

K361, K301, K241, K321

Additional Information:

Includes: (1) Carburetor Rebuild Kit: Not Compatible with Greater Than 10% Ethanol Fuel Replaces Part Numbers: 25 757 01-S, 25 757 01S, 25 757 01, 25 757 01-B, 25-757-01, 25-757-01-S, 25-757-01S, 275-778, 200375-S (1) Condenser: Front Mount Replaces Part Numbers: 230722, 230722-S (1) Spark Plug: 14mm Thread Replaces Part Numbers: H10C, H10, 216, 215, 217, 2677, 3327 (1) Ignition Points: Includes Mounting Bracket Replaces Part Numbers: 47-150-01, 47-150-03, 47-150-035, 47 150 03, 47 150 03-S, 47 150 03-S1, 47 150 01, 47-150-03-S (1) Air Filter: Outer Diameter: 7" Inner Diameter: 5-5/8" Height: 2-1/2" Replaces Part Numbers: 47 083 03, 47 083 03-B, 47 083 03-C, 47 083 03-S, 47 083 03-S1, 47 883 03, 47 883 03-S1, 47-083-03, 47-083-03-S, 47-083-03-S1, 47-883 03-S1, 47-883-03-S1 (1) Pre-Filter: Length: 10-1/2" Width: 2-3/8" Replaces Part Numbers: 24-083-02-S, 24 083 02-S, 24 083 02, 24 083 02BP

Reference Numbers:

1005323, 71803
