1 Seat shock Fits FARMALL Models 200 230 300 350 400 450 C H M

Name: 1 Seat shock Fits FARMALL Models 200 230 300 350 400 450 C H M
SKU: SEN10-0005_4
Price: 63.0 USD
Availability: InStock

1 Seat shock Fits FARMALL Models 200 230 300 350 400 450 C H M

$63.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

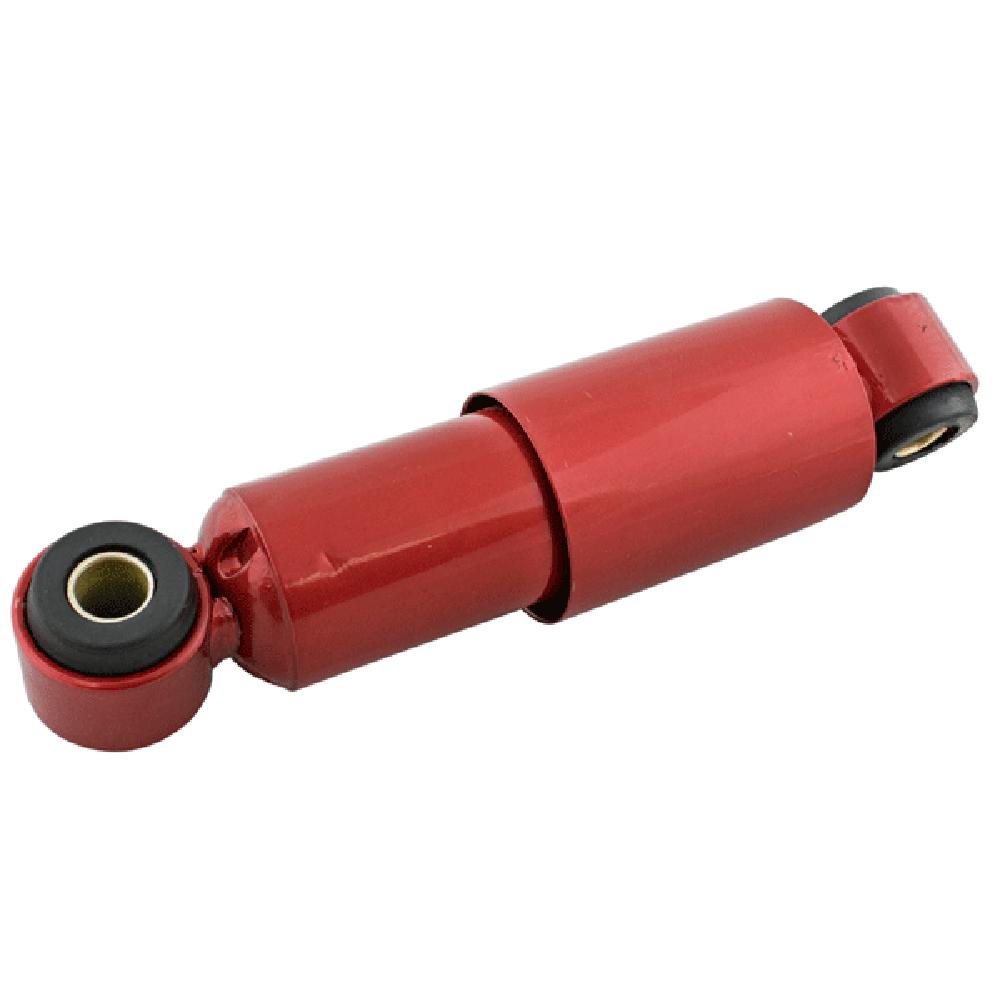

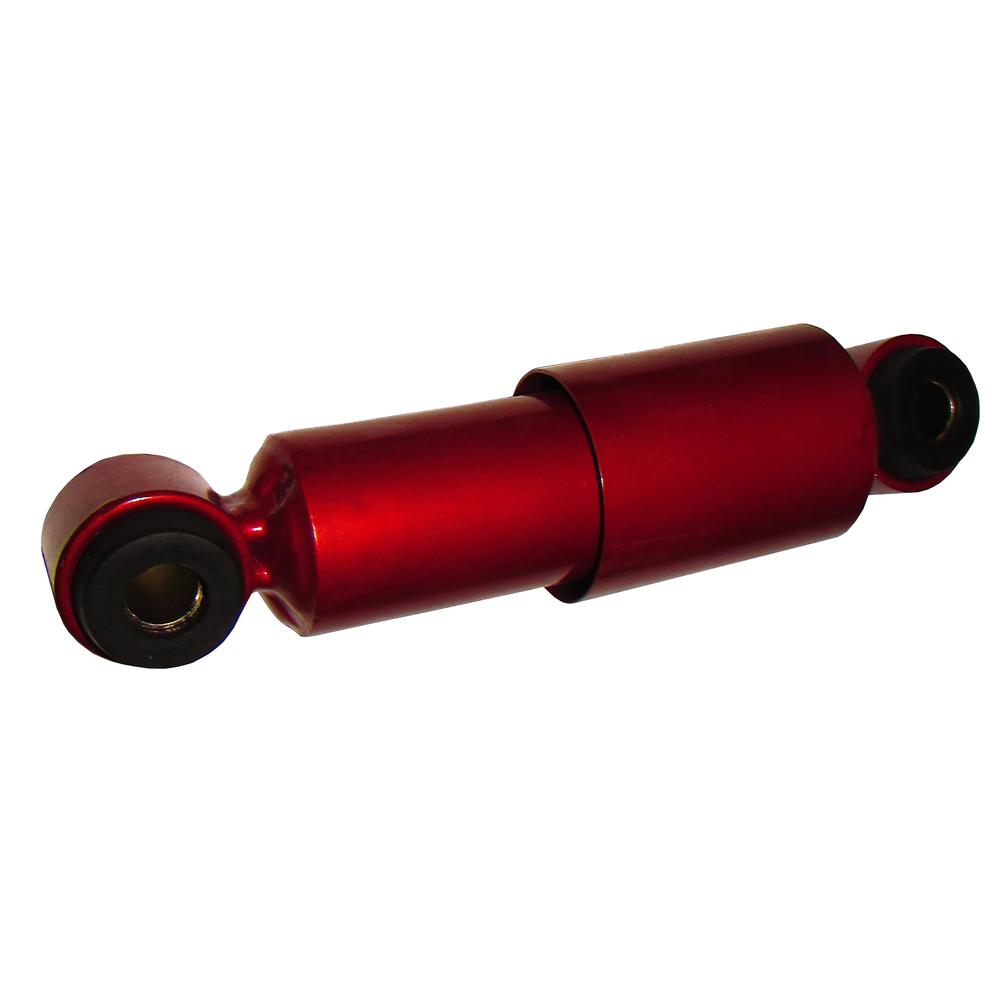

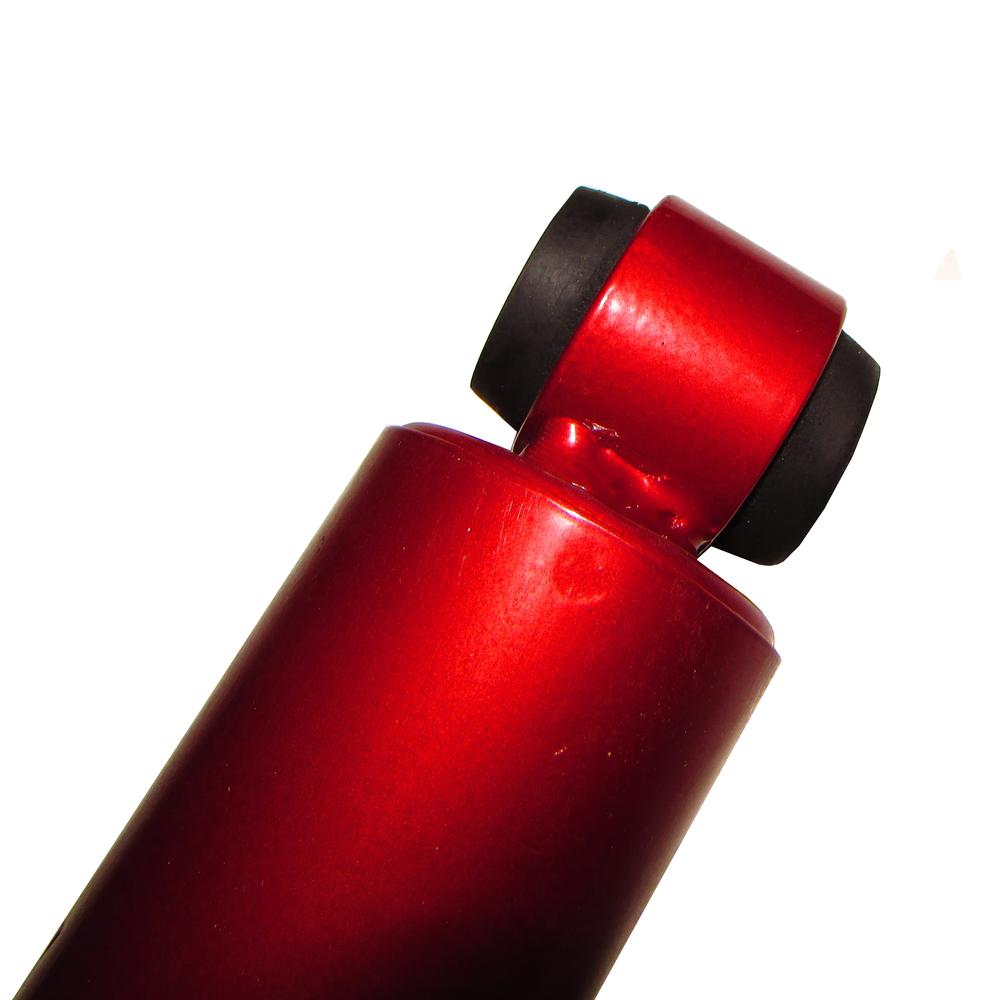

One New Aftermarket Replacement Seat Shock Absorber fits:

Fits Allis Chalmers: B C CA RC U WC WF (when equipped with an optional Monroe Easy Ride seat)
Fits Ford (Replaces: 231239) Models: 8N, NAA/Jubilee
Fits IH Fits FARMALL: B BN (when equipped with an optional Monroe Easy Ride seat), C HV MTA Super C Super H Super M Super MD Super W6 Super W6TA (SN: 10001 & up) 200 230 400 450 460(SOME), 560 600 650 660
Fits FARMALL Rowcrop: 300 350
Wheatland: 400 450 (Replaces: 351750R93, 361033R91)
Fits Massey Harris: Mustang (23) (with VELVET RIDE SEAT), 22(Late), 30 33 333 44 444 55 555

Center to Center Compressed - 7-1/4"
Fully Extended - 9-1/8"
One Horizontal Bolt Hole at Each End
Includes Rubber Bushings (& Metal bushing which may have to be removed for Some applications)
Primer Paint

Replaces Part Number: SEN10-0005, 361033R91, 351750R93, 23123

Models This Part Fits:

Super W6TA, 400, CA, 444, 350, 650, 230, Super M, W400, WC, 600, 44, Super C, 200, WF, 30, 450, RC, BN, W450, 460, Super H, Super MDTA, 560, 22 Late, U, B, C, 55, 333, 660, HV, 22, M, Super MTA, 300, Super MD, Mustang (23), 33, 555

Additional Information:

7-1/4" center to center compressed 9-1/8" fully extended .514" diameter mounting bolt hole .625" diameter hole with sleeve removed. Mounts at the front of the seat frame. Includes rubber bushings and metal bushings. The metal bushings may need to be removed for some applications. Primer paint finish only, intended to prohibit rust
