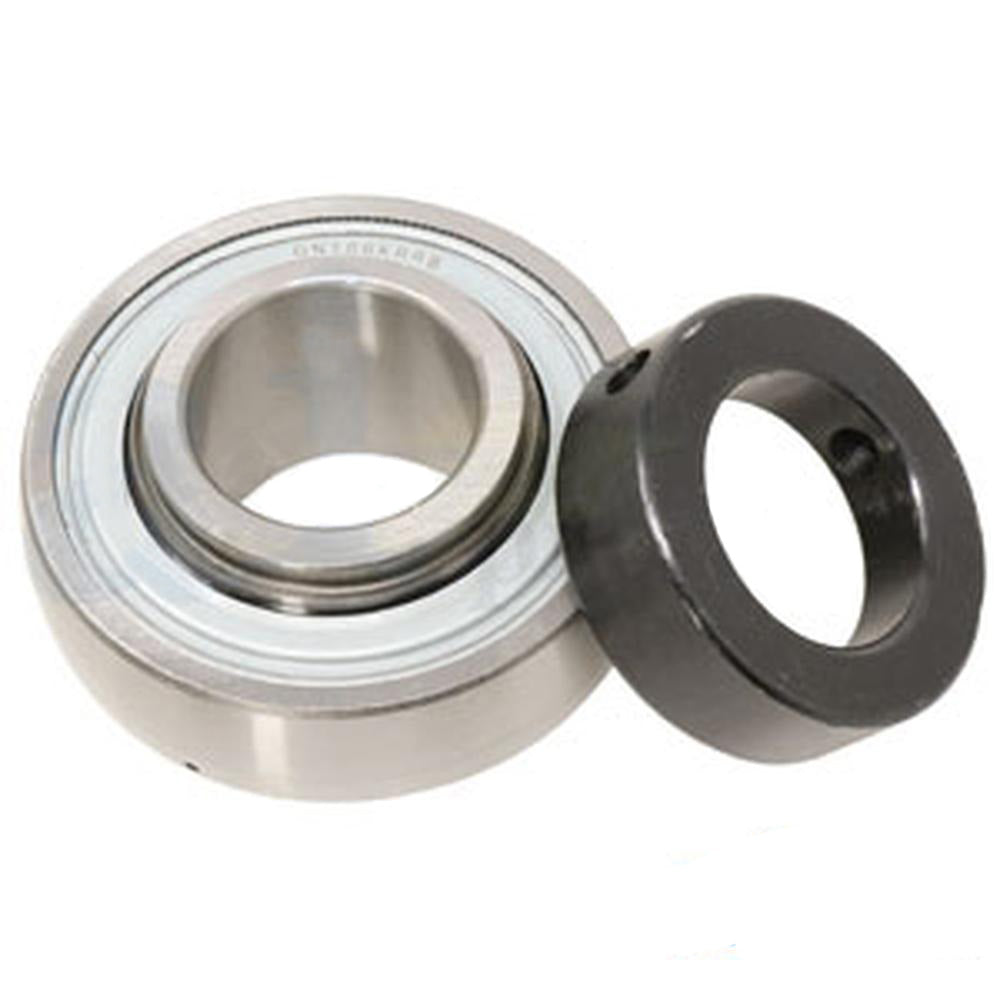

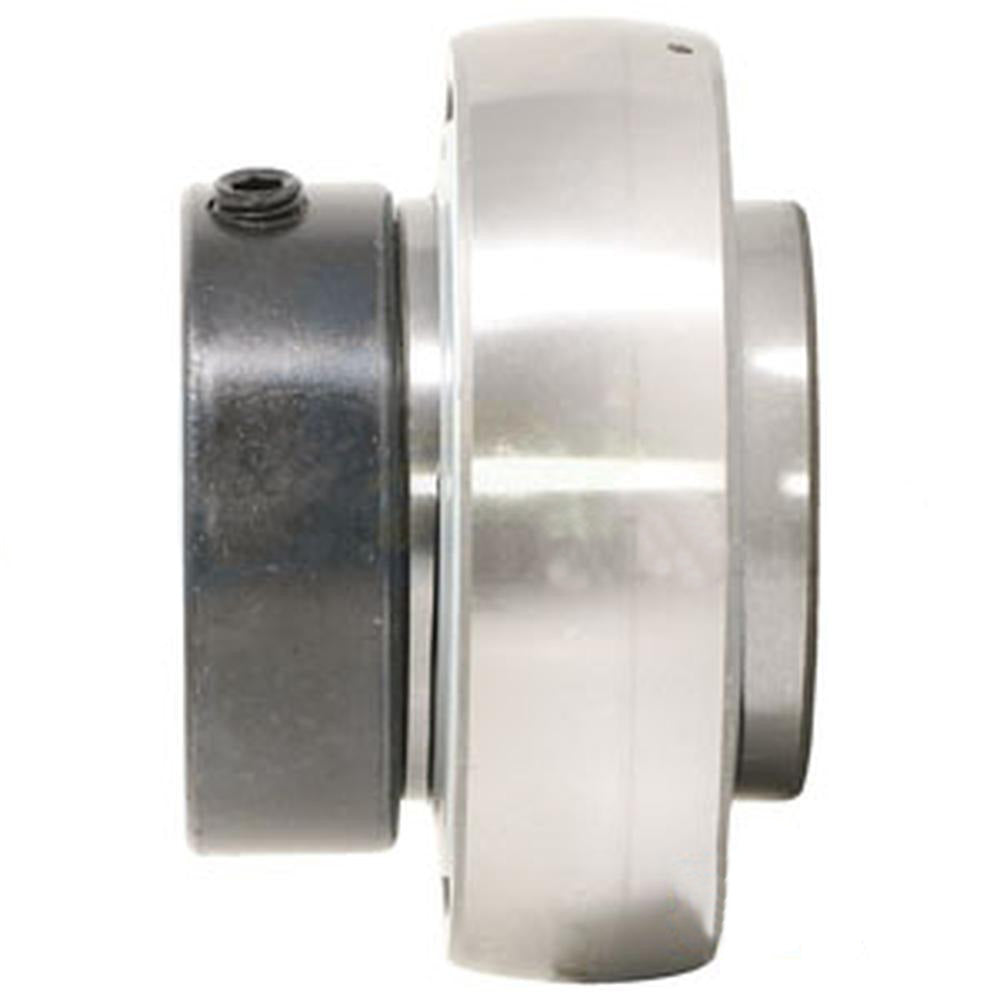

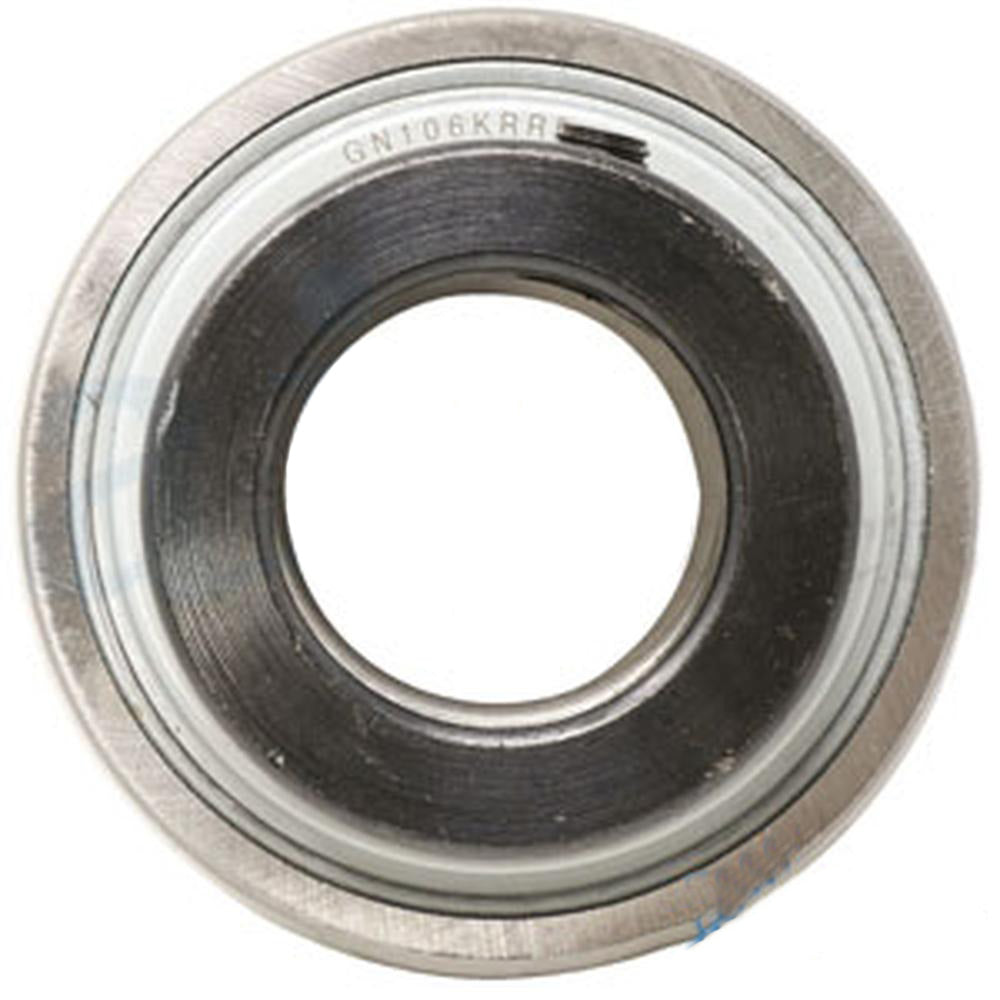

1-3/8" Insert Bearing With Lock Collar GN106KRRB, WP66497, 184647C91, 86575514

One New Aftermarket Replacement 1-3/8" Insert Bearing with Lock Collar for Ford/New Holland (CNH) Disc Mowers and Mower Conditioners

This heavy-duty 1-3/8" insert ball bearing with eccentric locking collar is a direct replacement for Ford/New Holland (CNH) disc mowers, discbines, and haybines. Featuring a heavier-section 300-series bearing and a thick contact-type diaphragm seal, the GN-KRRB series is engineered to retain lubrication and exclude dirt and contaminants, making it especially effective under continuous, heavy, or shock loads in field conditions. The Timken/Fafnir GN106KRRB is the industry-standard interchange for this bearing.

Specifications

• Inside Diameter (I.D.): 1-3/8" (34 mm)
• Outside Diameter (O.D.): 80 mm (3.15")
• Inner Ring Width (with Collar): 2.03" (51.5 mm)
• Outer Ring Width: 0.87" (22 mm)
• Locking Type: Eccentric collar
• Seal Type: Double sealed (contact/diaphragm)
• Regreasable: Yes
• Material: Hardened steel

Compatible Models

Ford/New Holland Disc Mowers and Discbines: 1409, 1410, 1411, 1412, 1431, 1441, 1465, H7220, H7230, H7320, H7330, H7450, H7460

New Holland Haybines and Mower Conditioners: 499, 415, 12HS, 14HS, 16HS, 18HS, 2300H, 2331, 2353, 2355, 2358, 720HD, 720TD, 750HD, 1114

Case/IH Mower Conditioners: DCX91, HDX122, HDX142, HDX162, HDX182, RD132, RD162, RD182, RDX131, RDX181

John Deere Manure Spreaders: 872, 874, 876

Replaces Part Number(s):

86575514, 184647C91, WP66497, GN106KRRB, 45392, 66497, 80045392, 80066497, 80601854, 80609150, 86533335, 601854, 609150, B92630

Aftermarket Interchange Numbers

Timken/Fafnir: GN106KRRB | BCA/NTN: WPSH106RRC

New aftermarket replacement part - not remanufactured, not used.
