0S1576 Cap Screw Fits Caterpillar Models
0S1576 Cap Screw Fits Caterpillar Models
Couldn't load pickup availability

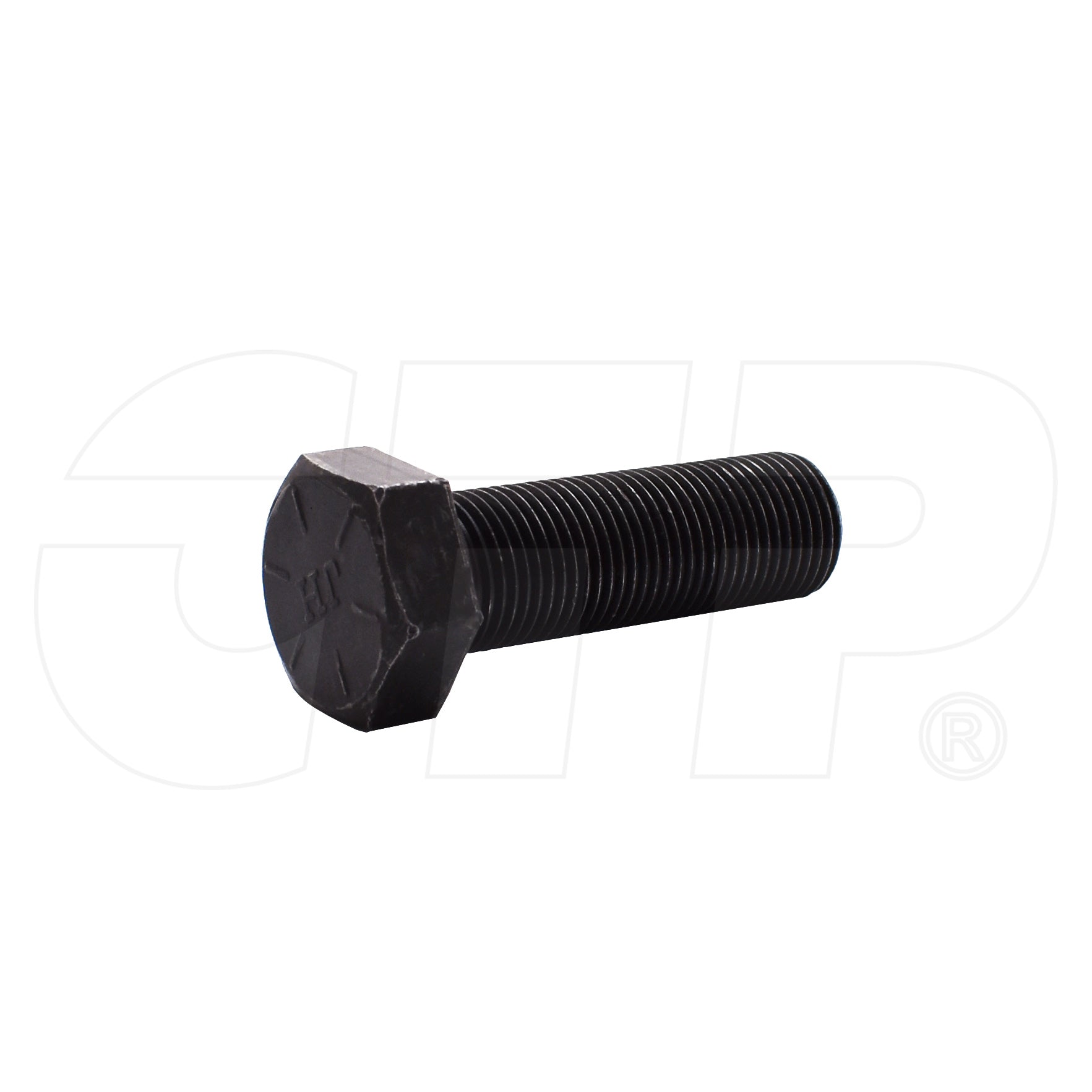

One New Aftermarket Replacement Cap Screw (Bolt) for Caterpillar (Cat) Equipment
This aftermarket replacement hex head cap screw (bolt) replaces Caterpillar (Cat) OEM part number 0S1576 (also referenced as 0S-1576). It is a phosphate and oil coated fine-thread UNF hex head bolt used across a wide range of Caterpillar construction equipment, articulated dump trucks, motor graders, and Challenger agricultural machines.
Specifications
- Part Type: Hex Head Cap Screw / Bolt
- Thread: Fine Thread UNF
- Thread Size: 5/8 - 18
- Total Bolt Length: 2 in.
- Grip Length: 0.50 in.
- Head Height: 0.48 in.
- Head Width (across flats): 0.94 in.
- Finish: Phosphate and Oil Coated
Compatible Models
Caterpillar Motor Graders: 12E, 12G, 12H, 12H ES, 12H NA, 14G, 14H NA, 117, 118, 119, 120B, 120G, 127, 128, 129, 130G, 140B, 140G, 140H, 140H ES, 140H NA, 143H, 160G, 160H, 160H ES, 160H NA, 163H NA
Caterpillar Articulated Dump Trucks: 735, 740, D350E, D400E
Caterpillar Challenger (MT Series): MT835, MT845, MT855, MT865, MTC835
Caterpillar Engines and Other Equipment: 183, 215, 235D, 1673, 1673C, 3304, 3412
Replaces Part Number(s):
0S1576, 0S-1576, 8F7498
New aftermarket replacement part - not remanufactured, not used.
